Sensor Installation and Connection 3-27

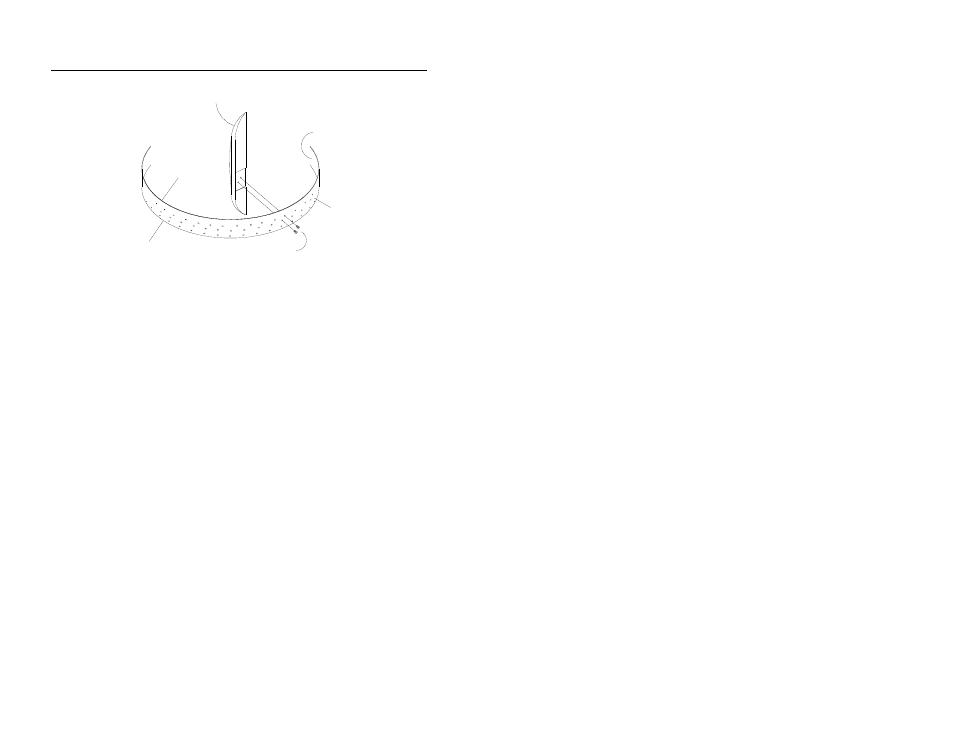

ADAPTER/SENSOR ASSEMBLY
UPSTREAM
EDGE
DOWNSTREAM
EDGE
INNER SURFACE OF
RING OR BAND
SCREWS
MOUNTING
OUTER SURFACE
OF
RING OR BAND
Securing the Peak Combo Sensor/Silt Mount Adapter assembly to the ring
2. Orient the ring so that the Surface Combo Sensor/Ultrasonic
Depth Sensor mounting plate is directly at the top. If neither a
Surface Combo Sensor nor Ultrasonic Depth Sensor will be
used at the top of the pipe, make sure the spreader assembly is
directly on top.
3. Secure the sensor cable to the ring. Refer to Securing the
Cables to the Ring on page 3-27 for instructions on properly
securing the cable.
Securing the Cables to the Ring
Securing the Peak Combo Sensor cable to the ring helps prevent
debris from collecting between the cable and the ring or catching on
the loose cable. It also prevents the loose cables from disrupting the
flow.
Secure the cable in the following way:
1. Starting at the appropriate sensor location, begin securing the
sensor cable with 4-inch (2-mm x 100-mm) cable ties through
the pre-drilled holes along the downstream trailing edge of the
ring up the side of the ring. Run the cable up the side of the
ring opposite the spreader mechanism (the right side of the
ring’s downstream edge).
