3-46 ADS TRITON+ Manual
SILT MOUNT ADAPTER
PEAK COMBO SENSOR
SCREWS THROUGH
COUNTERSUNK HOLES
SECURE SENSOR
SENSOR
SECURED TO
ADAPTER

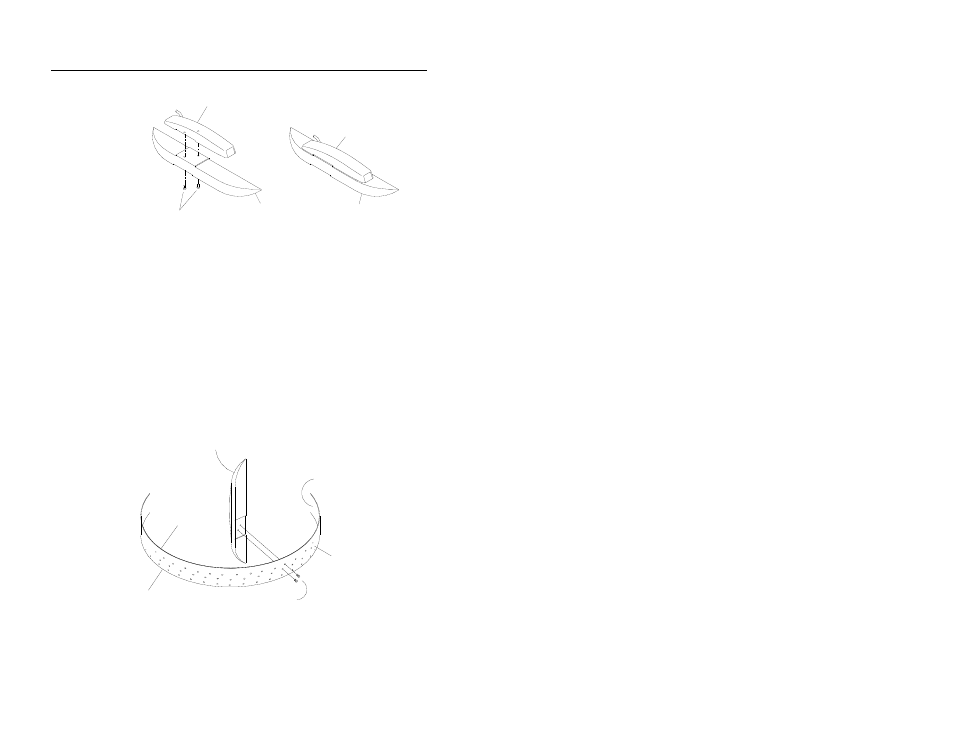

Seating and securing the Peak Combo Sensor to the Silt Mount Adapter
 Use two M3 x 10mm stainless steel flathead screws (do not
substitute any other screws) to secure the sensor/adapter
assembly to the band at the appropriate location on the
band to ensure the sensor will be positioned between 15
and 45 degrees up the left side of the pipe (6:30 to 7:30)
and below the flow surface once installed. The nose of the
sensor should be facing the same direction as the upstream
edge of the band. If mounting holes do not exist on the
band at or near the desired mounting location for the
adapter/sensor, drill holes in the band using a 7/32-inch
(3-mm) drill bit.
ADAPTER/SENSOR ASSEMBLY
UPSTREAM
EDGE
DOWNSTREAM
EDGE
INNER SURFACE OF
RING OR BAND
SCREWS
MOUNTING
OUTER SURFACE
OF
RING OR BAND
Attaching the Peak Combo Sensor/Silt Mount Adapter assembly to the band
