Gradall 544D (9136-4003) Service Manual - Manual (Page 85)

REPLACEMENT KIT (Contains all items listed below )
BONNET
SPRING
COLLAR, Spool
SCREW, HSHC 4/4-20 by 3
SEAL, O-Ring
SEAL, O-Ring
SLEEVE, Seal
HOLDER, Detent
BALL,Steel,.118 dia.
RACE, Detent
COLLAR, Spring
RING, Retaining
COLLAR, Spring
WASHER,1.12 x .88 x .05
SPACER Bonnet

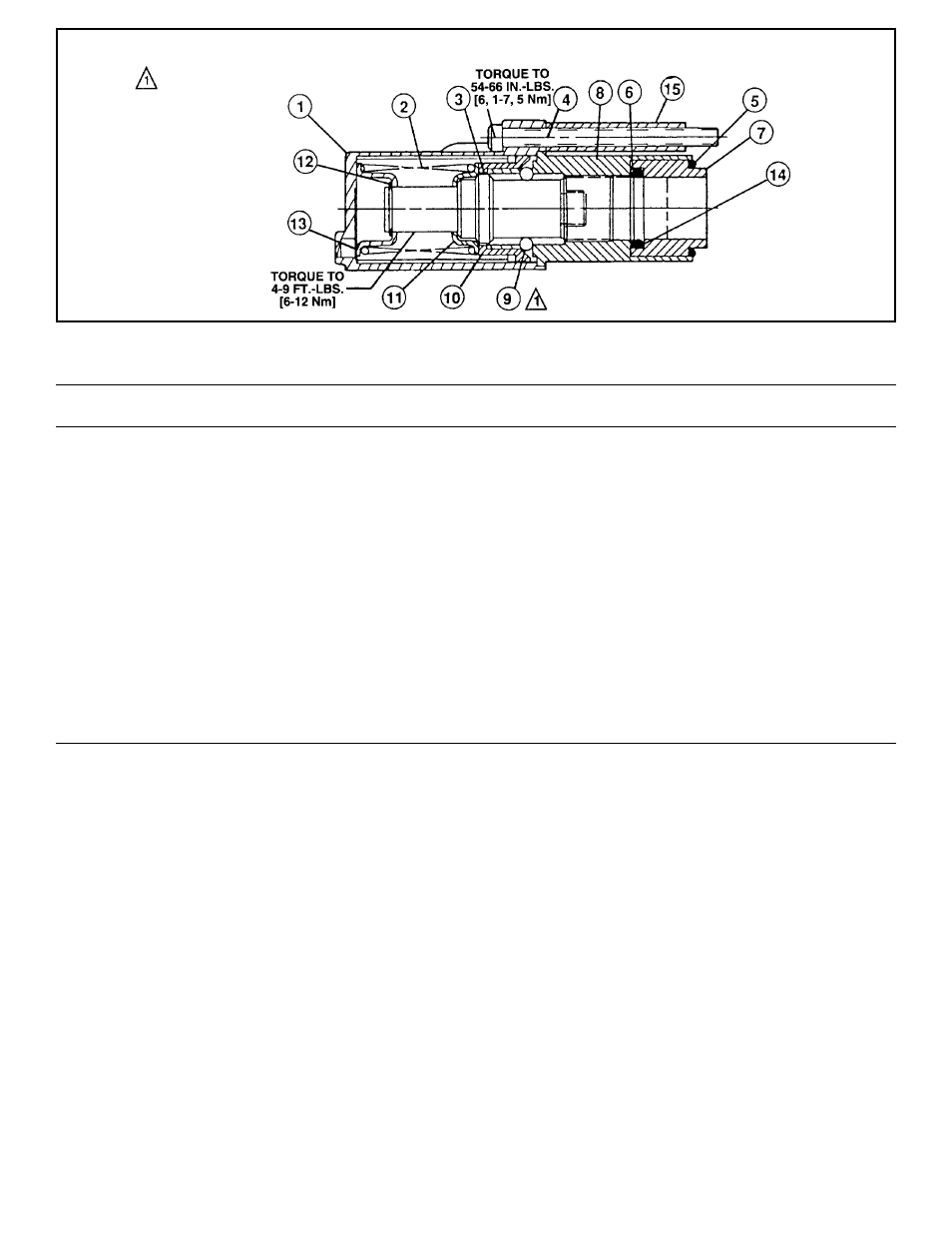

Figure 4-18. Float Positioner
FLOAT POSITIONER
Item
No. Part
No. Quantity
Per Section
Description
1
1
1
2
1
1
1
1
4
1
1
1
1
1
2
K-40007
12034-010
21641-001
20197-001
3731-110
9000-123*
20392-001*
21005-001
21003-001
1723-001
20195-001
11991-001
9335-020
11795-001
11530-001
21004-001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
*Buna-N seals are standard for all Gresen valve assemblies. For Viton seals contact the factory.
4-15
NOTE:
Assembly grease permissible in this
location only
