9.15
Stage 4

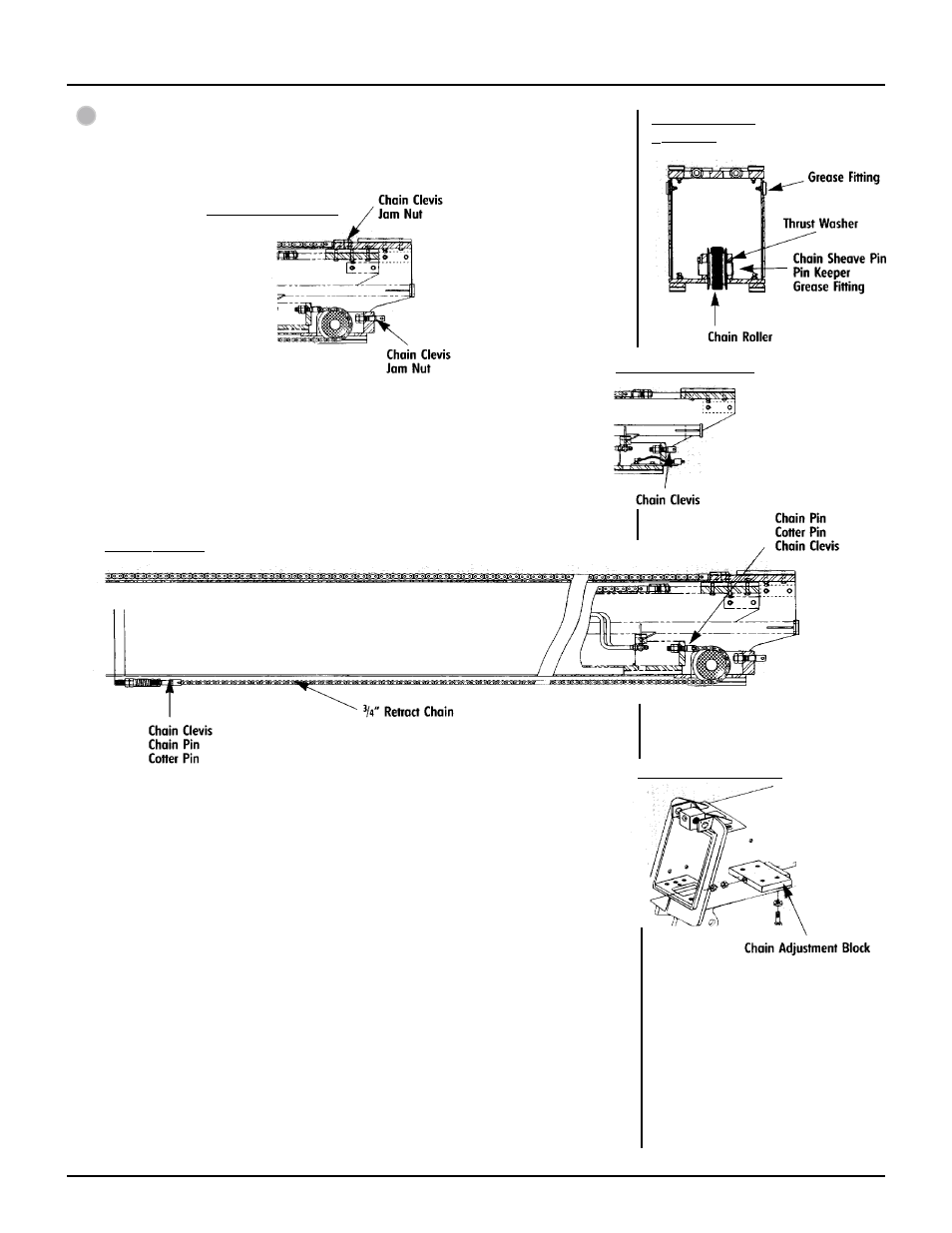

Install the grease fittings for the bearing pad and chain roller assembly.
Install the chain clevis to the rear of the boom.
R EAR, B OOM- S ECTION 3
Install the chain roller of the bottom rear of the boom.
Lay out and lubricate the 3/4" retract chain. Make sure the chain has been
inspected and meets adjustment parameters established in Section 4.
Connect the 3/4" retract chain to the clevis at the rear of boom-section 4.
B OOM- S ECTION 3
Connect the chain to the chain clevis and the clevis to the chain adjustment block.
B OOM- S ECTION 3:
R EAR V IEW
R EAR, B OOM- S ECTION 4
F RONT, B OOM- S ECTION 2
1.
2.
3.
4.
5.
6.
F ORM N O. 29702
lllll
544C/544D B OOM M AINTENANCE
→ → → → →
