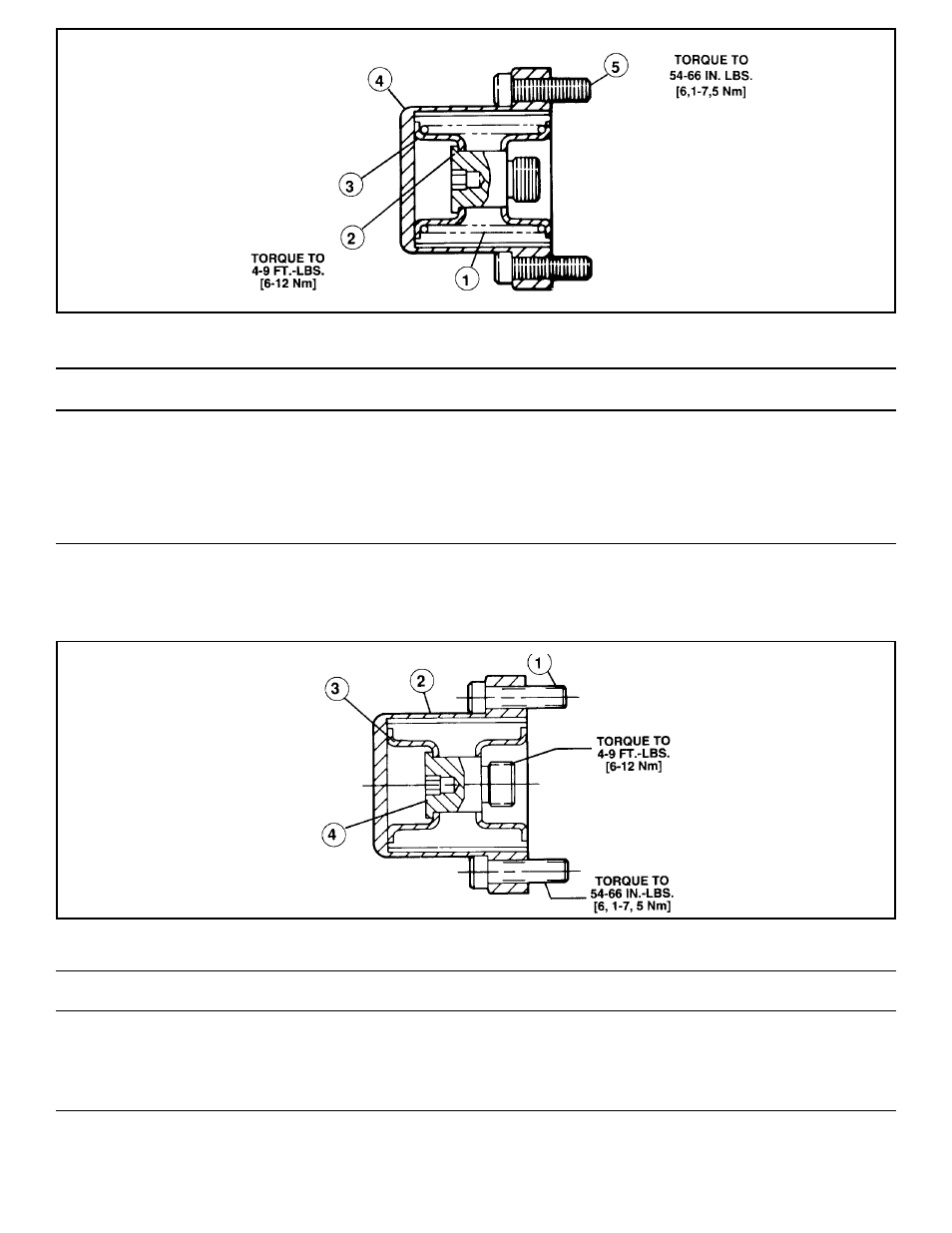

Figure 4-10. Spring Return to Neutral Positioner
SPRING RETURN TO NEUTRAL POSITIONER
Item
No. Part
No.
Description
Quality
Per Section
K-7513
1608-00
11796-00
11795-001
11793-005
3731-101
1
2
3
4
5
REPLACEMENT KIT (Contains all items listed below)
SPRING 1
COLLAR, Spool 1
COLLAR, Spring 2
BONNET 1
SCREW, HSHC, 1/4-20 by .875 long 2
1
1
2
1
2
Figure 4-11. Manual Positioner
MANUAL POSITIONER
Item
No. Part
No.
Description
Quality
Per Section
1
2
3
4 SCREW, HSHC 1/4-20
BONNET
COLLAR
COLLAR 3731-101
11793-005
11795-001
11796-001 1
1
2
1
