2.0

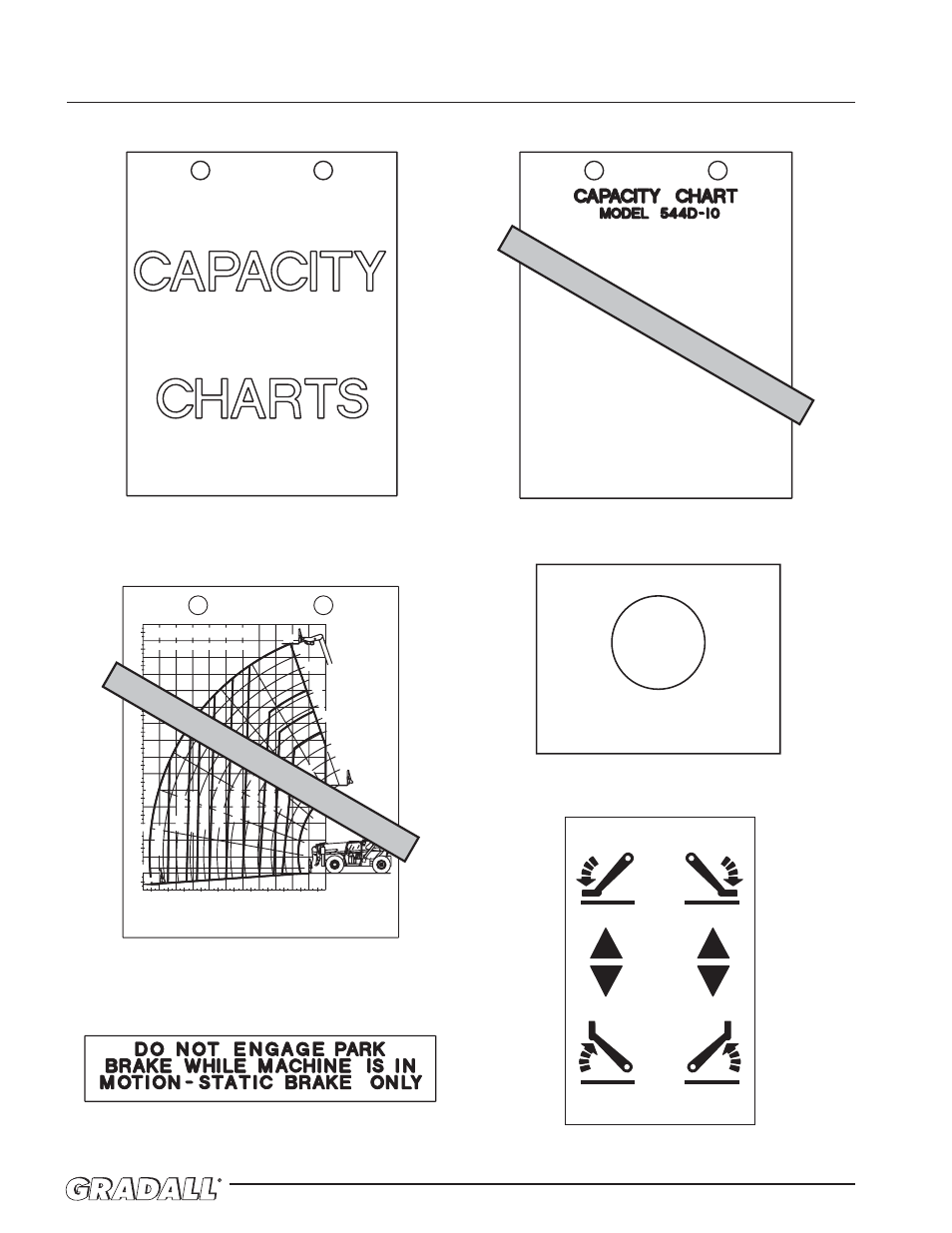

INSIDE THE CAB
DECALS
Located on dashboard
P/N 9114-3120
Located on dashboard
P/N 9116-3184
Located on dashboard
P/N 9114-3182
9116-3184 REV. A
Located on dashboard
P/N 9136-3012
Located on dashboard
P/N 9136-3013
9102-3006
Located on seat pedestal
P/N 9102-3006
MACHINE MUST BE
IN NEUTRAL AND
PARK BRAKE ON TO START
ACC
OFF
RUN
START
9136-3012 REV. A
USE CAPACITY CHART FOR SPECIFIC ATTACHMENT ON MACHINE.
FOR OTHER ATTACHMENTS CONSULT A GRADALL DEALER
FOR LOAD RATINGS NOT LISTED.
USE LARGEST NUMBER VISIBLE FROM THE CAB TO
DETERMINE BOOM EXTENSION.
MATCH WITH BOOM ANGLE TO DETERMINE ALLOWABLE LOAD.
FIGURES SHOWN ARE STACKING CAPACITY TRUCK LEVEL.
RATED LIFTING CAPACITIES SHOWN ARE WITH MACHINE ON A FIRM,
LEVEL SURFACE WITH UNDAMAGED, PROPERLY INFLATED, HYDROFILLED
(CALCIUM CHLORIDE AND WATER) TIRES.
MACHINE SPECIFICATIONS AND STABILITY ARE BASED ON RATED LIFT
CAPACITIES AT SPECIFIC BOOM ANGLES AND BOOM LENGTHS.
IF SPECIFICATIONS ARE CRITICAL, THE PROPOSED APPLICATION
SHOULD BE DISCUSSED WITH YOUR DEALER.
DO NOT EXCEED RATED LIFT CAPACITY LOADS, AS UNSTABLE AND
DANGEROUS MACHINE CONDITIONS WILL RESULT.
DO NOT TIP THE MACHINE FORWARD TO DETERMINE ALLOWABLE LOAD.
CERTAIN CARRIAGE/FORK COMBINATIONS MAY CAUSE HANDLER TO TIP
WITHOUT LOAD WHEN EXTENDED INTO "NO OPERATION" ZONE AS NOTED
ON CAPACITY CHART.
CAPACITY LIMITS FOR THIS UNIT ARE BASED IN ACCORDANCE WITH
STANDARDS LISTED ON SERIAL NUMBER PLATE.
LEVEL GRADALL HANDLER BEFORE LIFTING ABOVE 4 FT.
SAMPLE ONLY - USE CHART IN CAB
0' 4' 8' 12' 16' 20' 24' 28' 32' 36' 40' 44'
0'
-4'
4'
8'
12'
16'
20'
24'
28'
32'
36'
40'
44'
52'
56'
60'
48'
NO LIFT
1000 LBS
2000 LBS
3000 LBS
10000 LBS 8000 LBS
6000 LBS
4000 LBS
1500 LBS 500 LBS
-4°
10
9
8
7
6
5
4
3
2
1
71°
60°
50°
40°
30°
20°
10°
0°
STABILIZERS UP
RATED CAPACITY 2 FT LOAD CENTER
MODEL
544D-10
9136-3013 REV. A
USE WITH:
9045-5051 48" CARRIAGE
9045-5052 66" CARRIAGE
9055-5008 72" CARRIAGE
9116-5011 WINCH (4000 LB MAX CAP.)
SAMPLE ONLY - USE CHART IN CAB
@
9114-3182
