Chapter 6 - Parameter Description [EXT]
6-56
EXT-16: Encoder Pulse Number – Sub-B
This code sets the encoder pulse per rotation of encoder.
EXT-17: Filtering Time Constant for Pulse Input
Signal – Sub-B
This is the filtering time constant of pulse input signal. This
is used to make the inverter respond slowly to the pulse
input signal when the EXT-14 is set to ‘Reference’.
EXT-18 ~ EXT-21: Pulse Input Signal Adjustment –
Sub-B
This is used to adjust the pulse input signal when the pulse
input through Sub-B board references the frequency. This
function is applied when EXT-14 is set to ‘Reference’.
Reference Frequency versus Analog Voltage Input Curve
can be made by four parameters of EXT-18 ~ EXT-21.
This is the minimum pulse frequency at which the inverter
outputs minimum frequency.
This is the minimum frequency the inverter outputs when
there is the minimum pulse frequency (EXT-18).
This is the maximum pulse frequency at which the inverter
outputs maximum frequency.
This is the maximum frequency the inverter outputs when
there is the maximum pulse frequency (EXT-20).

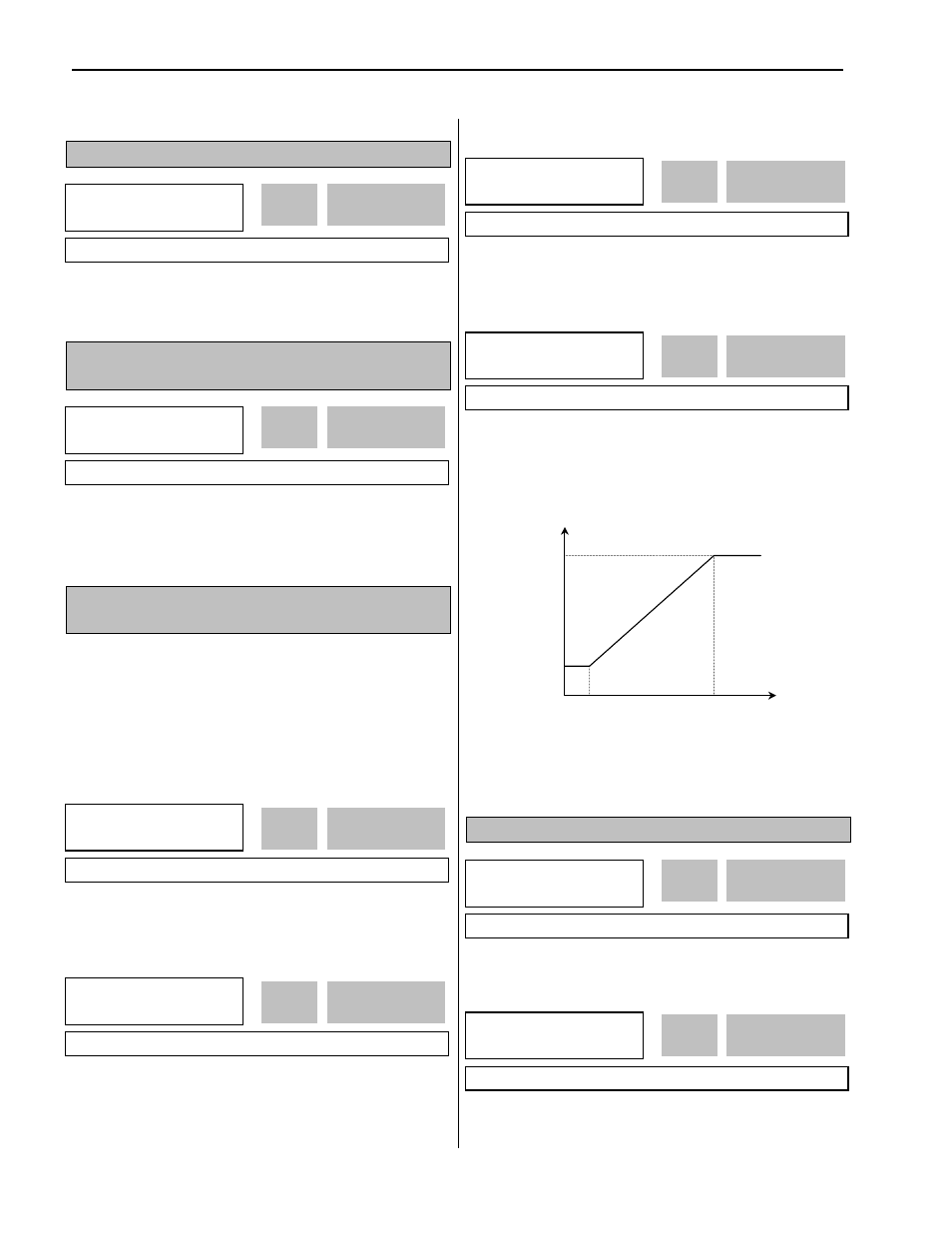

[Reference Frequency vs. Pulse Input]
EXT-22 ~ EXT-23: Gains for ‘Sub-B’ Board
This is the proportional gain when the EXT-14 is set to
‘Feed-back’.
This is the integral gain when the EXT-14 is set to ‘Feed-
back’.
EXT
► F pulse num
16 1024
1024 16
Factory Default: 1024 1024
EXT
► F filter
17 10 ms
10 17
Factory Default:
10 ms
10
EXT ► F pulse x1
18 0.0 kHz
0.0 18
Factory Default:
0.0 kHz
0.0
EXT
► F freq y1
19 0.00 Hz
0.00 19
Factory Default:
0.00 Hz
0.00
EXT ► F pulse x2
20 10.0 kHz
10.0 20
Factory Default:
10.0 kHz
10.0
EXT
► F freq y2
21 60.00 Hz
60.00 21
Factory Default:
60.00 Hz
60.00
EXT ► PG P-gain
22 3000
3000 22
Factory Default:
3000
3000
EXT
► PG I-gain
23 300
300 23
Factory Default:
300
300
Reference Frequency
EXT-21
Pulse Input
(0 to 10 kHz)
EXT-19
EXT-18 EXT-20
