Chapter 6 - Parameter Description [I/O]
6-46

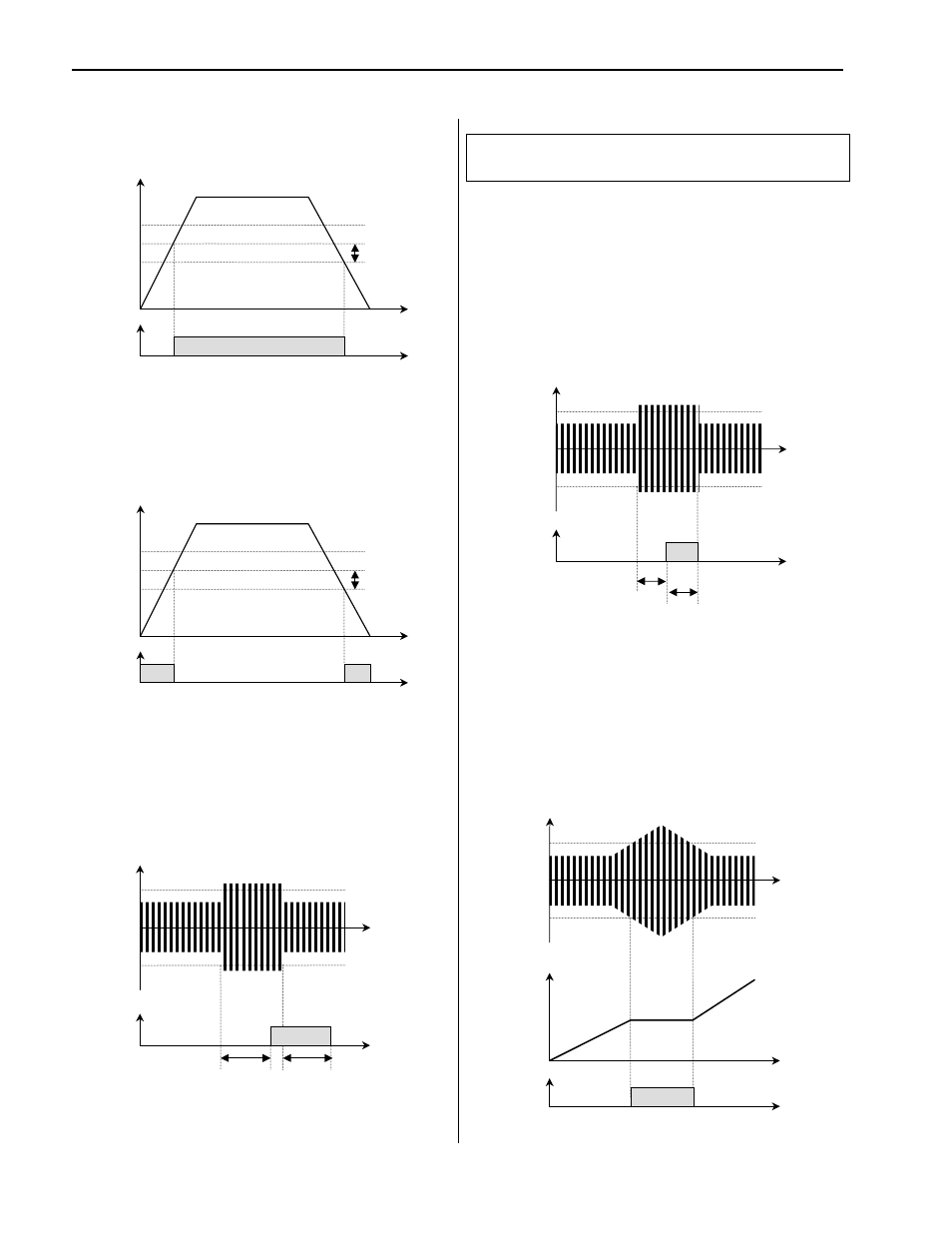

[AXA-AXC configured as ‘FDT-4’]
[FDT-5]
This is the inverted output of [FDT-4].
[AXA-AXC configured as ‘FDT-5’]
[OL]
AXA-AXC is CLOSED when the output current has
reached the FU1-54 [Overload Warning Level] for the FU1-
55 [Overload Warning Time].
[[AXA-AXC configured as ‘OL’]
[IOL]
AXA-AXC is CLOSED when the output current is above
the 150% of rated inverter current for 36 seconds. If this
situation is continued for one minute, the inverter will cut
off its output and displays ‘IOL’ (Inverter overload) Trip.
See the nameplate for the rated inverter current.
[AXA-AXC configured as ‘IOL’]
[Stall]
AXA-AXC is CLOSED when the inverter is on the stall
prevention mode.
[AXA-AXC configured as ‘Stall’]
AXA-AXC
Output Frequency
Time
Time
I/O-43 / 2
CLOSED
I/O-42
AXA-AXC
Output Frequency
Time
Time
I/O-43 / 2
ON
I/O-42
ON
Related Functions: FU1-54 [Overload Warning Level]
FU1-55 [Overload Warning Time]
t1: FU1-55 [Overload Warning Time]
Output Current
Time
Time
FU1-54
[OL level]
FU1-54
[OL level]
AXA-AXC ON
t1 t1
Output Current
Time
Time
150% of Rated
Inverter Current
AXA-AXC ON
36sec
150% of Rated
Inverter Current
24sec
Output Current
Time
Output Frequency
Time
FU1-60
[Stall Level]
FU1-60
[Stall Level]
Time
CLOSED AXA-AXC
