12 1 Introduction
1
.4 Stat
us Displa
ys

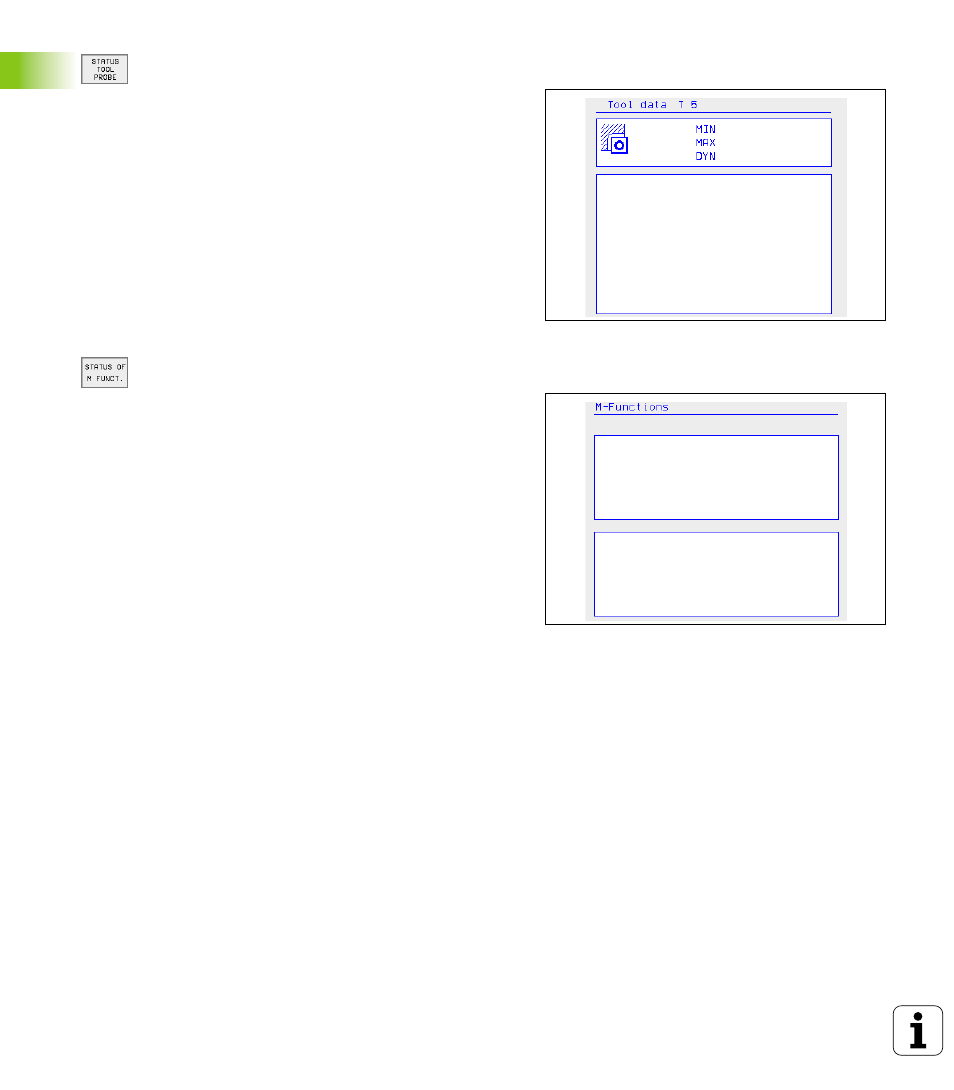

Tool measurement
Active miscellaneous functions M
2 3
4
1 1 Number of the tool to be measured
2 Display whether the tool radius or the tool length is being
measured
3 MIN and MAX values of the individual cutting edges and the
result of measuring the rotating tool (DYN = dynamic
measurement)
4 Cutting edge number with the corresponding measured value. If
the measured value is followed by an asterisk, the allowable
tolerance in the tool table was exceeded
1
2
1 List of the active M functions with fixed meaning.
2 List of the active M functions with function assigned by machine
manufacturer.
