326 8 Programming: Cycles
8.8
Coor
di
na
te T
ra
n
s
for
m
ati
on Cy
cle
s

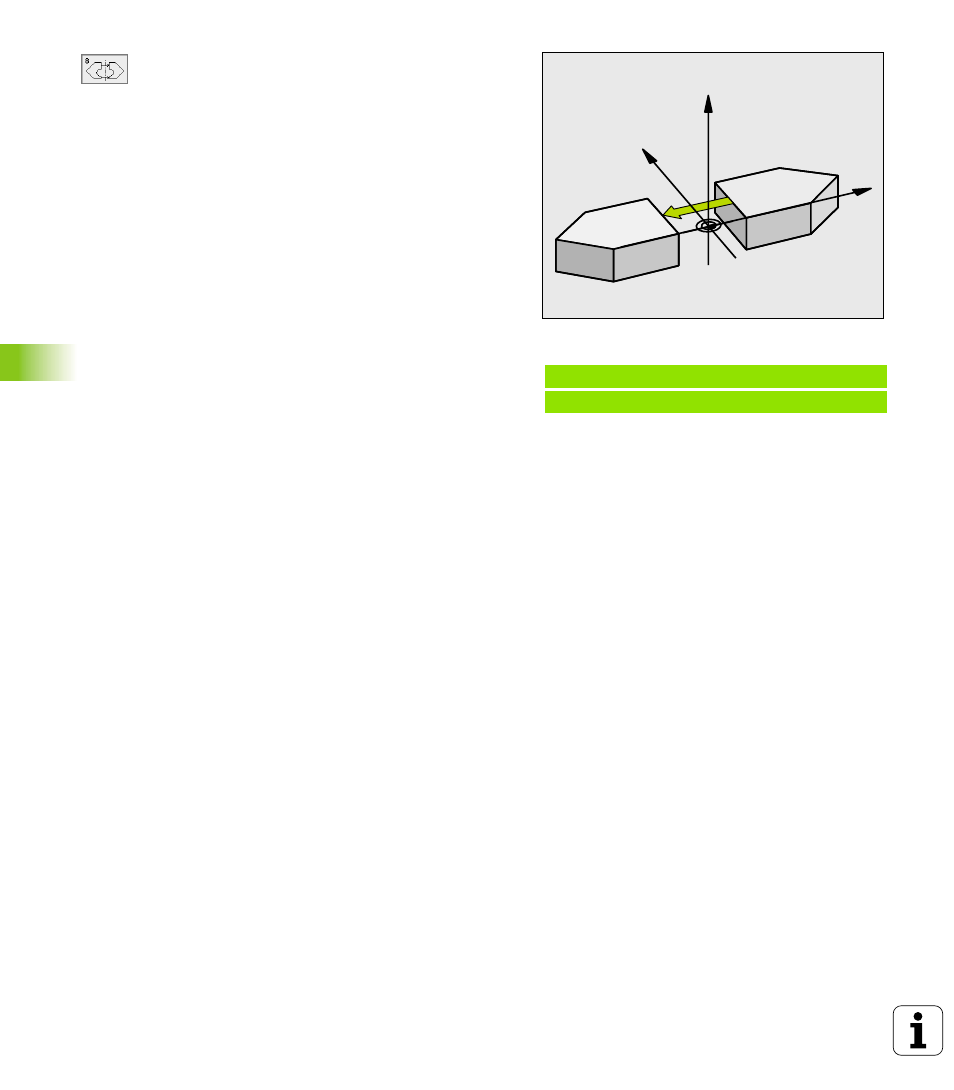

7 7 7 7 Mirrored axis? : Enter the axis to be mirrored. You can
mirror all axes, including rotary axes, except for the
spindle axis and its auxiliary axes. You can enter up to
three axes.
Reset
Program the MIRROR IMAGE cycle once again with NO ENT.
Example: NC blocks
79 CYCL DEF 8.0 MIRROR IMAGE
80 CYCL DEF 8.1 X Y U
Y
X
Z
