BrightEye NXT 410/415/430 Compact Router Installation, Configuration and Operations Guide
4. Click System Settings from the upper left part of the browser
window. The Settings window displays.

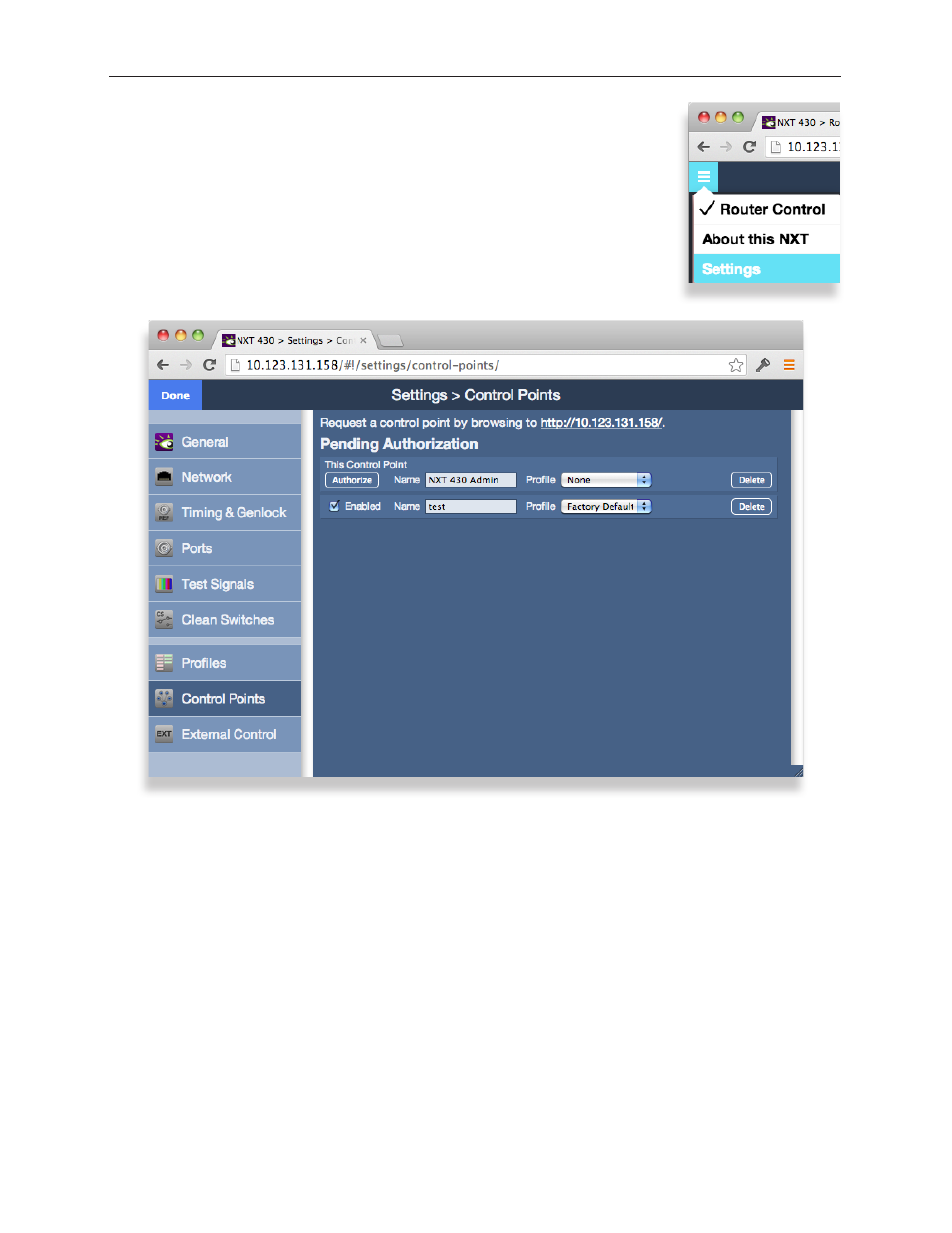

5. Click Control Points. The Settings > Control Points window
displays. The Control Point you just requested is shown.
