Genlocked to reference, Embedded audio, Output port following a clean switched destination – Ensemble Designs BrightEye NXT 410 Clean HDMI Router User Manual

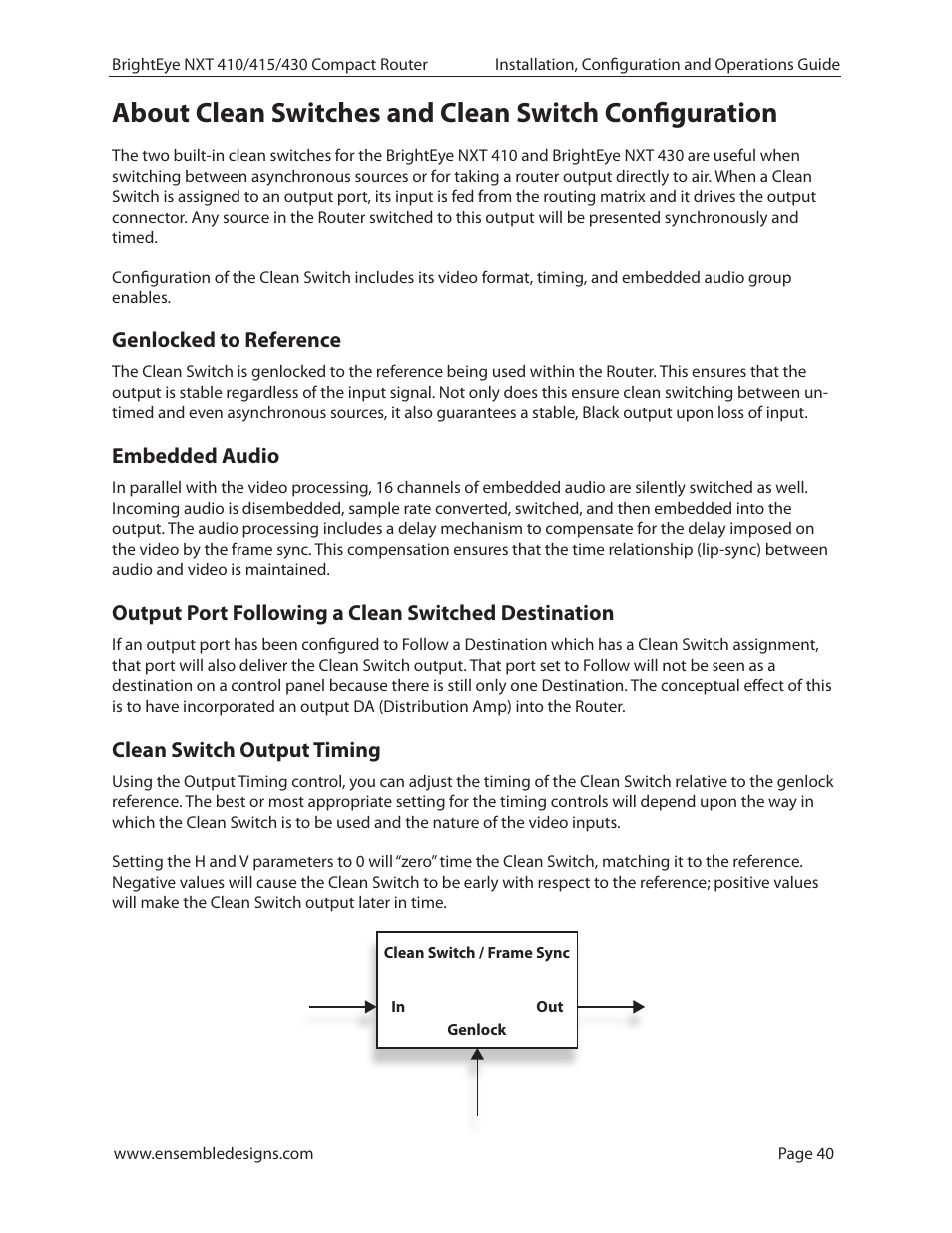

Page 40: Clean switch output timing
