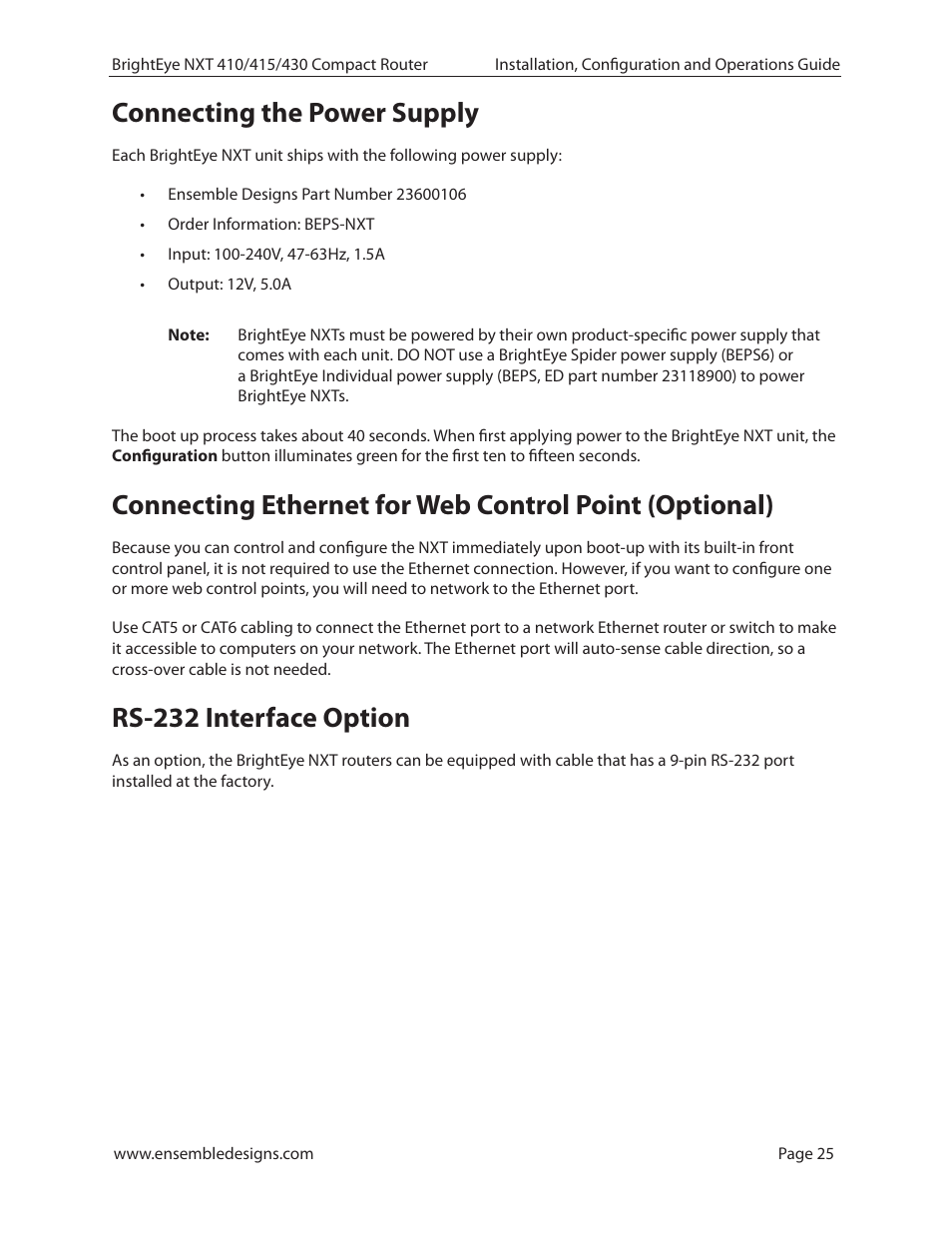

Connecting the power supply, Rs-232 interface option – Ensemble Designs BrightEye NXT 410 Clean HDMI Router User Manual
Page 25
This manual is related to the following products:
