Installing the BlackDiamond 8800 Series Chassis
BlackDiamond 8800 Series Switches Hardware Installation Guide 80

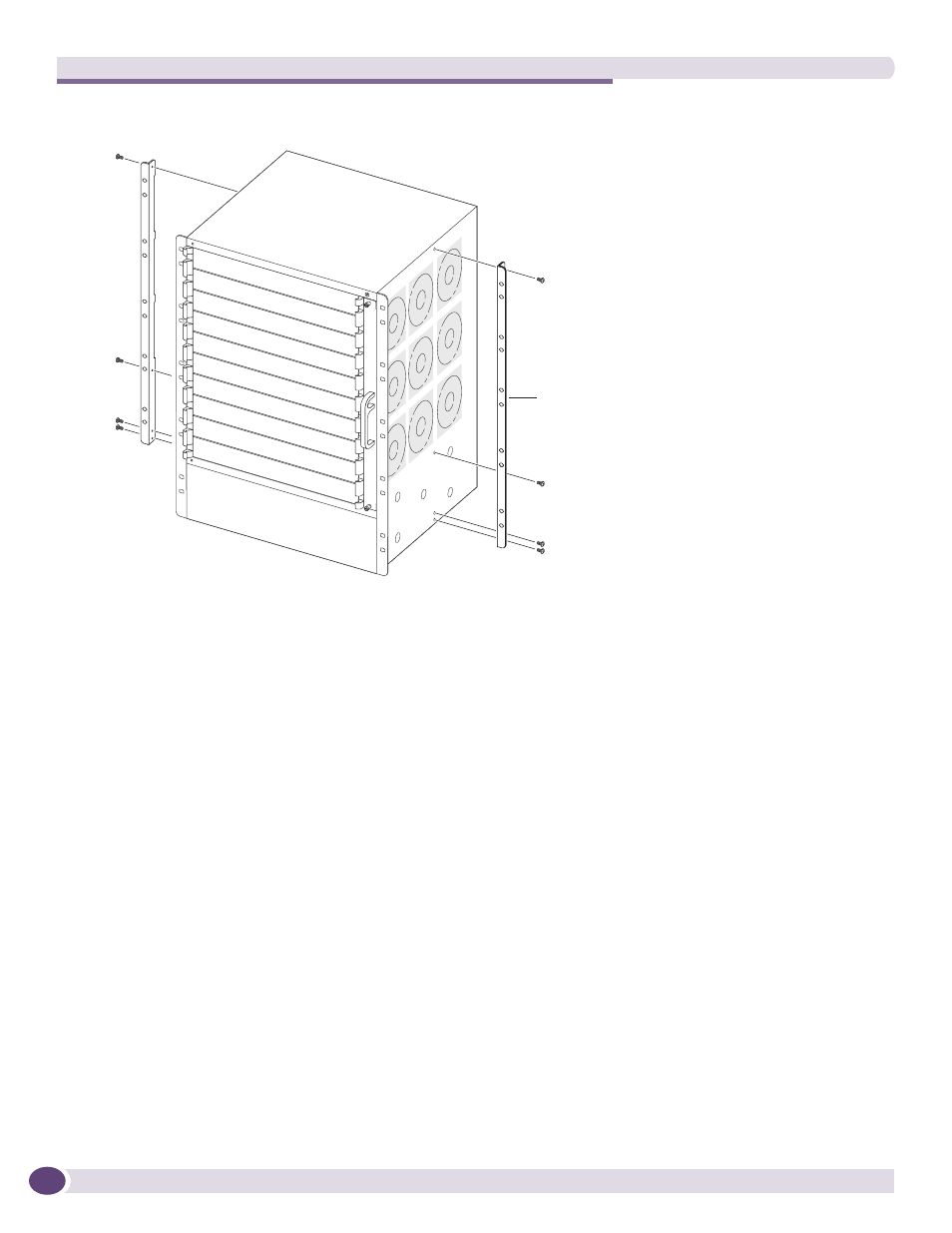

Figure 44: Attaching the Mid-mount Brackets to the BlackDiamond 8810 Chassis
Rack-Mounting the BlackDiamond 8800 Series Chassis
To mount the BlackDiamond 8800 series chassis in a rack:
1 Locate the 19-inch helper bracket that is shipped with the BlackDiamond 8800 series chassis.
2 Identify the rack location where the chassis will be installed.
3 Using four rack mounting screws, attach the helper bracket to the system rack immediately below
the chassis location (see
Figure 45 ).
You must provide the screws for attaching the helper bracket.
ASP034
Mid-Mount
Bracket
