Unpacking the BlackDiamond 8806 Chassis
BlackDiamond 8800 Series Switches Hardware Installation Guide 73

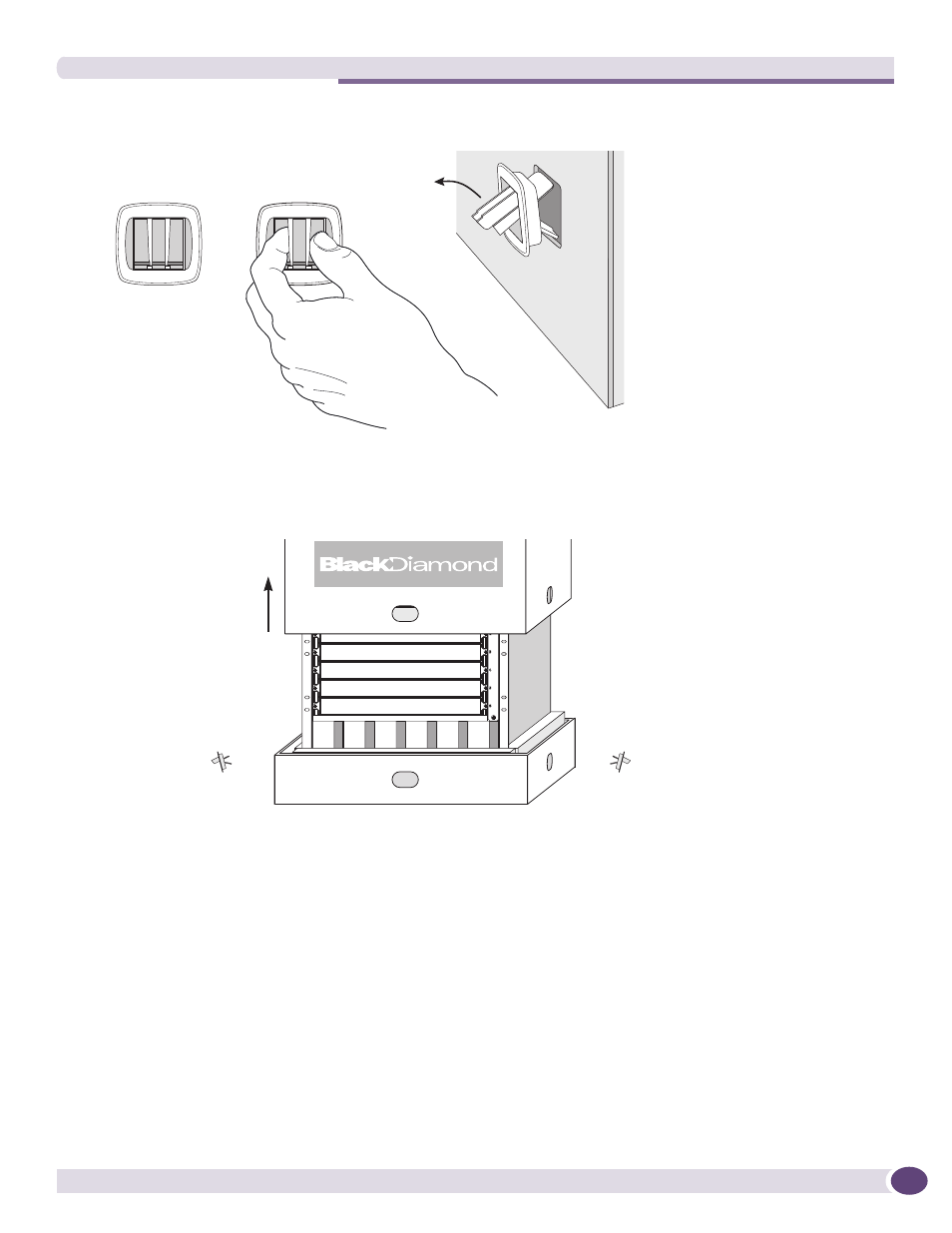

Figure 35: Clip Locks on the BlackDiamond 8806 Chassis Shipping Carton
4 Slide the shipping carton up over the BlackDiamond 8806 chassis (see Figure 36 ).
Figure 36: Removing the Carton from the BlackDiamond 8806 Chassis
5 Unwrap the chassis.
EX_111A
Clip lock
Open
lock
Squeeze prongs
to unlock
EX_120A
Lift box
off
chassis
Open & remove
4 clip locks
to free box
