BlackDiamond 8806 Switch Chassis
BlackDiamond 8800 Series Switches Hardware Installation Guide 17

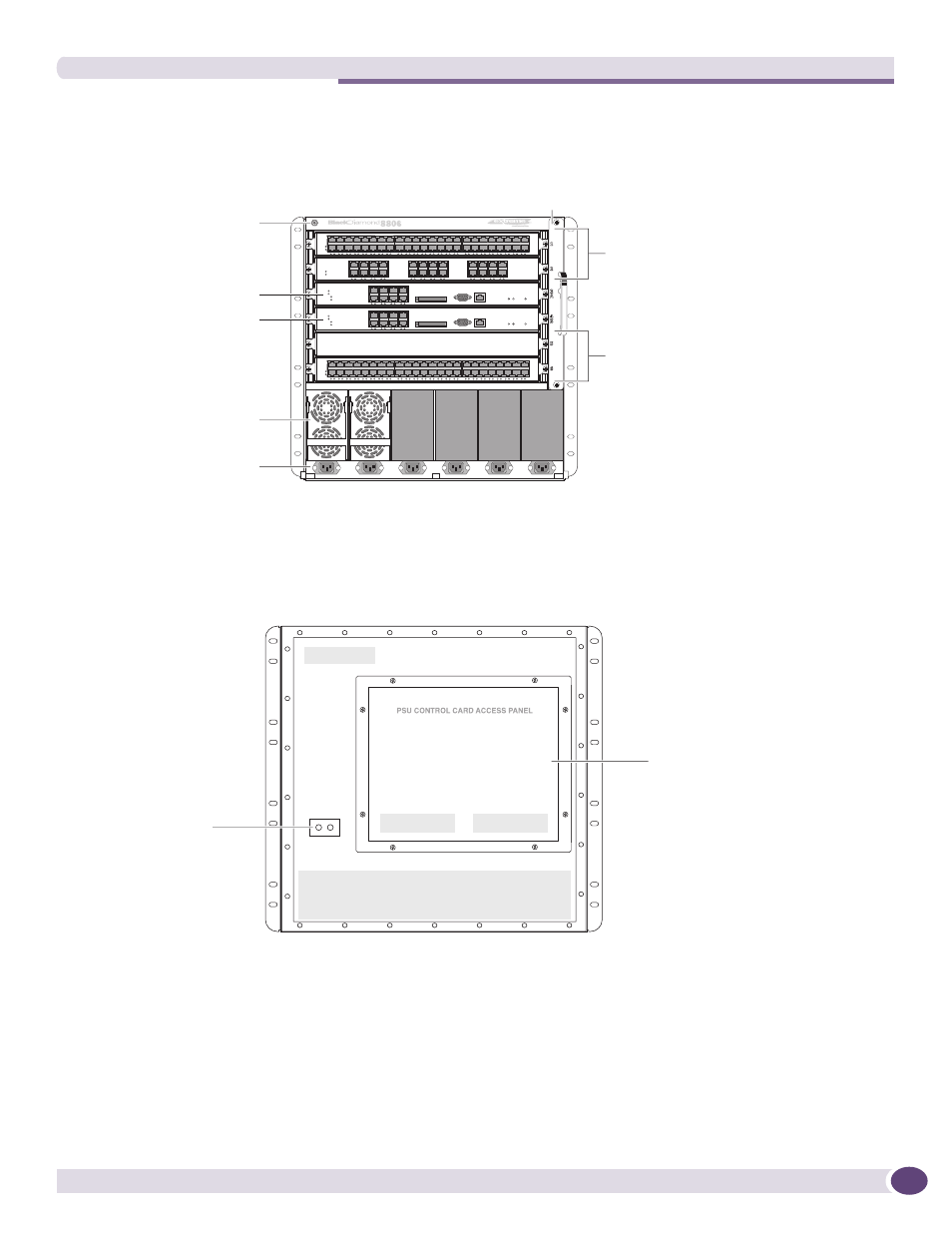

Figure 1 shows the front of a BlackDiamond 8806 chassis equipped with two MSMs and three optional
I/O modules.
Figure 1: Front of the BlackDiamond 8806 Chassis
Figure 2 shows the rear panel of the BlackDiamond 8806 chassis.
Figure 2: Rear Panel of the BlackDiamond 8806 Chassis
The rear panel of the BlackDiamond 8806 chassis provides:
● Chassis serial number
● Ethernet MAC address of the switch
● Symbols of safety certification
● Access to the PSU/fan controllers
● Attachment point for optional chassis ground
EX_127
ESD wrist strap
connector
MSM slot
Power supplies
Fan tray
I/O module
slots
Power cord
connectors
I/O module or MSM slot
I/O module
slots
EX_128A
Grounding point
PSU / fan
controllers
