Installing Modules and Establishing Initial Management Access
BlackDiamond 8800 Series Switches Hardware Installation Guide 104

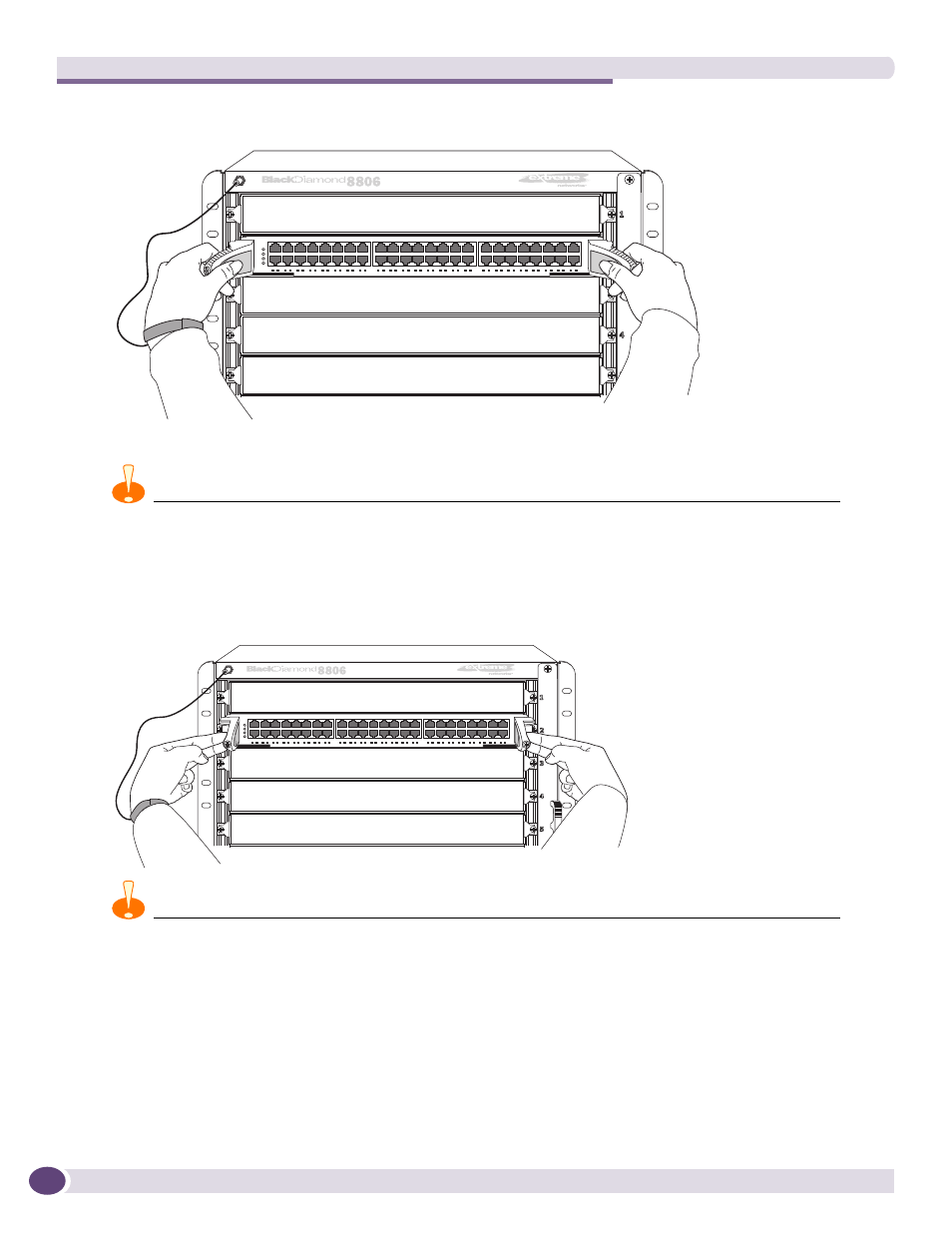

Figure 58: Injector/ejector Handles in an Open Position
6 Keep the injector/ejector handles in the open position as you slide the module into the chassis slot.
CAUTION
Do not slide the module into the open chassis slot if the injector/ejector handles are in the latched position.
7 Use both hands to latch the injector/ejector handles, by simultaneously pushing both handles
toward the center of the module, as shown in
Figure 59 .
Figure 59: Injector/ejector Handles in the Latched Position
CAUTION
There are two styles of ejector/injector handles on the BlackDiamond 8800 series modules. Pay careful attention to
the instructions in the next step.
8 Using a #2 Phillips screwdriver, lock the module into place in one of the following ways ( Figure 60 ):
EX_123
EX_124
