BlackDiamond 8800 Series Switches Hardware Installation Guide 45
Extreme Networks 600/900 W AC PSU
Figure 25 shows the Extreme Networks 600/900 W AC UL-listed accessory power supply unit (Model #
41050/ PS 2431). This power supply is compatible with the BlackDiamond 8806 switch. The power
supply bay can accommodate up to six hot-swappable Extreme Networks 600/900 W AC PSUs.

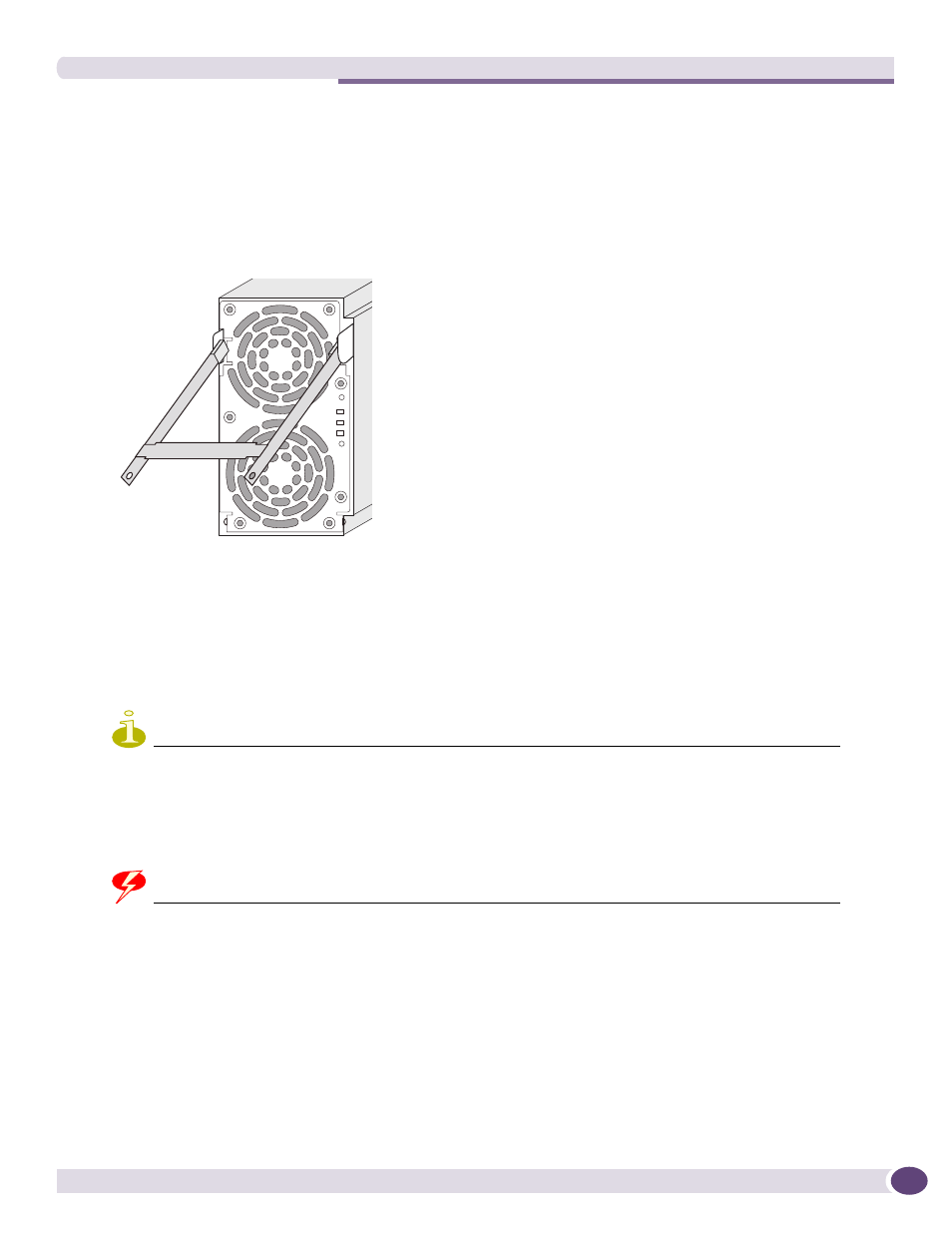

Figure 25: Extreme Networks 600/900 W AC PSU
The front panel on each Extreme Networks 600/900 W AC PSU contains two cooling fans and a handle
for insertion and removal of the unit. Airflow enters the front vents of the PSU and exits through the
rear vents of the switch. Airflow through the PSU is independent of the airflow through the rest of the
switch.
The AC input is located on the switch directly below each installed power supply.
NOTE
The Extreme Networks 600/900 W AC PSU can be used in combination with an Extreme Networks 700W/1200W
AC PSU in the same BlackDiamond 8806 system.
Extreme Networks does not recommend using the 600W/900W AC PSU in combination with an Extreme Networks
1200W DC PSU in the same BlackDiamond 8806 system.
WARNING!
Field operators must not attempt to open the 600W/900W AC PSU enclosure for any reason; the PSU does not
contain user-serviceable parts. In the event of failure, return the defective 600W/900W AC PSU to Extreme
Networks for repair or replacement.
Minimum Software Required
The MSM running in your BlackDiamond 8806 switch requires ExtremeXOS version 11.6.1 (or later) in
order to recognize an Extreme Networks 600/900 W AC PSU. In ExtremeXOS releases 11.3.4, 11.4.2, and
11.5.1, the 600/900 W AC PSU is disabled on all chassis. In ExtremeXOS releases earlier than those, the
EX_015
