BlackDiamond Cable Management
BlackDiamond 8800 Series Switches Hardware Installation Guide
134
3
Press the clips together until l the connectors lock into place (see

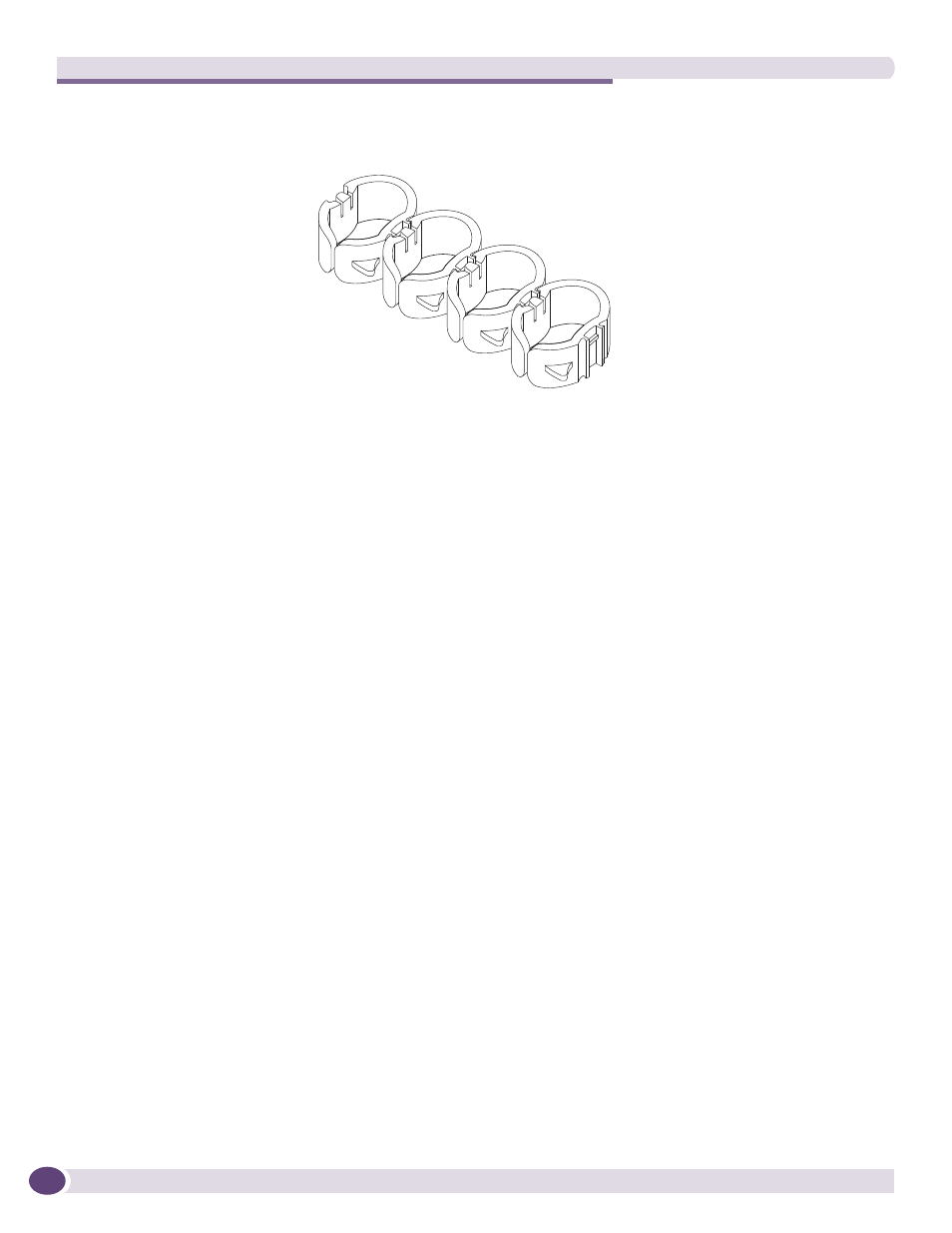

Figure 90: Cable clip chain
4
Connect as many cable clips together as you need to manage your cable bundles.
5
To disconnect the cable clips, push on the bottom ring while holding the top ring steady.
ENIN002A
