G48Xa I/O Module
The G48Xa I/O module ( Figure 13 ) has 48 1000BASE-X ports that use SPF fiber SFP connectors.

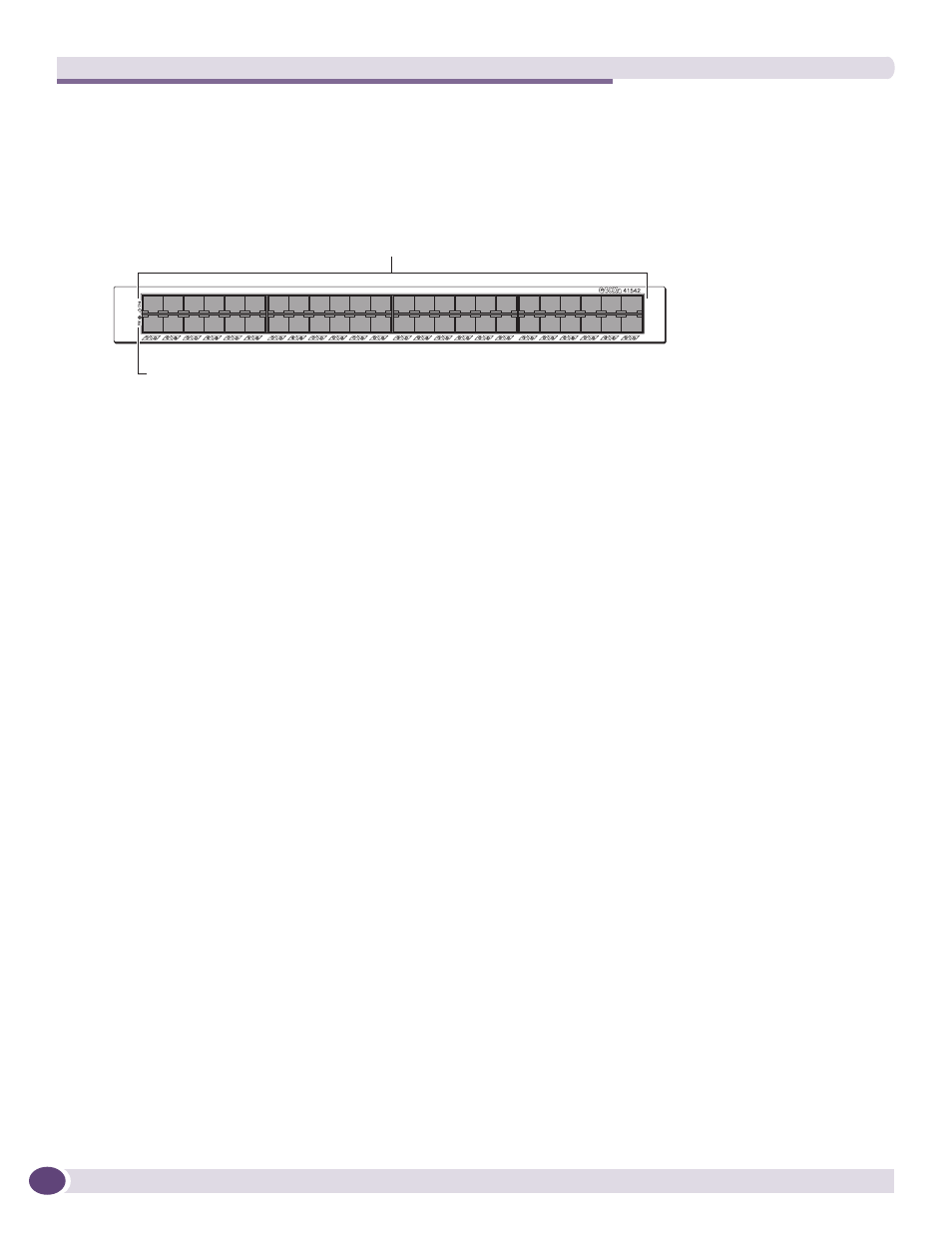

Figure 13: G48Xa I/O Module
The default configuration of the G48Xa module is as follows. All ports:
● Are added to the default VLAN as untagged
● Inherit the properties of the default VLAN (for example, protocol type and VLANid)
The G48Xa module has the following LEDs:
● Module status
● Module diagnostics
● Port status
For information about the LEDs and their activity on the G48Xa module, see “I/O Module LEDs” on
page 38 . For information about SFPs, see the Extreme Networks Pluggable Interface Modules Installation
Guide.
Module status LEDs
ASP049A
1000BASE-X
ports
