I/O Modules
BlackDiamond 8800 Series Switches Hardware Installation Guide 31
10G4Xa I/O Module
The 10G4Xa I/O module ( Figure 14 ) has four XFP-based 10-gigabit Ethernet ports.

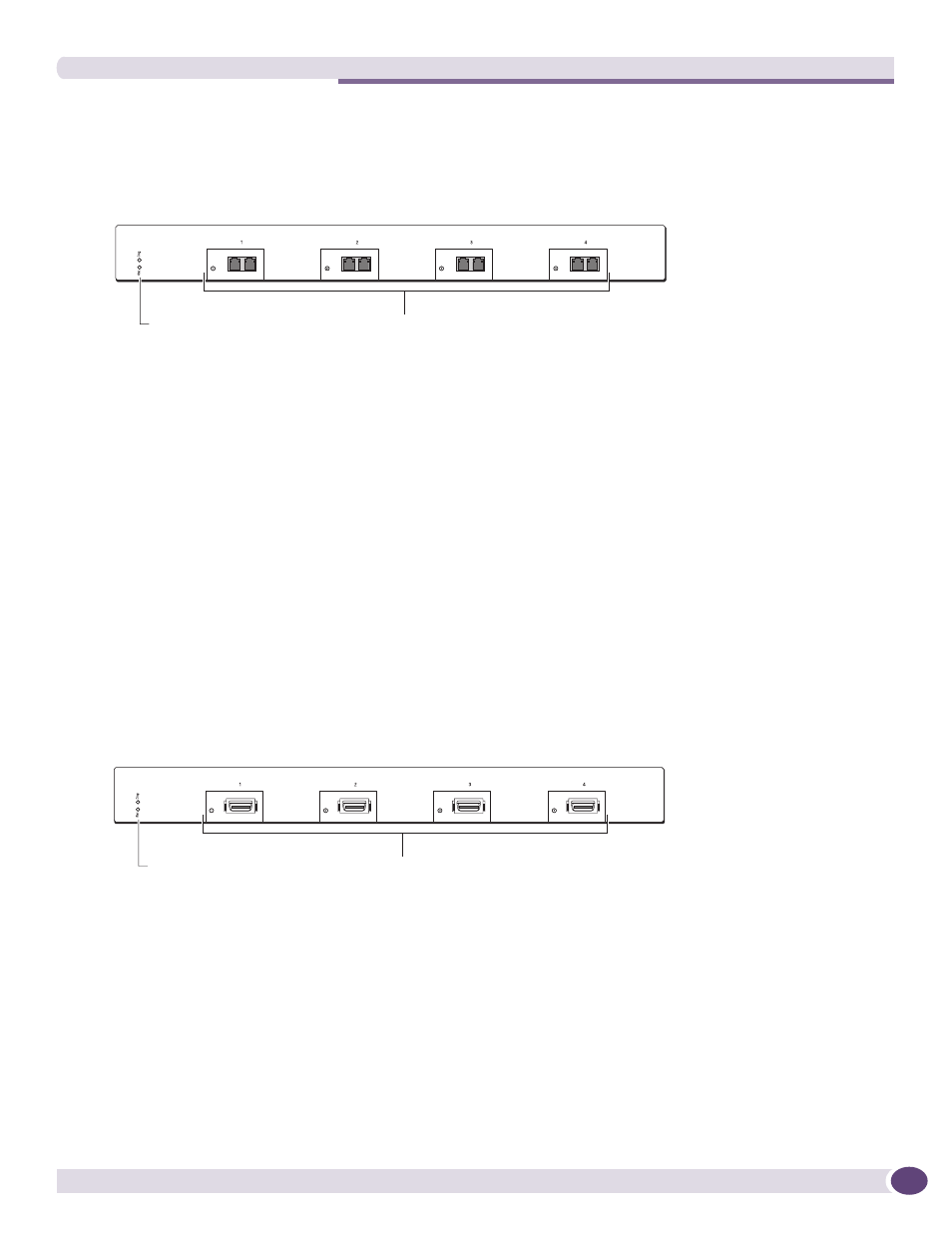

Figure 14: 10G4Xa I/O Module
The default configuration of the 10G4Xa I/O module is as follows. All ports:
● Are added to the default VLAN as untagged
● Inherit the properties of the default VLAN (for example, protocol type and VLANid)
The 10G4Xa I/O module has the following LEDs:
● Module status
● Module diagnostics
● Port status
For information about the LEDs and their activity on the 10G4Xa I/O module, see “I/O Module LEDs”
on page 38 . For information about the XFP interfaces, see the Extreme Networks Pluggable Interface
Modules Installation Guide.
10G4Ca I/O Module
The 10G4Ca I/O module ( Figure 14 ) has four 10-gigabit Ethernet ports that use CX4 interface
connectors.
Figure 15: 10G4Ca I/O Module
The default configuration of the 10G4Ca I/O module is as follows. All ports:
● Are added to the default VLAN as untagged
● Inherit the properties of the default VLAN (for example, protocol type and VLANid)
The 10G4Ca I/O module has the following LEDs:
● Module status
● Module diagnostics
● Port status
For information about the LEDs and their activity on the 10G4Ca I/O module, see “I/O Module LEDs”
on page 38 .
10G4Xa 10G4Xa 10GBASE-X XFP 41612
Module status LEDs 10 Gbs ports
BD_155
10G4Ca 10G4Ca 10GBASE-CX4 41613
Module status LEDs 10 Gbs ports
BD_156
