Meeting Site Requirements
BlackDiamond 8800 Series Switches Hardware Installation Guide
57

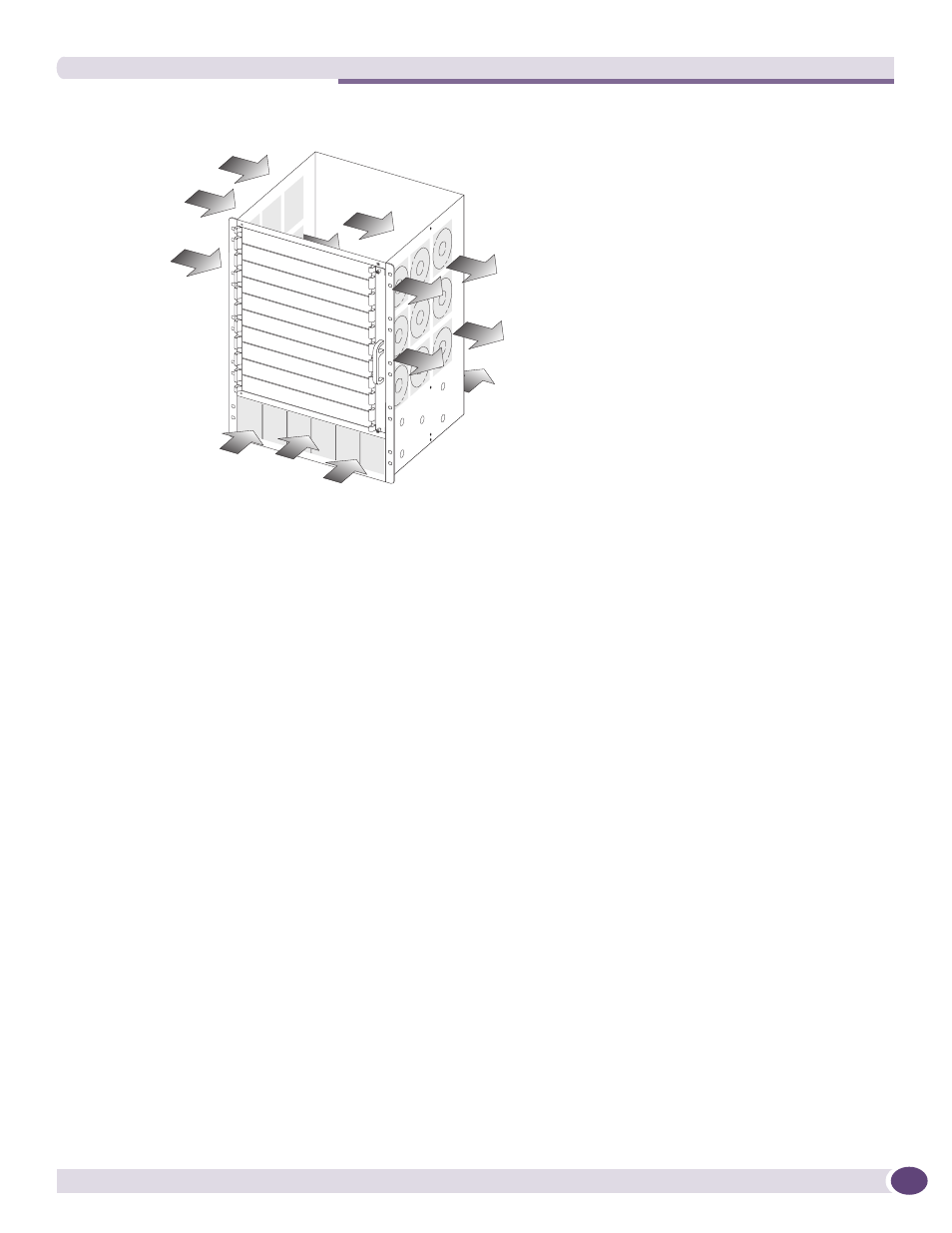

Figure 28: Airflow Through the BlackDiamond 8810 Chassis
Electrostatic Discharge
Your system must be protected from static electricity or electrostatic discharge (ESD). Take the following
measures to ensure optimum system performance:
●
Remove materials that can cause electrostatic generation (such as synthetic resins) from the wiring
closet. Check the appropriateness of floor mats and flooring.
●
Connect metal chassis, conduit, and other metals to ground using dedicated grounding lines.
●
Use electrostatically safe equipment and the ESD-preventive wrist strap that is provided with your
equipment. All switches have ESD-preventive wrist strap connectors and are shipped with an ESD-
preventive wrist strap as shown in
.
ASP045
Airflow at power
supply level
Airflow through
fan tray
