I/O Modules
BlackDiamond 8800 Series Switches Hardware Installation Guide 35
The G24Xc I/O module has the following LEDs:
● Module status
● Module diagnostics
● Port status
For information about the LEDs and their activity on the G24Xc I/O module, see “I/O Module LEDs”
on page 38 .
G48Xc I/O Module
The G48Xc I/O module ( Figure 20 ) has 48 unpopulated SFP-based 1-gigabit Ethernet ports.

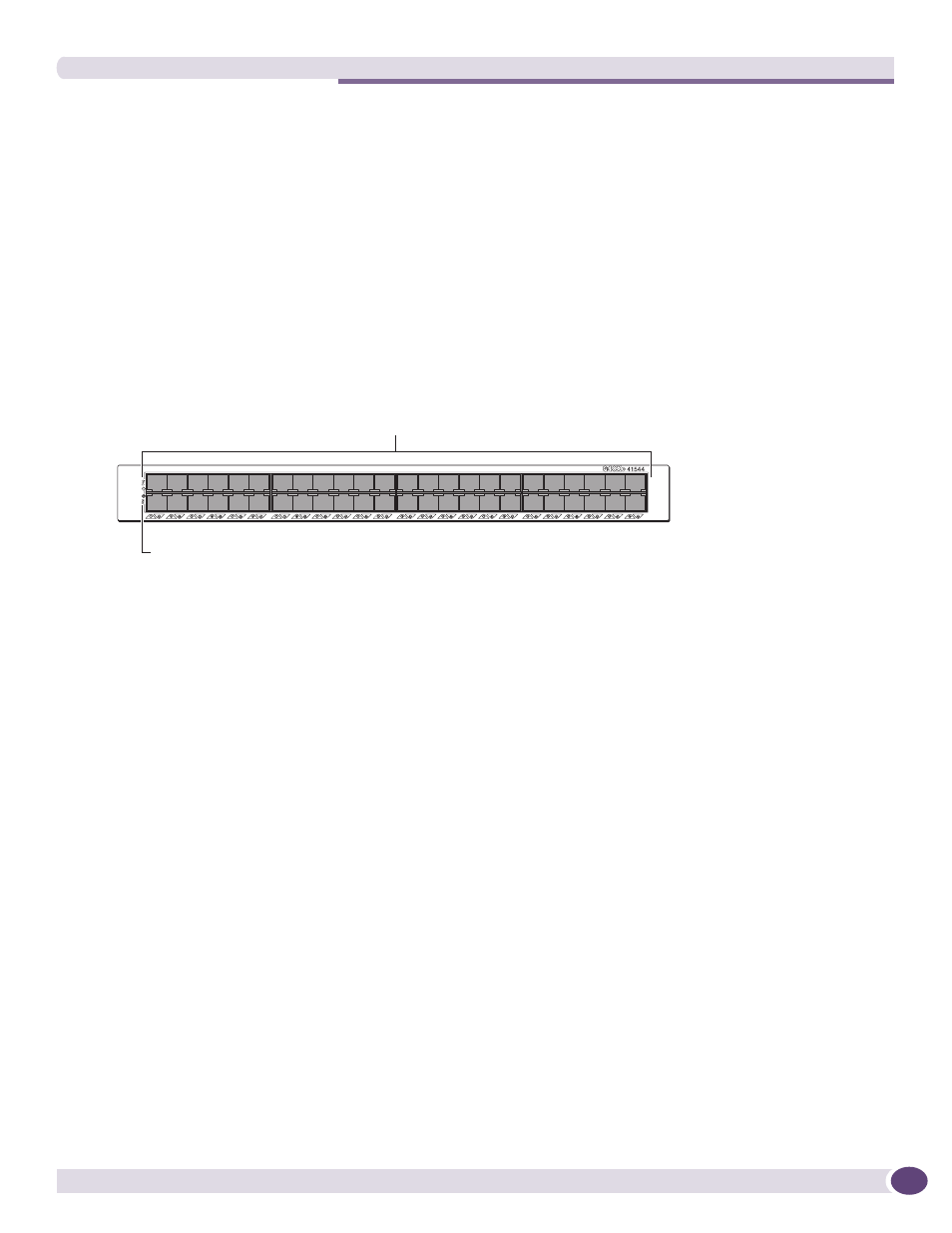

Figure 20: G48Xc I/O Module
The default configuration of the G48Xc I/O module is as follows. All ports:
● Are added to the default VLAN as untagged
● Inherit the properties of the default VLAN (for example, protocol type and VLANid)
The G48Xc I/O module has the following LEDs:
● Module status
● Module diagnostics
● Port status
For information about the LEDs and their activity on the G48Xc I/O module, see “I/O Module LEDs”
on page 38 .
Module status LEDs
ASP049A
1000BASE-X
ports
