BlackDiamond 8800 Series Modules
BlackDiamond 8800 Series Switches Hardware Installation Guide 34
10G8Xc I/O Module
The 10G8Xc I/O module Figure 18 has eight unpopulated XFP-based 10-gigabit Ethernet ports. This
module is over-subscribed 2:1.

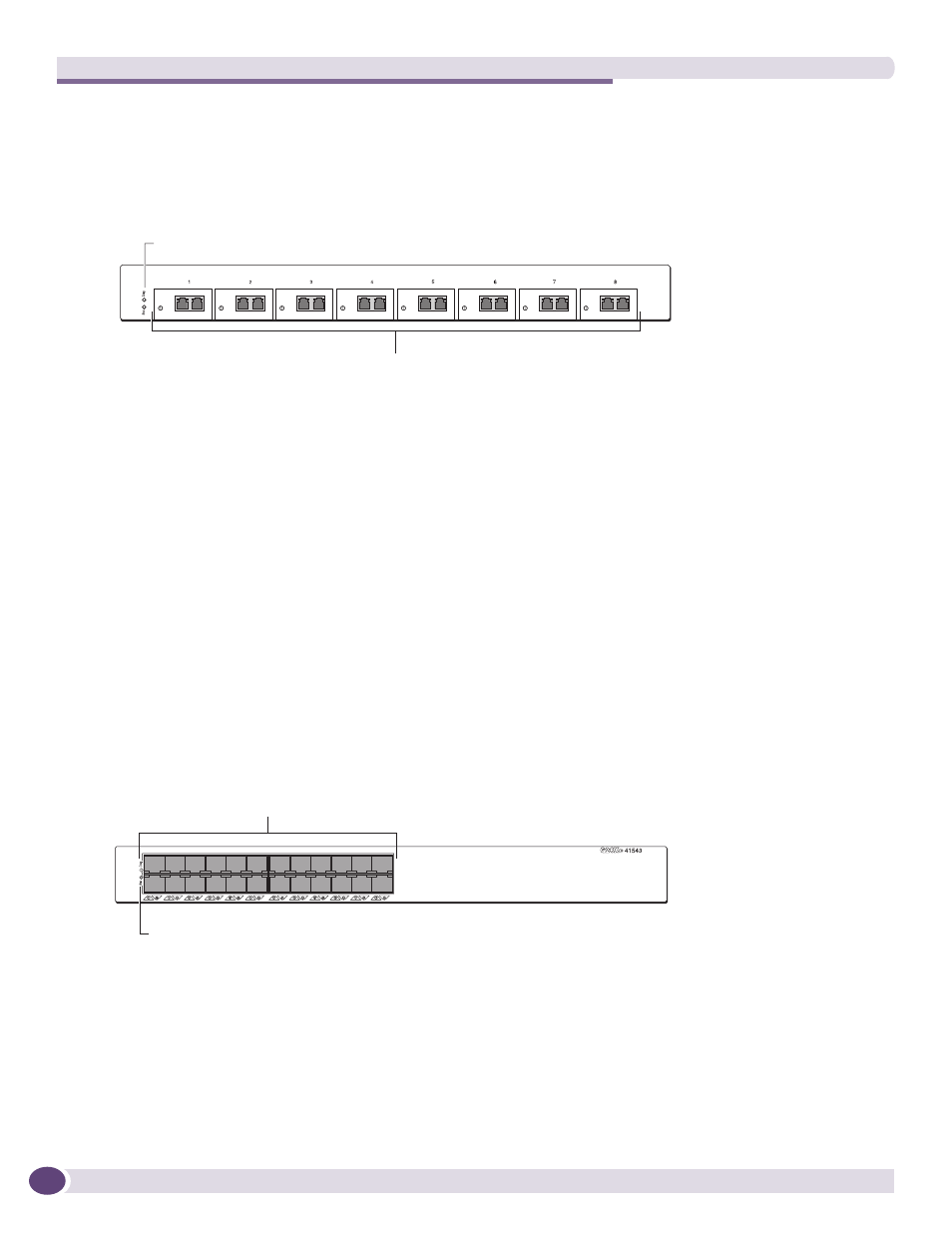

Figure 18: 10G8Xc I/O Module
The default configuration of the 10G8Xc I/O module is as follows. All ports:
● Are added to the default VLAN as untagged
● Inherit the properties of the default VLAN (for example, protocol type and VLANid)
The 10G8Xc I/O module has the following LEDs:
● Module status
● Module diagnostics
● Port status
For information about the LEDs and their activity on the 10G8Xc I/O module, see “I/O Module LEDs”
on page 38 .
G24Xc I/O Module
The G24Xc I/O module Figure 19 has 24 unpopulated SFP-based 1-gigabit Ethernet ports.
Figure 19: G24Xc I/O Module
The default configuration of the G24Xc I/O module is as follows. All ports:
● Are added to the default VLAN as untagged
● Inherit the properties of the default VLAN (for example, protocol type and VLANid)
10G8Xc 10G8Xc 10GBASE-X XFP 41615
Module status LEDs
10 Gbs ports
BD_155
Module status LEDs
ASP049B
1000BASE-X
ports
