Using the Cable Holders and Cable Clips
BlackDiamond 8800 Series Switches Hardware Installation Guide 133
2 Slide the ends together and push the cable holders together until you feel them snap into place (see
Figure 88 ).

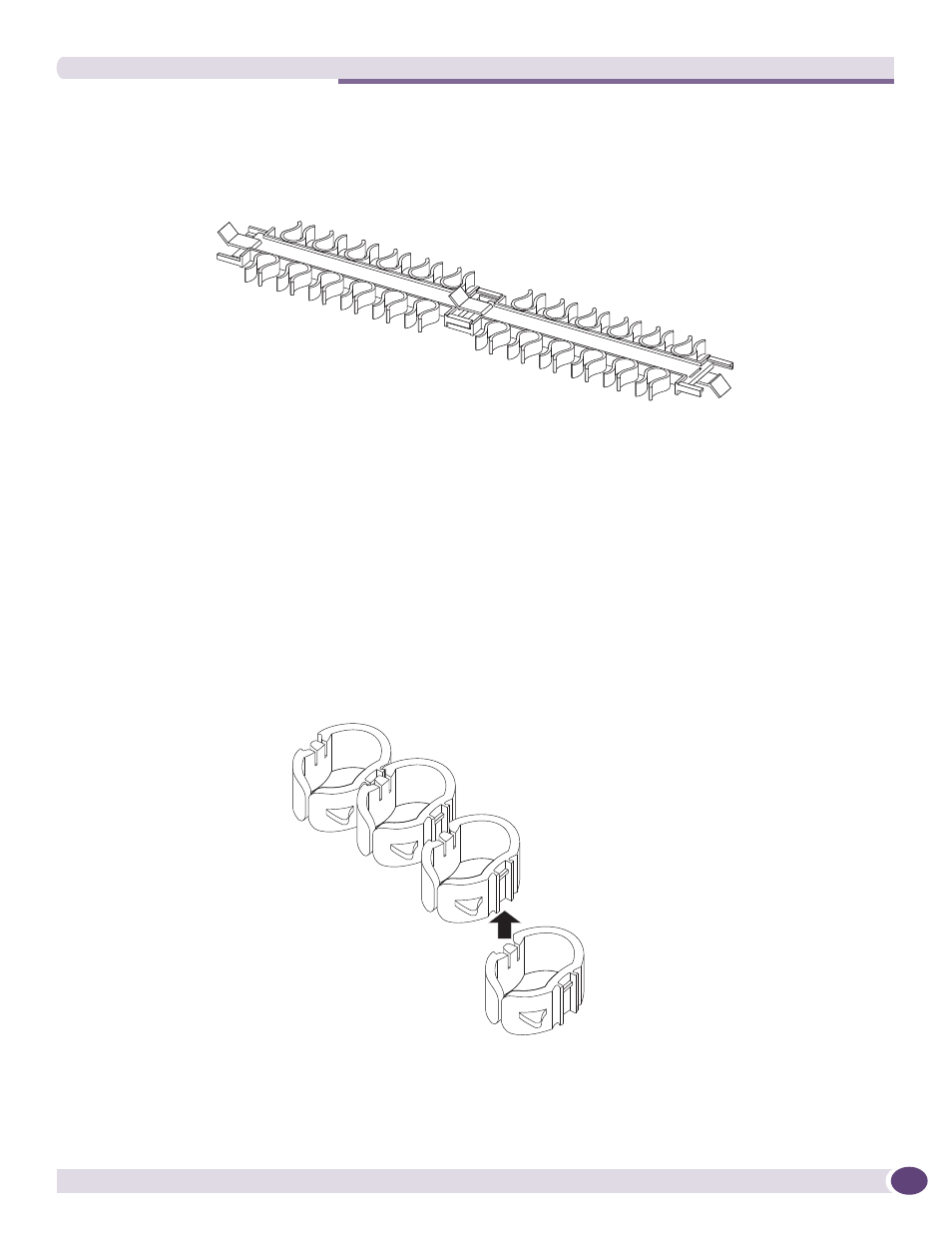

Figure 88: Connected cable holders
3 Connect as many cable holders together as you need to manage your cable bundles.
4 To disconnect the holders, grasp one in each hand firmly and carefully pull them apart.
Connecting Cable Clips
To connect the cable clips:
1 Hold two clips next to each other with the split sides facing the same way (see Figure 89 ).
2 Slide the connecting grooves together (see Figure 89 ).
Figure 89: Connecting cable clips
ENIN004
ENIN001A
