BlackDiamond Cable Management
BlackDiamond 8800 Series Switches Hardware Installation Guide 132

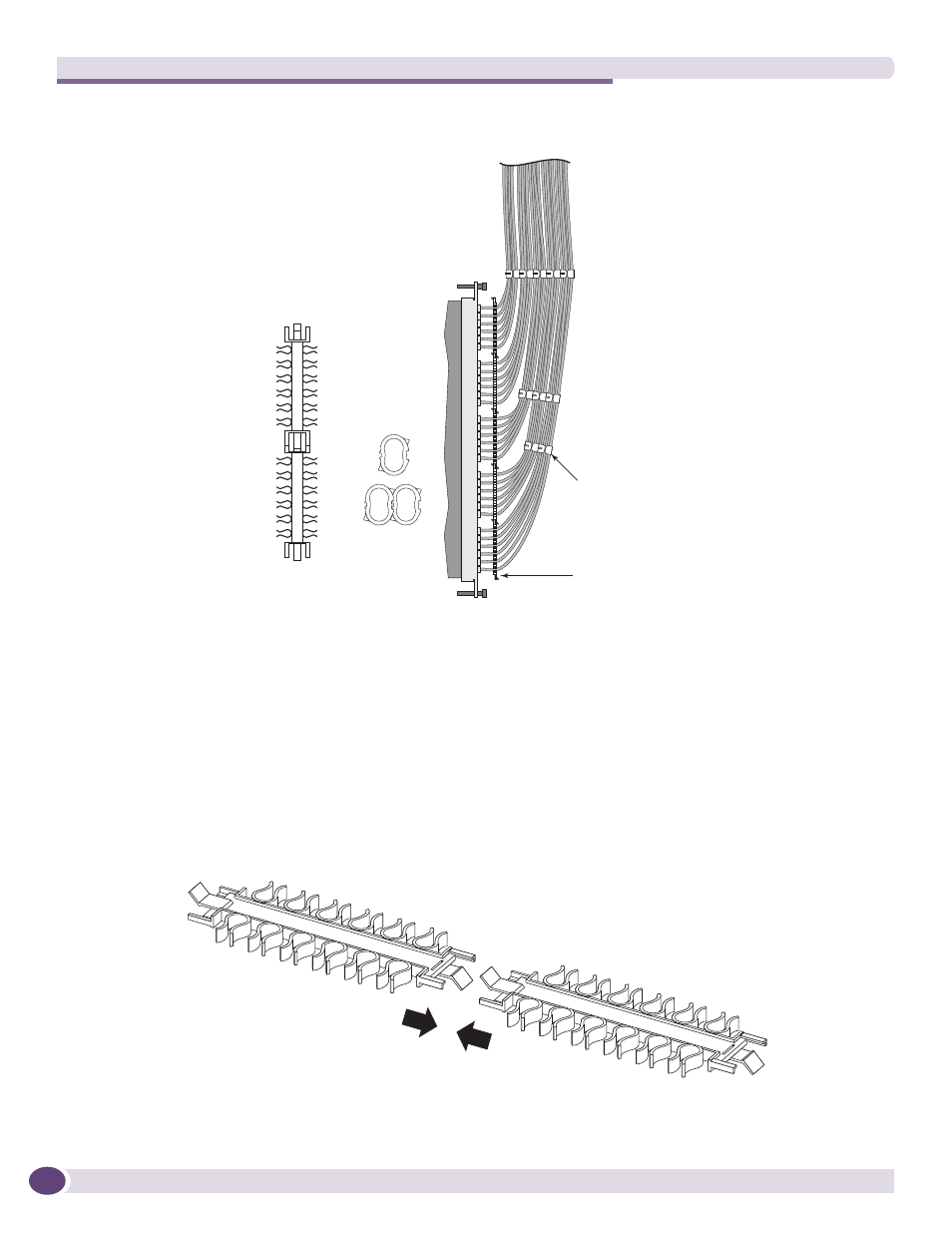

Figure 86: BlackDiamond cable holders and clips
Connecting Cable Holders
Each cable holder holds up to 12 separate cables, with 6 on each side. Connect cable holders end to end
as needed to accommodate the number of cables you need to organize.
To connect the cable holders:
1 Hold two cable holders as shown in Figure 87 .
Make sure that one locking tab at the joint is on top and the other is on the bottom.
Figure 87: Connecting cable holders
Interlocking
cable holder
and cable clips
ENIN005A
Side view
Cable
holder
Cable
clips
ENIN003
