BlackDiamond AC Power Cord Retaining Brackets
BlackDiamond 8800 Series Switches Hardware Installation Guide 126
3 Connect each AC power cord to a power outlet on the BlackDiamond 8810 switch as shown in
Figure 78 .

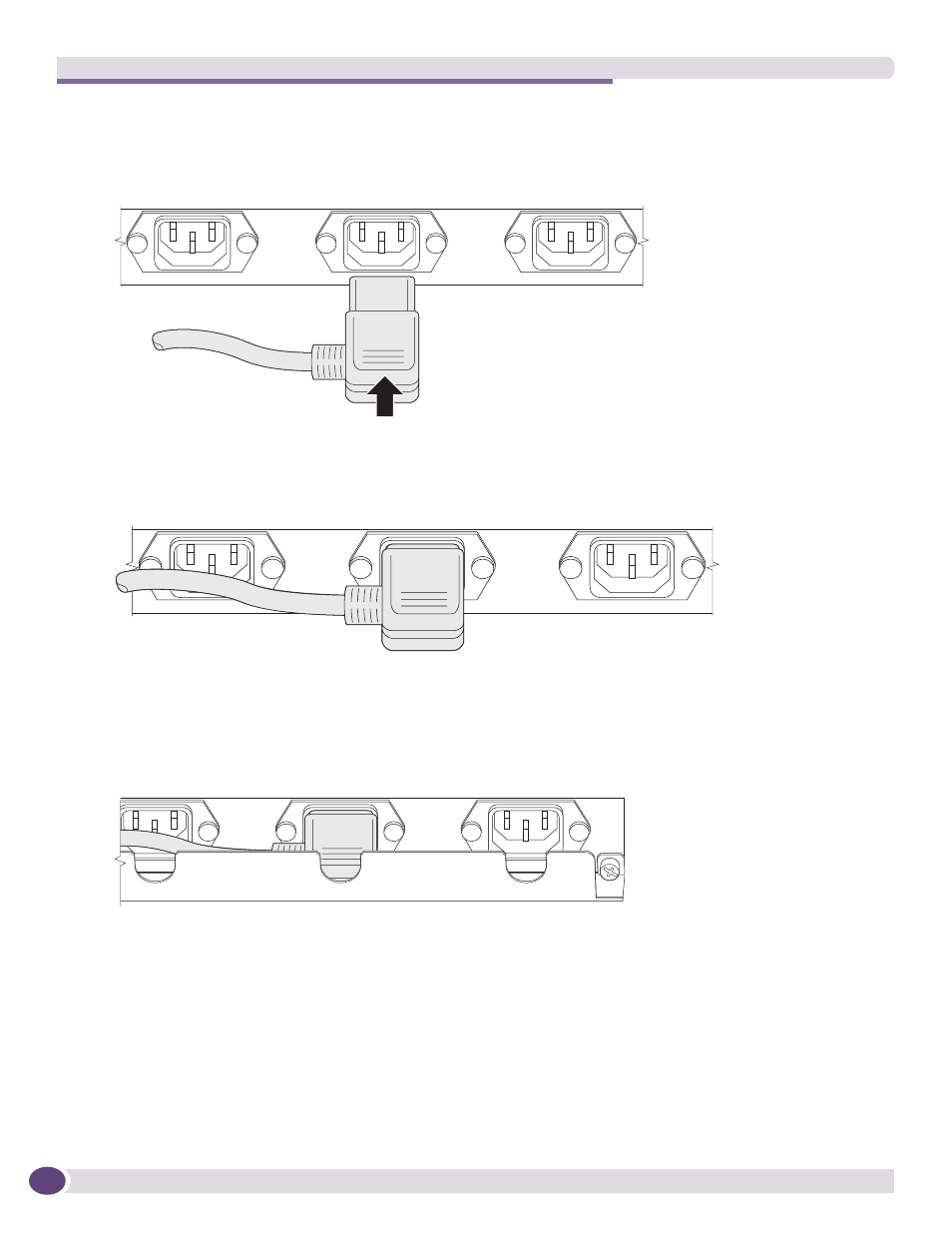

Figure 78: Connecting an AC Power Cord to the BlackDiamond 8810 Switch
4 Make sure that each AC power cord is firmly plugged into the power outlet as shown in Figure 79 .
Figure 79: AC Power Cord Plugged into the BlackDiamond 8810 Switch Power Outlet
5 Align the BlackDiamond 8810 AC power cord retaining bracket over the AC power cord ends as
shown in
Figure 80 .
Figure 80: AC Power Cord Retaining Bracket Correctly Aligned
ASP009
ASP010
ASP012A
REMOVE TO INSTALL POWER CORDS
