G48Te2 I/O Module
The G48Te2 I/O module ( Figure 21 ) has 48 autosensing 10/100/1000BASE-T ports that use standard
RJ-45 connectors.

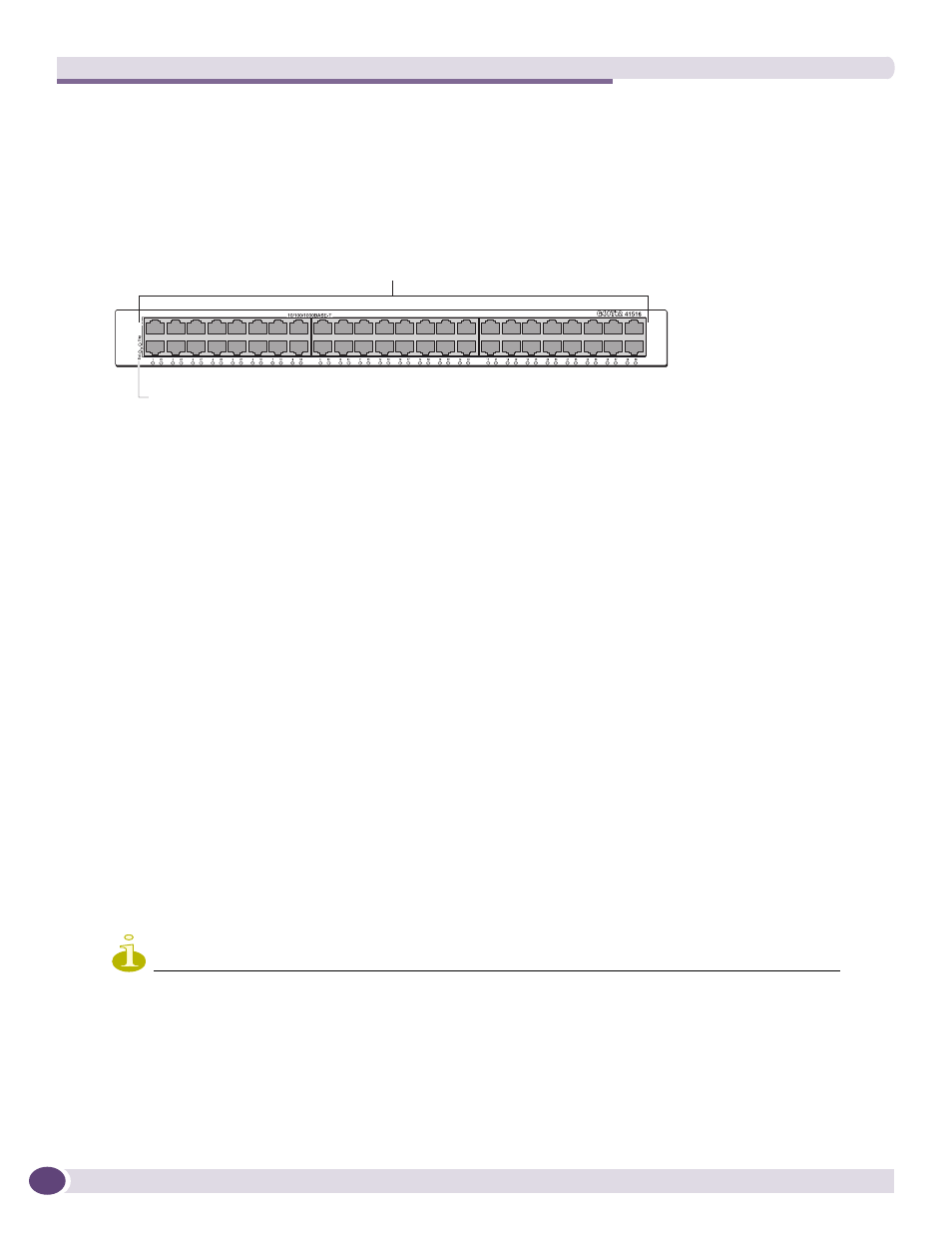

Figure 23: G48Te2 I/O Module
You can add an optional S-POE daughter card to the G48Te2 I/O module to provide Power over
Ethernet functions in this module. With an installed S-POE card, the ports can deliver Power over
Ethernet (PoE) to an attached device as well as the usual Ethernet connection, using a single cable. The
G48Te2 I/O module supports the IEEE 802.3af PoE specification.
The default configuration of the G48Te2 I/O module is as follows. All ports:
● Are added to the default VLAN as untagged
● Inherit the properties of the default VLAN (for example, protocol type and VLANid)
● Operate in autonegotiation mode
The G48Te2 I/O module has the following LEDs:
● Module status
● Module diagnostics
● Port status
For information about the LEDs and their activity on the G48Te2 I/O module, see “I/O Module LEDs”
on page 38 .
I/O Module LEDs
This section describes the LEDs for the module, for the port, and for inline power delivery status for
I/O modules in the BlackDiamond 8800 series of switches.
NOTE
Inline power delivery applies only to the ports on the G48P and G48Pe I/O modules or to a G48tc or G48Te2 I/O
module with an installed S-POE card.
Module status LEDs
ASP047
10/100/1000BASE-T
ports
