Draco tera
52
2013-08-14
4.3.4 Cascading
For applications exceeding the number of available ports, the system can
be extended by cascading.
In this case, the Draco tera devices are connected by so-called "tie lines".
The tie lines are dynamically configured to support connections in both
directions.
To access cascaded matrices from a console, one of the matrices has to
be configured as sub matrix (see Chapter 5.4.1, Page 75).

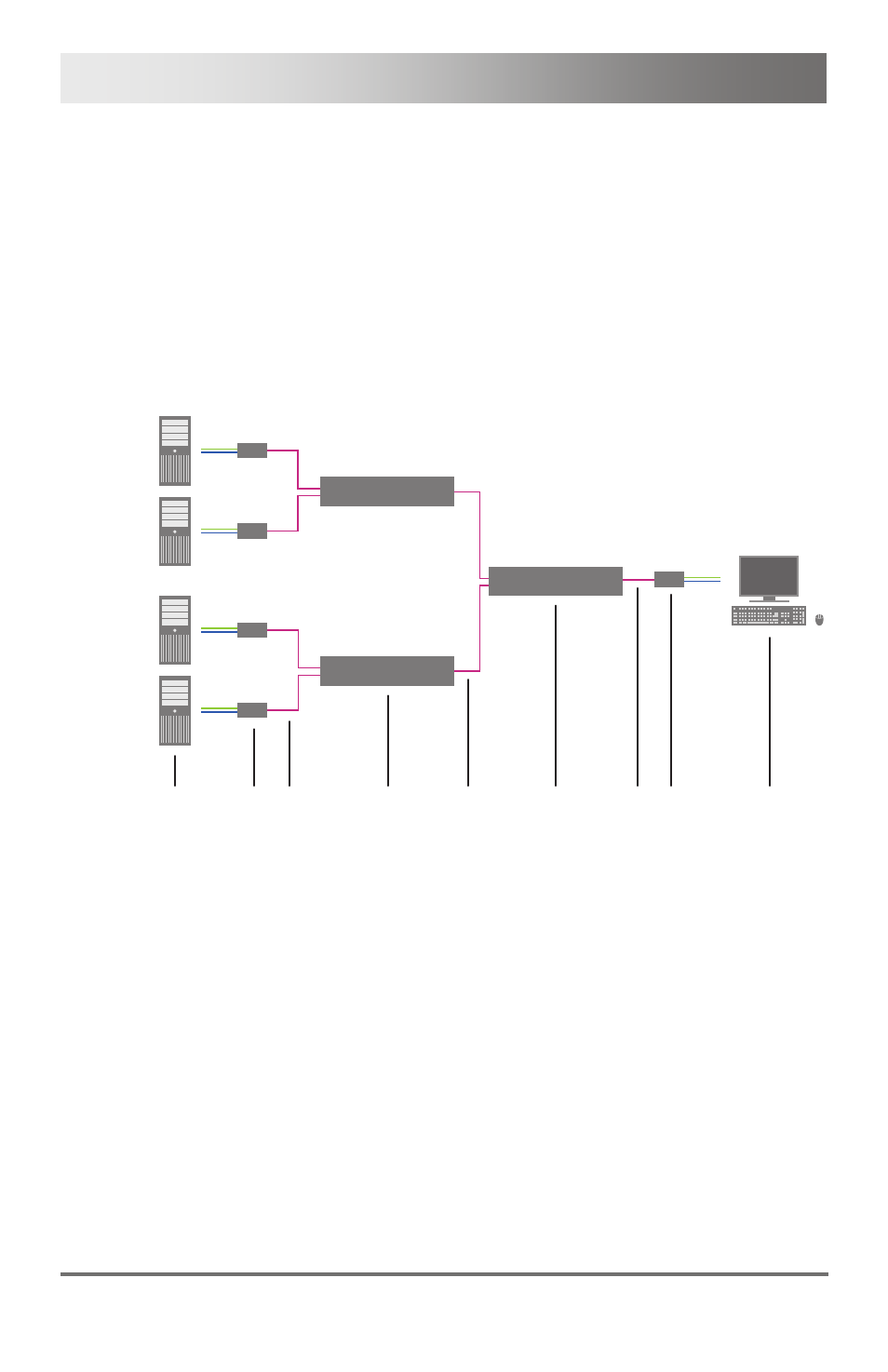

1 2 3 3 4 6 3 7 5
Cascading
1 Source (computer, CPU)
2 CPU unit
3 Interconnect cable
4 Draco tera (sub matrix)
5 Draco tera (main matrix)
6 CON unit
7 Console (monitor, keyboard, mouse)
