IHSE USA 480 Series Draco tera enterprise - Manual (Page 136)

Draco tera
136
2013-08-14
OSD
 Select Assignments > Multi-Screen Control in the main menu.

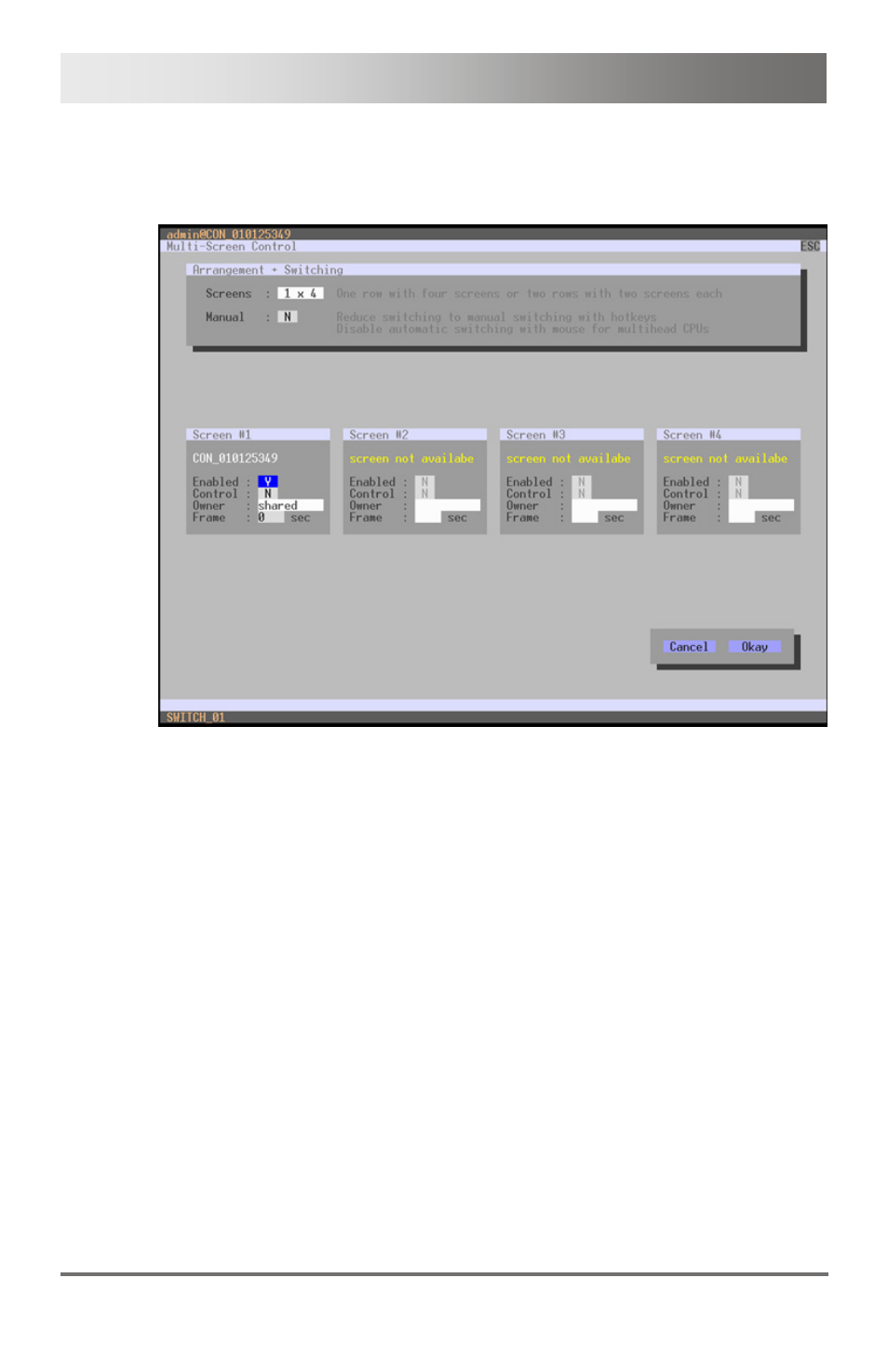

Menu Assignments – Multi-Screen Control
In order to configure the Multi-Screen Control, proceed as follows:
1. Select in the field Arrangement the respective display arrangement
that is available at the CON Device you want to configure (1 x 4 or
2 x 2).
The fields for the configuration of the individual displays will be
arranged accordingly.
2. Activate the option Manual, if the USB-HID switching should only be
allowed by using keyboard commands (see Chapter 6.7, Page 173).
The manual switching allows the use of multi-head consoles.
3. Ensure that the option Enabled is set to Y on all used displays in
order to activate the respective display for the use of the Multi-Screen
Control.
