8-5

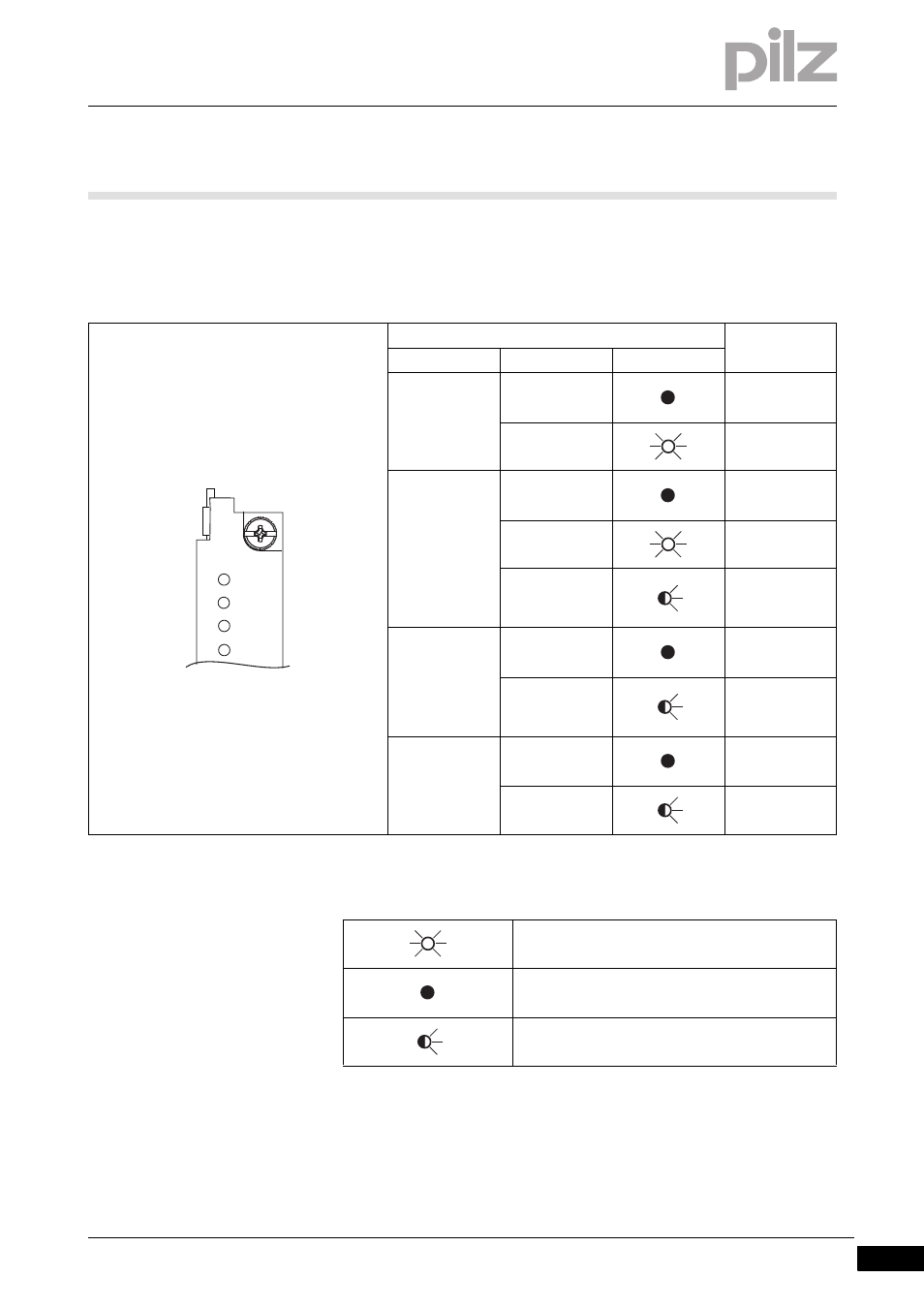

8.3 Display elements
8 Operation
8.3 Display elements 8300 Display elements 8- Betrieb_LED
The expansion card has LEDs to display the status of the operating
states.
 Legend
LED Meaning
Name Colour Status
POWER - - - Supply voltage
is not present
Green Supply voltage
is present
RUN - - - System not
ready
Green System read
("RUN" status)
Green System boots
("Startup" sta-
tus)
CONFIG - - - Normal opera-
tion
Yellow Downloading
the configura-
tion data
FAULT - - - No error
Red Error ("STOP"
status)
LED on
LED off
LED flashes
RUN
POWER
FAULT
CONFIG
