Echelon i.LON SmartServer 2.0 Power Line User Manual
Page 93
i.LON SmartServer 2.0 Power Line Repeating Network Management Guide
79

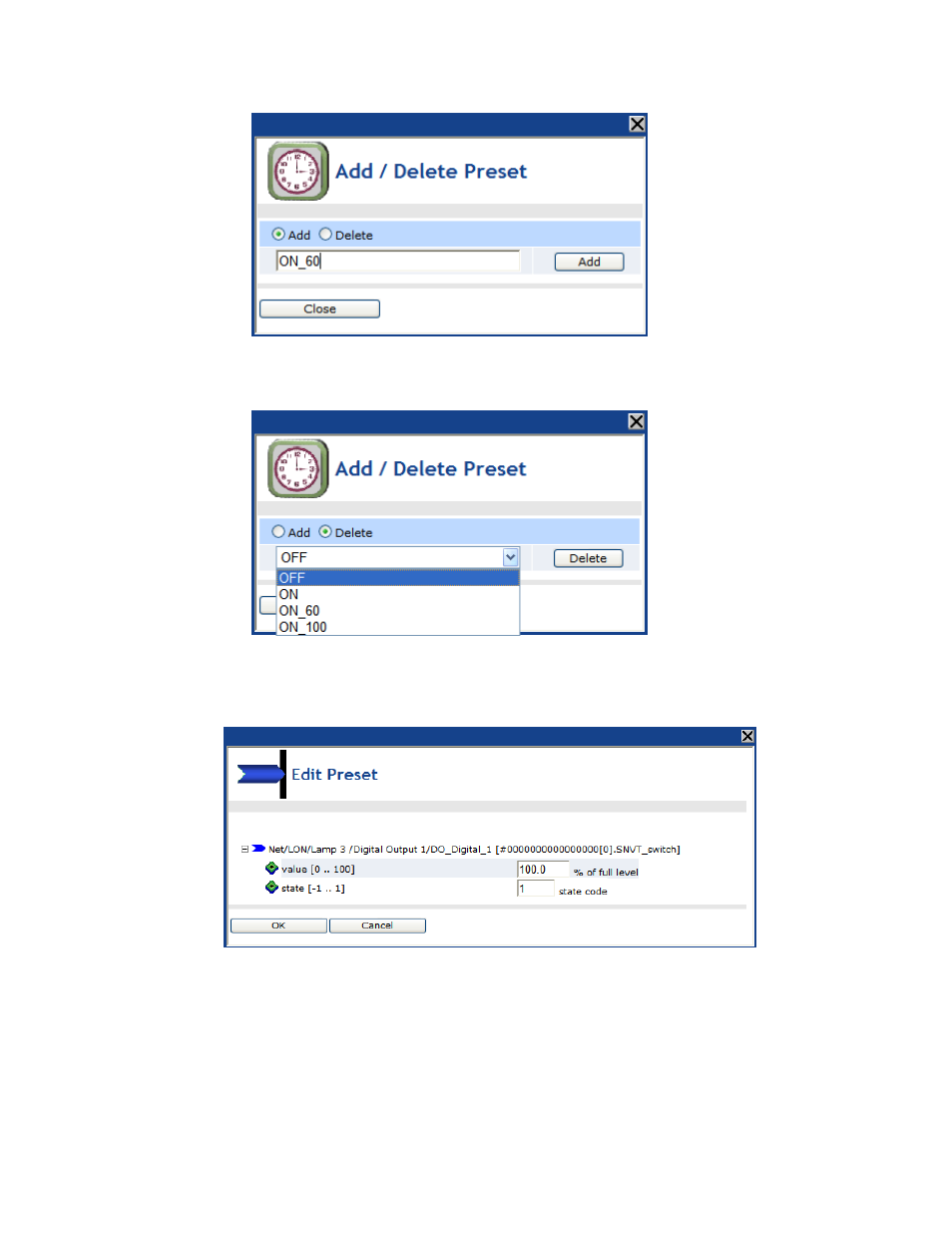

• To delete an existing preset, click Delete at the top, select the preset to be deleted from
the list of presets, and then click Delete next to the list of presets. The preset is removed
from the Scheduler: Data Points Web page.
c. Click Close.
5. Optionally, you can edit the values of existing presets. To do this, follow these steps:
a. Click the preset to be edited. The Edit Presets dialog opens.
b. Enter the value (or values if you are editing the preset of a structured data point) for the
preset.
c. Click OK.
6. Click Submit.
7. Click Back to return to the Scheduler: Configure Web page.
