i.LON SmartServer 2.0 Power Line Repeating Network Management Guide

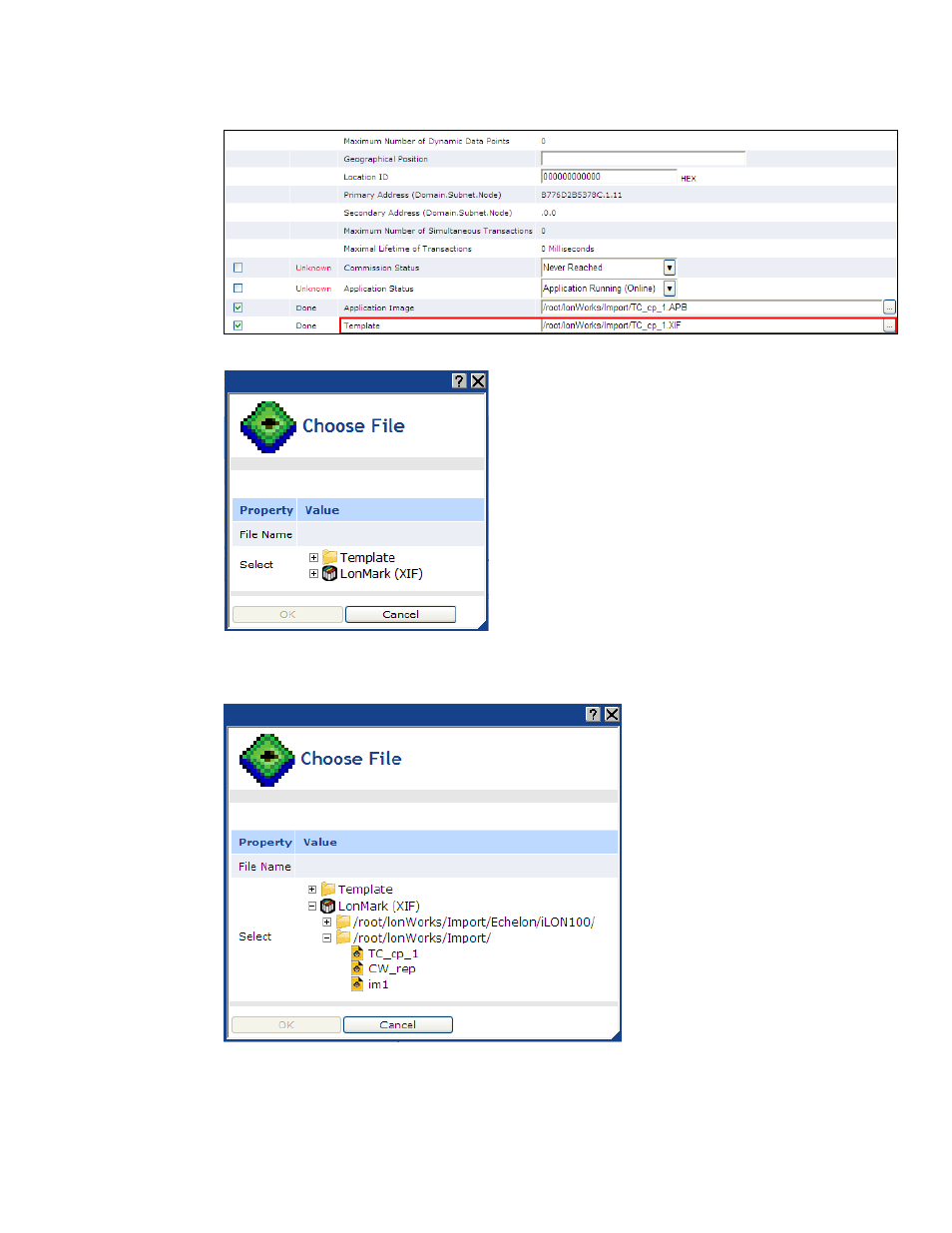

b. The Choose File dialog opens.

c. Expand either the LonMark (XIF) or Template folder depending on whether you are using a

.xif or .xml file for the external device interface. If the device being upgraded is located in
the LNS tree, the Template folder is not available.

d. Expand the subfolders containing the XIF file to be loaded onto the SmartServer and then

click the XIF file.

e. Click OK to return to the Setup - LON Device Driver Web page.
