i.LON SmartServer 2.0 Power Line Repeating Network Management Guide
75

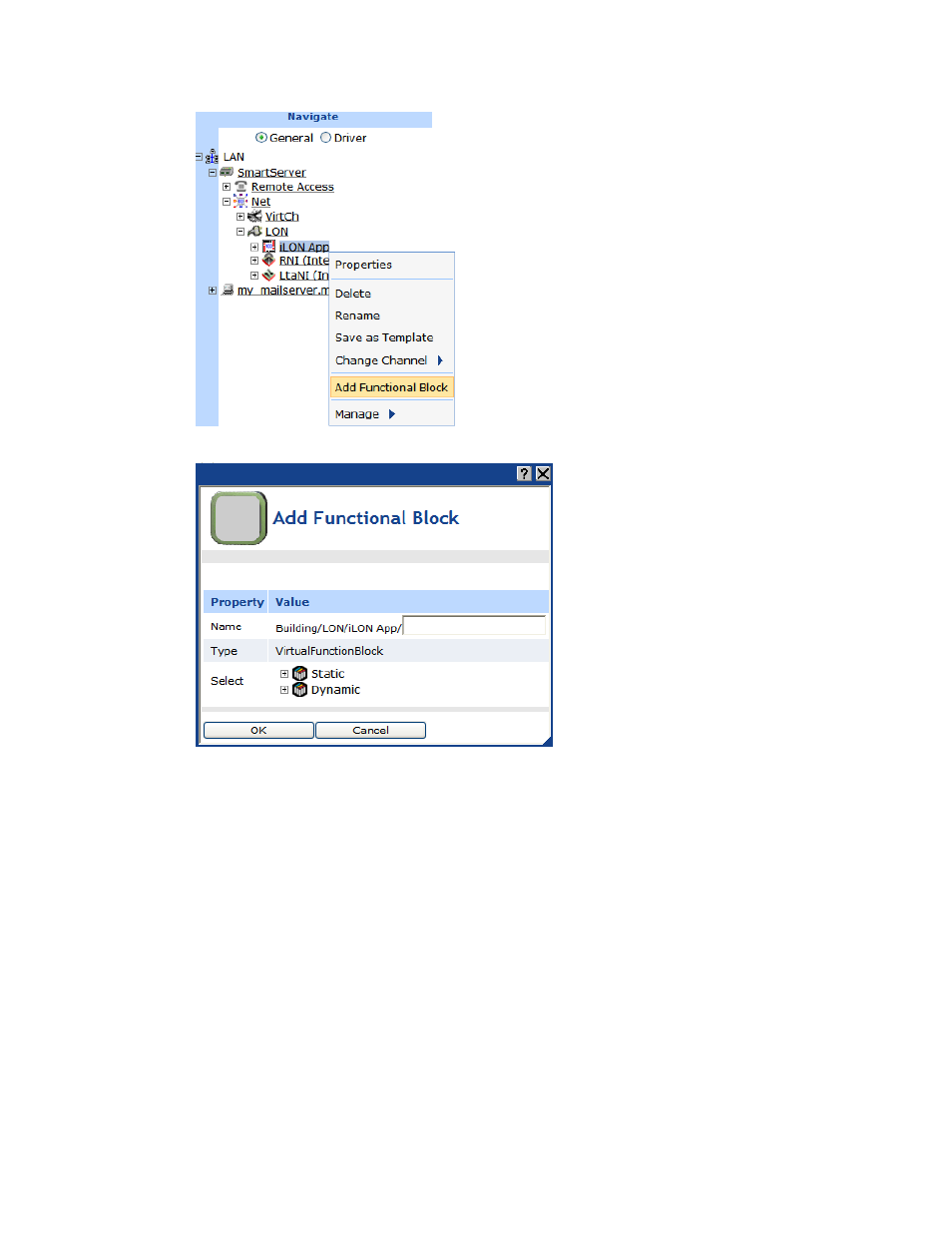

4. The Add Functional Block dialog opens.
5. Select the Scheduler functional block from the Static or Dynamic LonMark folder. The folder
available in the dialog depends on whether the SmartServer is using the static v12 external
interface (XIF) file or the dynamic v40 XIF file.
• If the SmartServer is using the static v12 XIF file (the default), expand the Static icon, select
the Scheduler functiona1 block, optionally enter a different name than the default
programmatic functional block name, and then click OK.
