Echelon i.LON SmartServer 2.0 Power Line User Manual
Page 58

44
Maintaining a Power Line Repeating Network

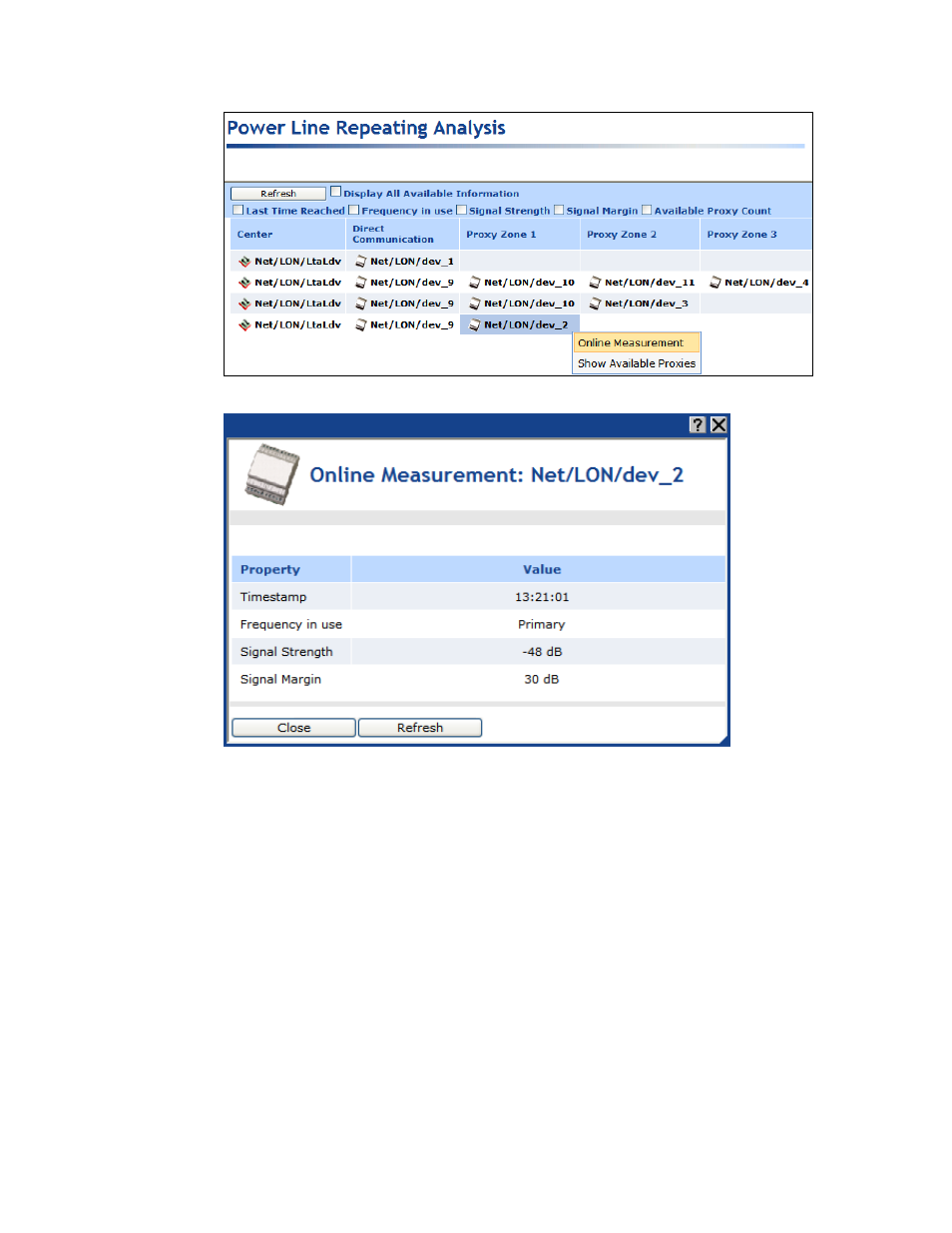

b. The Online Measurement dialog opens.
c. This dialog displays the following statistics:
Time Stamp
Displays the time at which the device last responded to a network
message.
Frequency in Use
Displays the frequency carrier of the signal at the hop (Primary or
Secondary). For more information on the use of these frequency
carriers on a L
ON
W
ORKS
power line channel, see the L
ON
W
ORKS
PLT-
22 Power Line Transceiver User’s Guide (110kHz - 140kHz
Operation).
Signal Strength
Direct Communication Devices: Displays the real-time
measurement in dB of the signal strength at the device.
Proxies and Target Devices: Displays the real-time measurement in
dB of the signal strength at the hop. This value is the minimum of the
signal strengths measured by the device from its proxy and by the
proxy from the device.
