10 Installation
2.2 PCI-8102 Outline Drawing

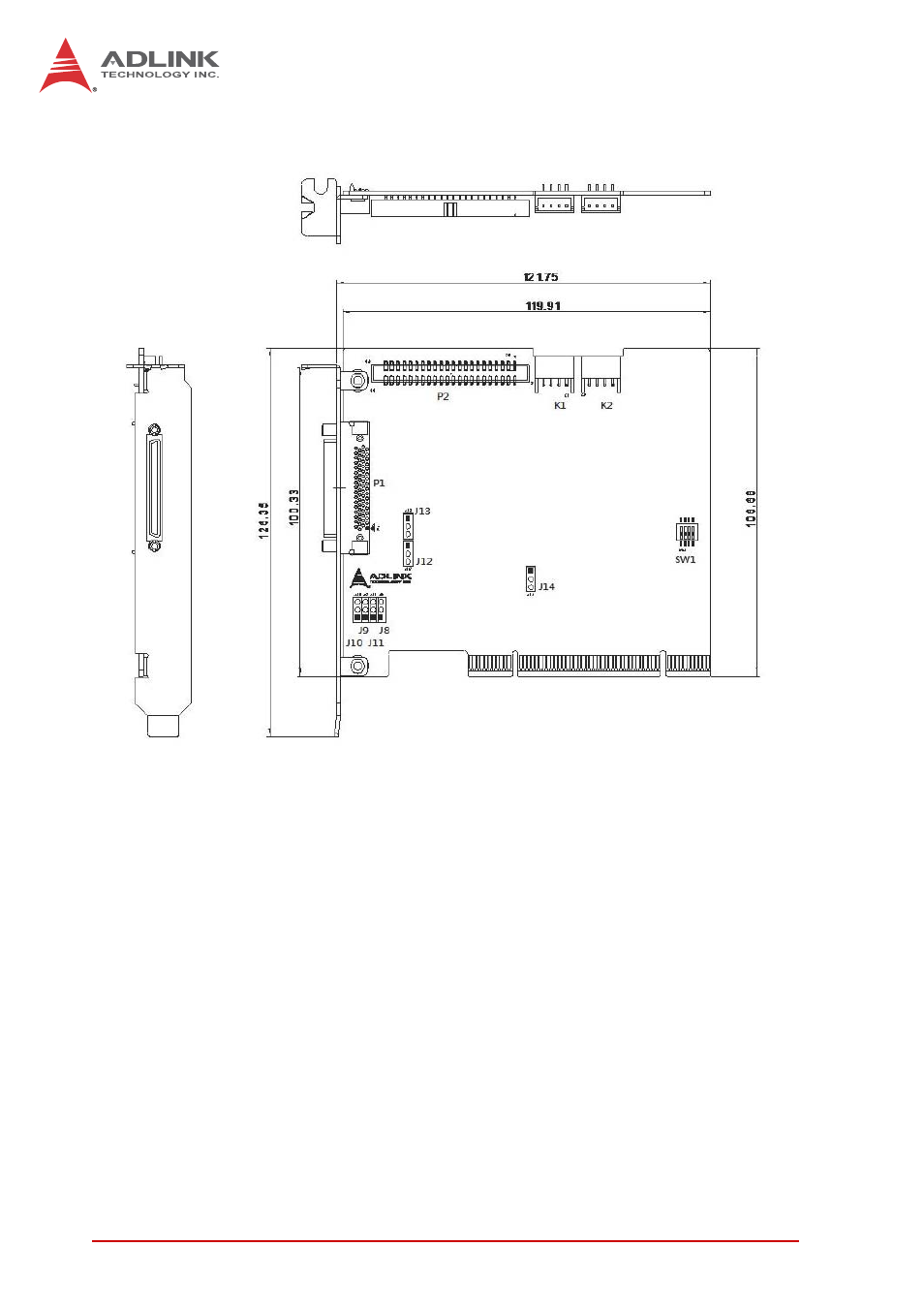

Figure 2-1: PCB Layout of the PCI-8102
P1: Input / Output Signal Connector (68-pin)
P2: 16 Digital Input / Output Signals Connector
K1 / K2: Simultaneous Start / Stop Connector
SW1:
DIP switch for card index selection (0-15)
J8-J11: Pulse output selection jumper
J12/J13: CMP output interface selection jumper
J14:
EMG input signal setting
