MotionCreatorPro

5.3.5

Single Axis Operation Menu

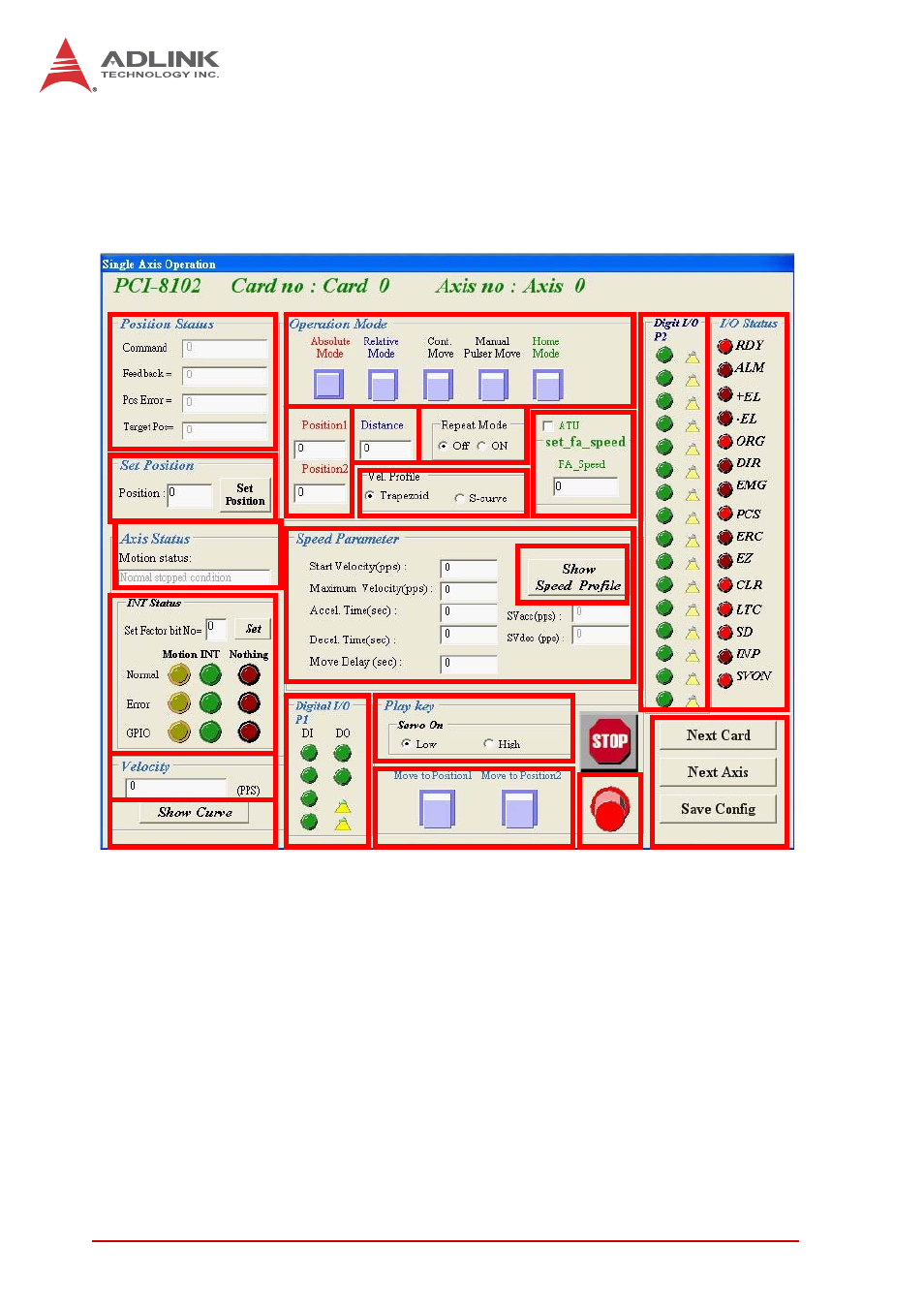

In this menu, users can change the settings a selected axis,
including velocity mode motion, preset relative/absolute motion,
manual pulse move, and home return.

1. Position:

Z

Command: displays the value of the command counter.
The related function is _8102_get_command().

Z

Feedback: displays the value of the feedback position
counter. The related function is _8102_get_position()

Z

Pos Error: displays the value of the position error coun-
ter. The related function is _8102_get_error_counter().

Z

Target Pos: displays the value of the target position
recorder. The related function is
_8102_get_target_pos().

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21
