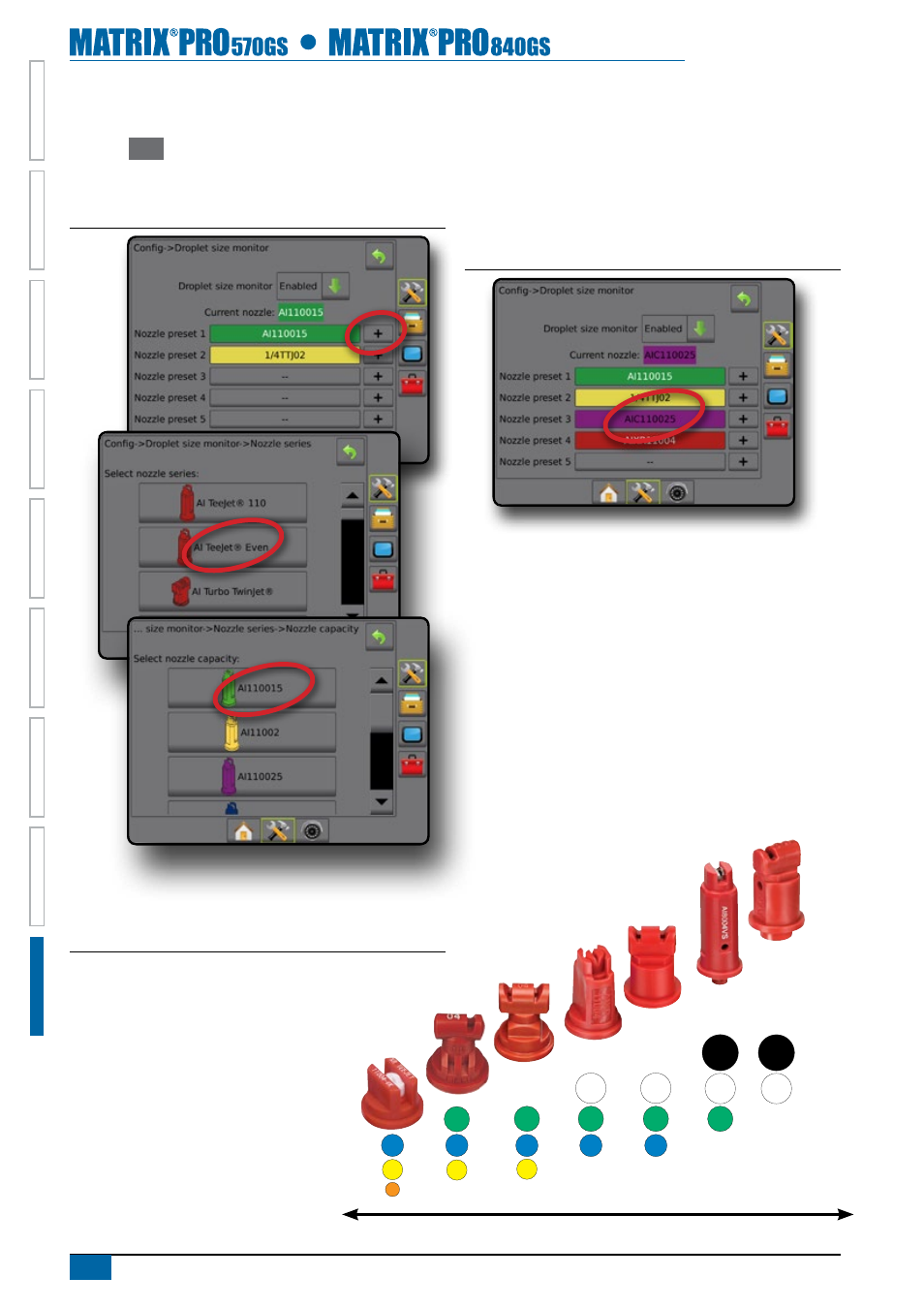

Nozzle preset
Nozzle presets allow saving of up to five nozzles for quick recall.
1. Press
+
.
2. Select a TeeJet nozzle series.
3. Select nozzle capacity.
Figure 9-5: Preset nozzle
Figure 9-6: Droplet sizes for select teejet nozzles
Current nozzle
Current nozzle shows the active nozzle for determining current
droplet size information. Nozzles must be preset to be available
for current nozzle selection.
1. Press desired nozzle.
Selected nozzle will be also visible on the Droplet/Pressure Status
display from the status bar on the guidance screens.
Figure 9-7: Current nozzle
XR
TT
TTJ60
AIXR
AITTJ60
AI
TTI
Droplet size
Coarse Fine
f
uC
C
VC
M
XC
M
C
VC
C
VC
XC
C
VC
XC
VC
uC
XC
C
M
