CHApTER 8 - iMpLEMENT sETUp
Implement setup is used to establish the various settings associated with straight mode, spreader mode or staggered mode.
Settings will vary depending on if a Smartcable or Section Driver Module (SDM) is present.
implement type
Implement type selects the type of application pattern that most closely represents your system.
● In straight mode – the boom sections have no length and are on a line a fixed distance from antenna
● In spreader mode – a virtual line is created in line with the delivery disks from which the application section or sections can vary in
length and can be at different distances from the line
● In staggered mode – a virtual line is created in line with Section 1 from which the application section or sections have no length
and can be at different distances from antenna

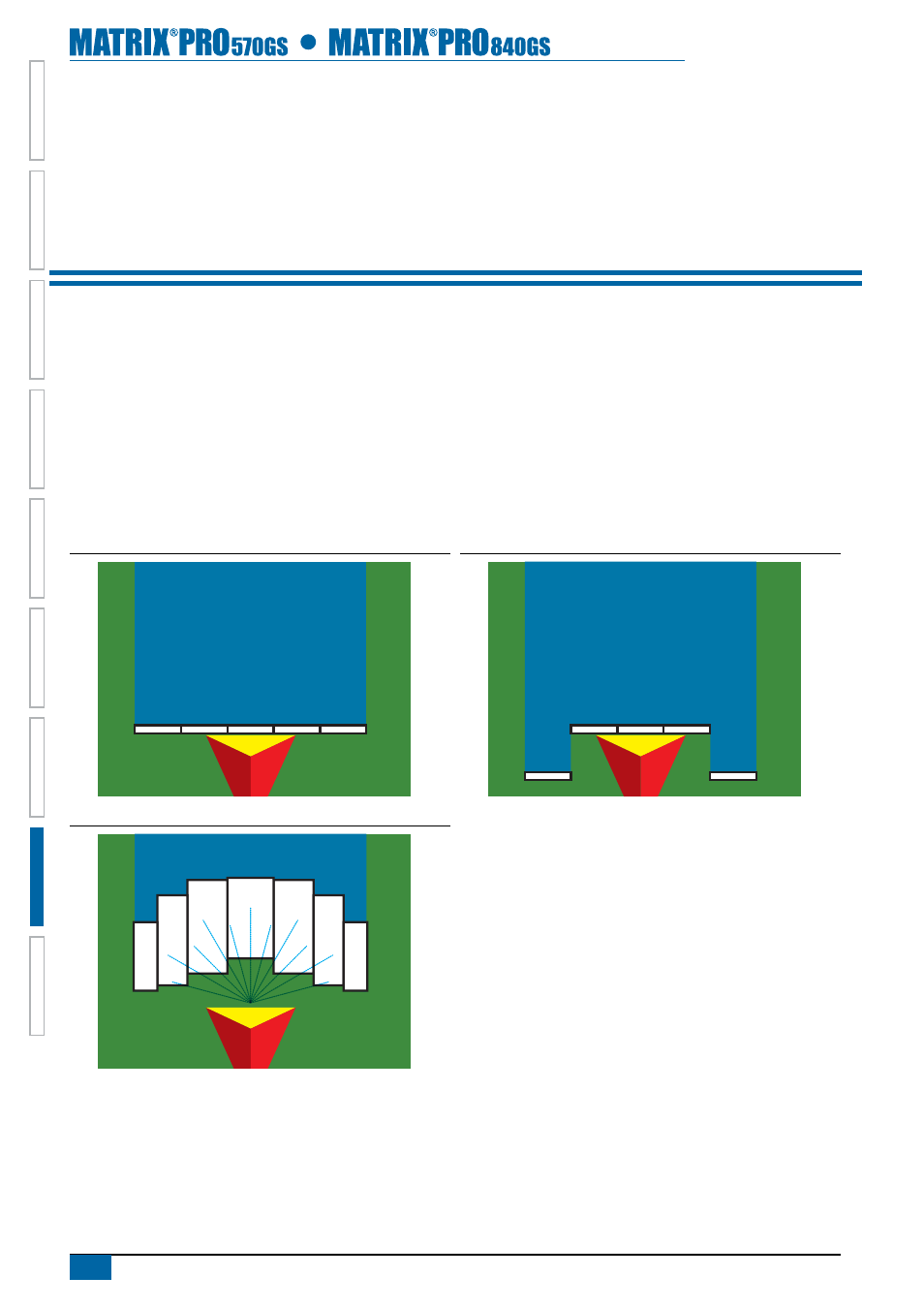

Figure 8-1: Implement type - straight
5
4
3
2
1
Figure 8-2: Implement type - spreader
5
6
7
4
3
2
1
Figure 8-3: Implement type - staggered
5
4
3
2
1
Section numbers
Sections are numbered from left to right while facing in the machine's forward direction.
