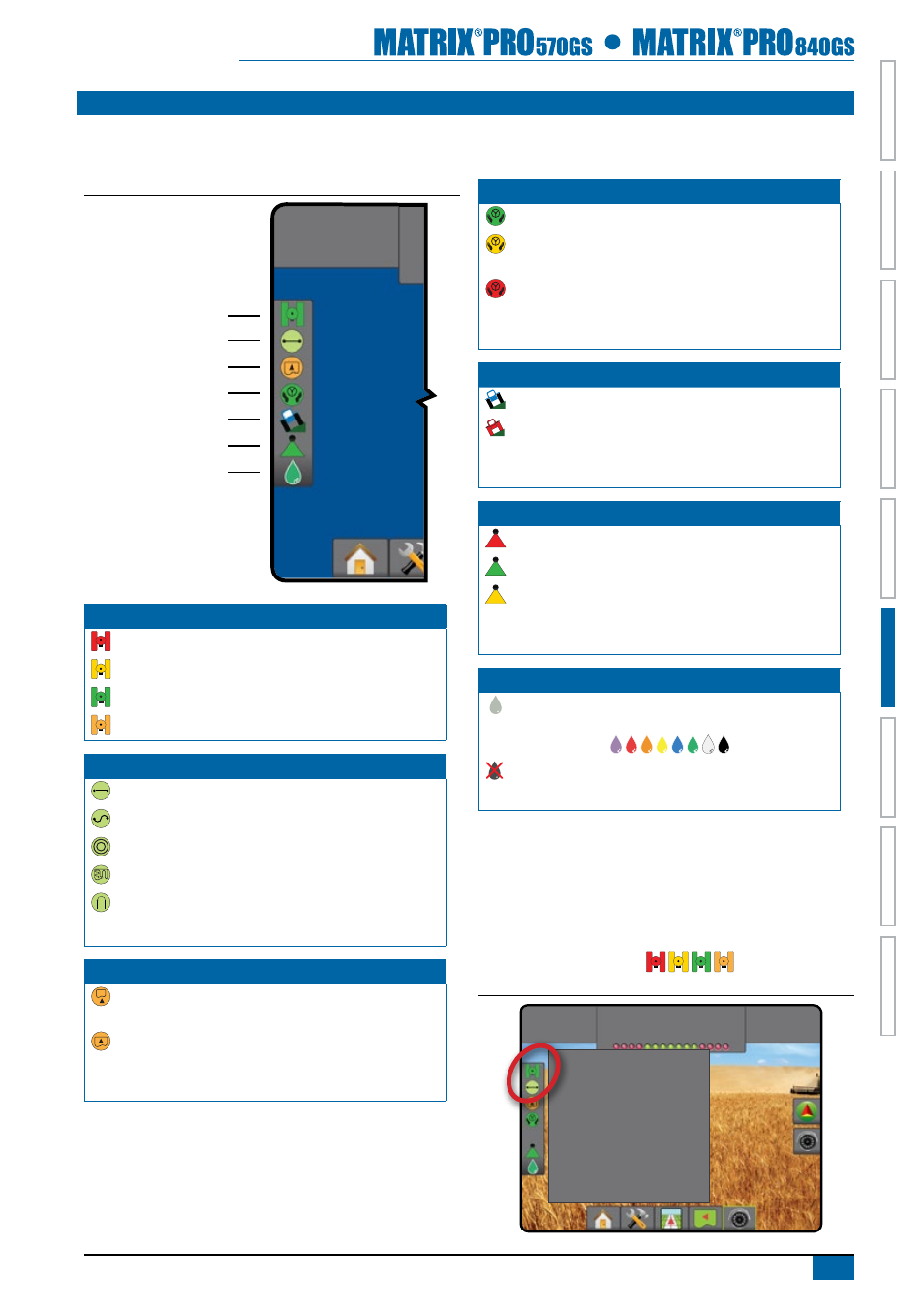

StatuS Bar
The status bar provides information on GPS status, guidance mode, boundary area, assisted/auto steering engagement, tilt correction
information, implement control status and droplet size information.
Figure 6-3: Status bar
Tilt correction status
BoomPilot status
Droplet/pressure status
GPS status
Guidance mode
Bounded area status
Assisted/auto steering status
Gps status
Red = no GPS
Yellow = GPS only
Green = DGPS,WAAS/RTK, GLONASS
Orange = Glide/ClearPath
Guidance mode
Straight AB guidance
Curved AB guidance
Circle pivot guidance
Last pass guidance
NextRow guidance
No icon = no guidance
bounded area status
Outside boundary = currently traveling outside bounded
area
Inside boundary = currently traveling inside bounded
area
No icon = no boundary established
Assisted/auto steering status
Green = engaged, actively steering
Yellow = enabled, all conditions have been met to allow
for assisted/auto steering
Red = disabled, all conditions have not been met to
allow for assisted/auto steering.
No icon = no assisted/auto steering system installed
Tilt correction status
Coloured = engaged, actively applying tilt correction
Red = disabled
No icon = no tilt gyro module installed on system or tilt
is associated with assisted/auto steering system
boompilot status
Red = off/manual
Green = automatic
Yellow = all on
No icon = single boom section (no SmartCable or SDM
installed on system)
droplet/pressure status
Coloured = engaged. The colour of the droplet is
directly associated with the current droplet size. Colour
options include:
Crossed out = disabled
No icon = no pressure sensor interface kit is installed
status/information screens
GPS status
GPS status displays information regarding data rates, number of
satellites in view, and satellite quality and ID.
1. Press GPS STATUS icon :
Figure 6-4: GPS status
27.00
ha
10.0
km/h
Mark A
GGa rate: 5 Hz
VtG rate: 5 Hz
nummber of satellites: 10
HdOP: 1
Prn: 135
GGa quality: 2
receiver: 1
receiver version:
utM zone: 12
