TeeJet spreader implement type
1. Select Spreader implement type on implement screen.
2. Press NEXT PAGE arrow .
3. Select from:
►Setup type – used to select
TeeJet
spreader type
►Antenna to disks  – used to enter the distance from the
GPS antenna to the delivery disks or dispersal mechanism.
Range is 0.0 to 50.0 metres.
►Overlap – used to select the amount of overlap allowed
when the sections are turned on and off while using
automatic boom section control
►Delay on time – used to set the time when each section
will switch on when entering an area that has not been
applied. If the application turns on too soon when entering
an unapplied area, decrease the delay on time. If the
application turns on too late, increase the delay on time.
Range is 0 to 10 seconds.
►Delay off time – used to set the time when each section will
switch off when entering an area that has been applied. If
the application turns off too soon when entering an applied
area, decrease the delay off time. If the application turns
off too late, increase the delay off time. Range is 0 to
10 seconds.
►Spread offset distance  – used to enter the offset
distance from the disks, or dispersal mechanism, to where
product initially hits the ground on Section 1. Range is
0.0 to 75.0 metres.
►Section offset  – used to enter the offset distance from
the leading edge of Section 1 (the spread offset line) to
the leading edge of each section. Section 1 is always
0.0 metres. All other sections can be a different distances.
Sections are numbered from left to right while facing in the
machine's forward direction. Range is 0.0 to 75.0 metres.
►Spread length  – used to enter the length of the
application section for each section. Each section can be
a different length. Sections are numbered from left to right
while facing in the machine's forward direction. Range is
0.0 to 75.0 metres.
4. Press RETURN arrow to return to the implement screen
or CONFIGURATION side tab to return to the main
configuration screen.

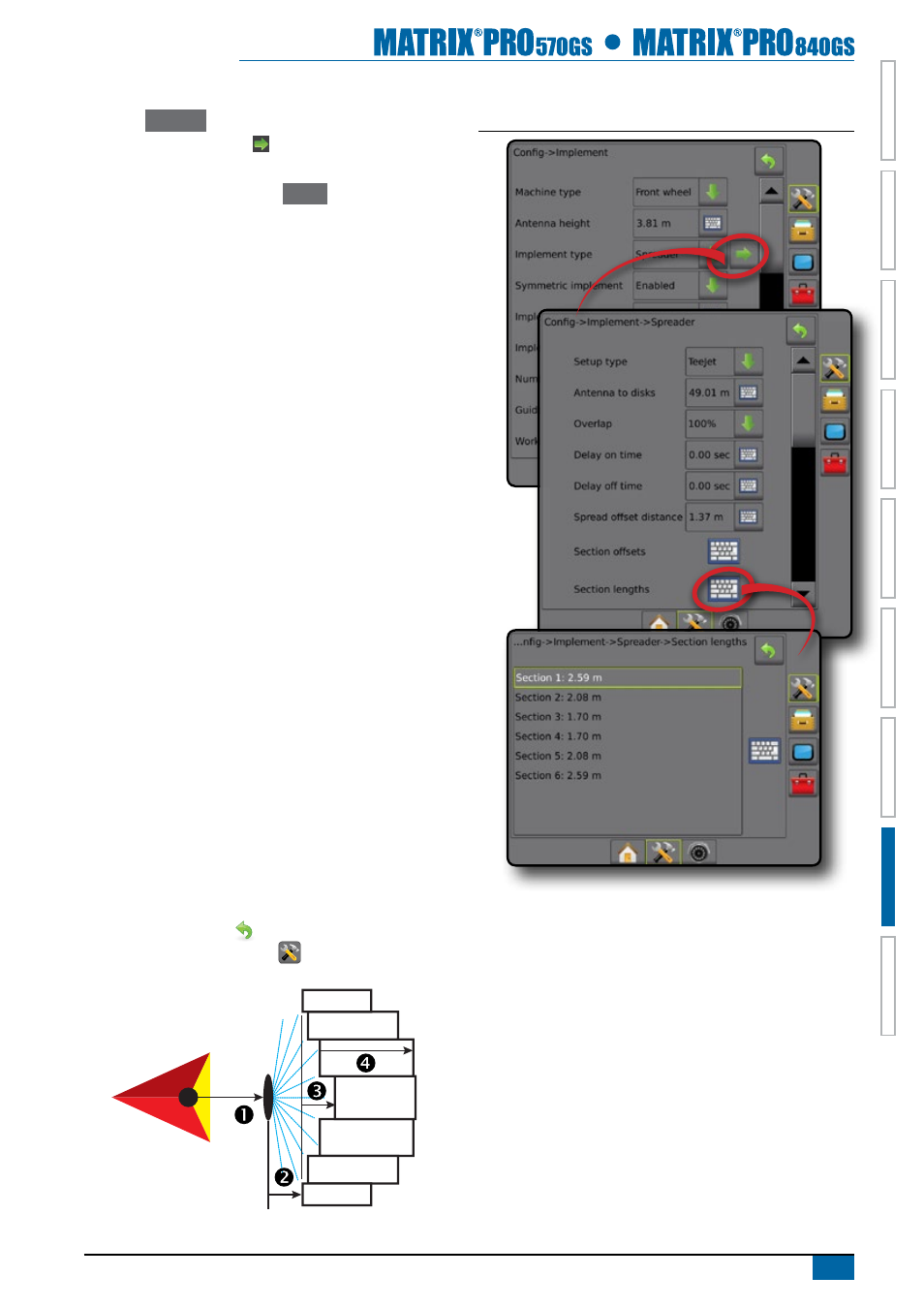

Figure 8-17: Implement setup options in TeeJet spreader mode
