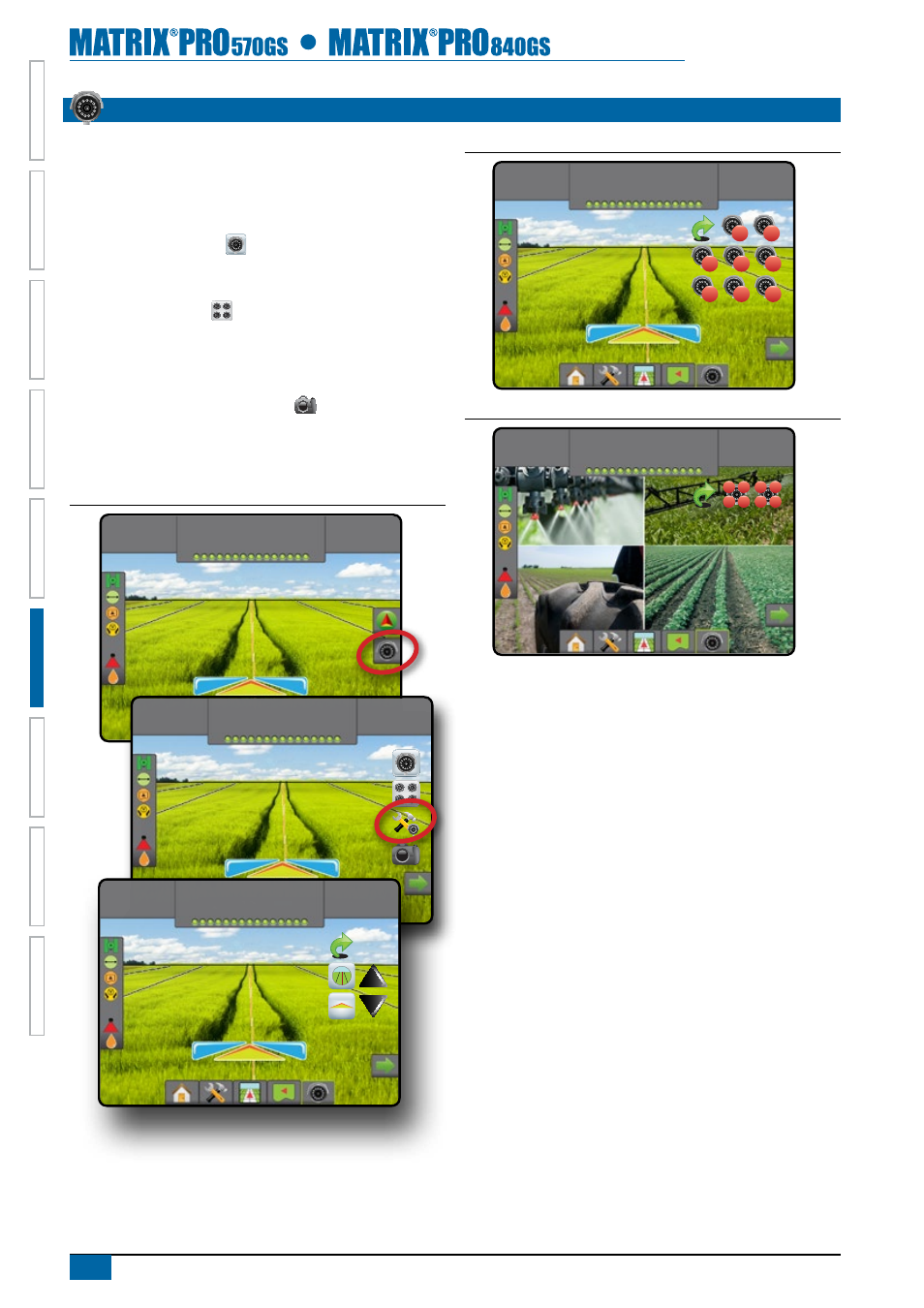

realView SPeCifiC OPtiOnS
RealView guidance allows live video input to be displayed instead
of a computer-generated image.
If a Video Selection Module (VSM) is installed on the system,
two (2) video options are available:
►Single camera view – one (1) of up to eight (8) camera
inputs can be selected to change the view of the video
input.
►Split camera view – one (1) of two (2) sets of four (4)
camera inputs (A/B/C/D or E/F/G/H) can be selected to
divide the screen into four separate video feeds.
Also available is:
►RealView camera image capture – saves a still photo
of the current view on the screen to a USB drive
RealView guidance options also include guidance over video, a
steering angle indicator and camera image capture.
Figure 6-44: RealView options
0.0
km/h
0.00
ha
> 0.0 <
0.0
km/h
0.00
ha
> 0.0 <
0.0
km/h
0.00
ha
> 0.0 <
Figure 6-45: Single camera selection
0.0
km/h
0.00
ha
> 0.0 <
A B
C D E
F G H
Figure 6-46: Select split view
0.0
km/h
0.00
ha
> 0.0 <
A
D
B
C
F
H
E
G
