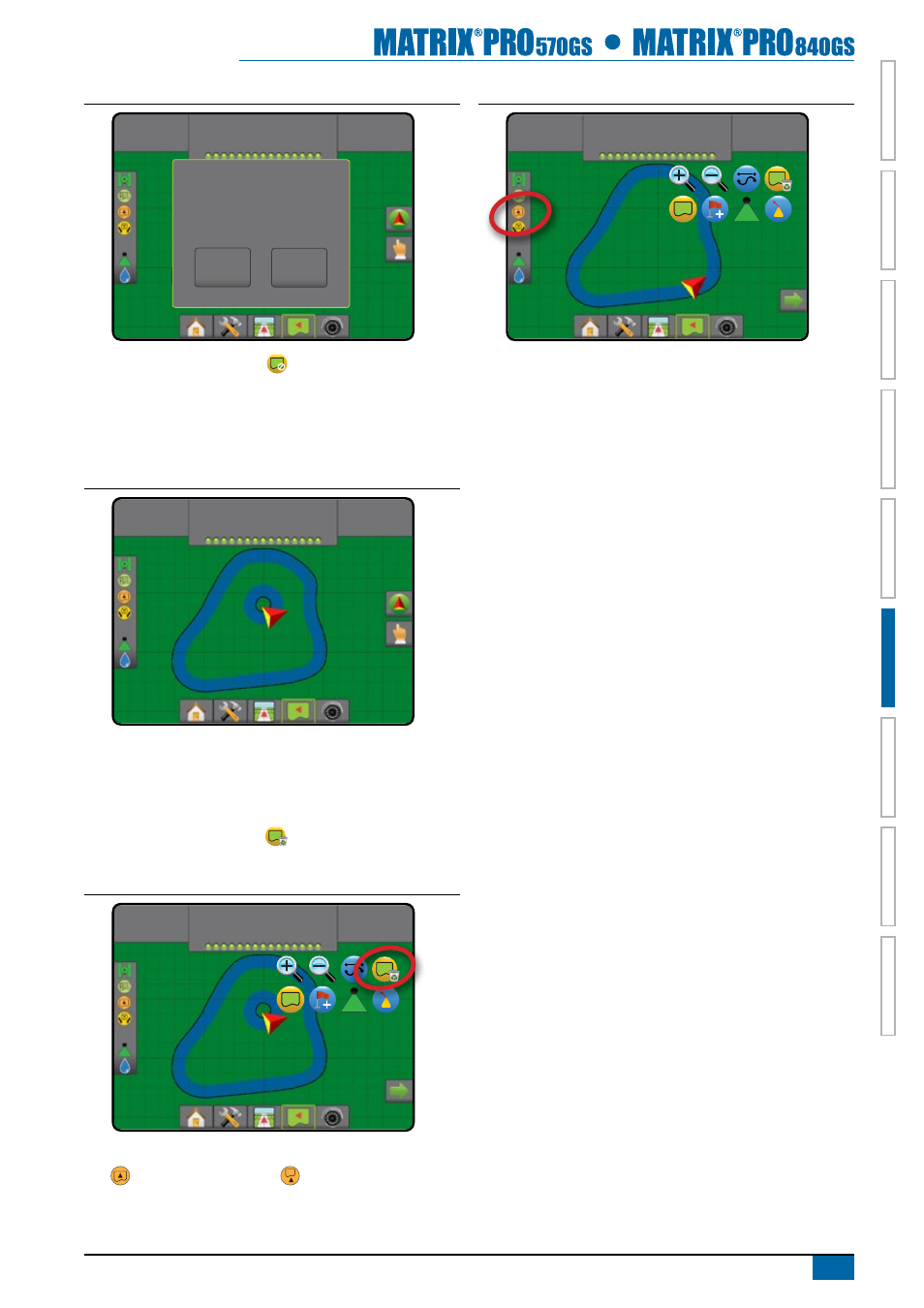

Figure 6-33: Save boundary
4.68
ha
7.2
km/h
Mark A
area bounded = 64.45 ha
would you like to save the marked
boundary?
Save delete
Use CANCEL BOUNDARY icon to cancel the new field
boundary process and revert to the previous boundary (when
established).
To establish one or more interior boundaries, follow the same
steps as the initial boundary.
Figure 6-34: Add interior boundary
5.48
ha
7.2
km/h
Mark A
While creating an external or initial boundary, the boundary line will
be to the exterior of the outer most boom section. While creating
an interior or additional boundary, the boundary line will be to the
interior of the inner most boom section.
Use DELETE BOUNDARY icon
to delete all field boundaries
for the current job.
Figure 6-35: Finish boundary – Travel to starting point
5.48
ha
7.2
km/h
Mark A
In correspondence to your current location, the IN BOUNDARY
icon or OUT BOUNDARY icon is displayed on the status
bar once the boundary is established.
Figure 6-36: Finish boundary – Travel to starting point
5.48
ha
7.2
km/h
Mark A
