GettinG Started
#1 Turn power on
Press the POWER button to power on the console.

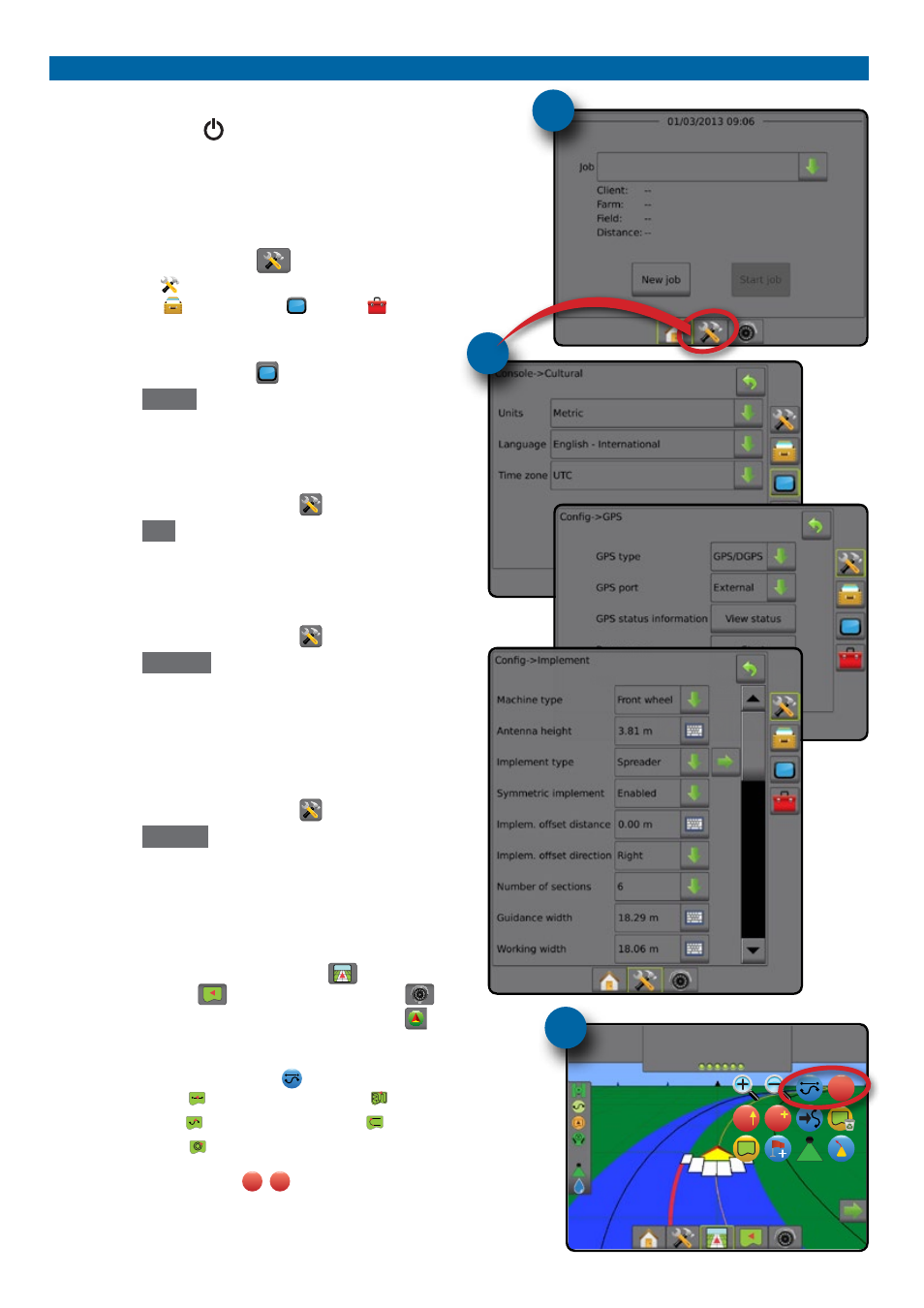

#2 Home screen
Once the power up sequence has completed, the Home screen will
appear with the option to start a new job or continue an existing job.
#3 Go to unit setup
1. Press UNIT SETUP bottom tab .
The Configuration options will be displayed first.
Data management , Console settings and Tools can be
accessed through the side tab keys.
Cultural setup
2. Press CONSOLE side tab .
3. Press
Cultural
.
Culture is used to configure units, language and time zone
settings.
GPS setup
1. Press CONFIGURATION side tab .
2. Press
GPS
.
GPS is used to configure GPS type, GPS port and PRN as well
as to view GPS status information.
Implement setup
1. Press CONFIGURATION side tab .
2. Press
Implement
.
Implement setup is used to establish the various settings
associated with straight mode, spreader mode or staggered
mode. Settings will vary depending on if a SmartCable or Section
Driver Module (SDM) is present.
AutoSteer setup
1. Press CONFIGURATION side tab .
2. Press
AutoSteer
.
When a Steering Control Module (SCM) is present, assisted/auto
steering options will be available. For detailed setup instructions,
refer to your specific assisted/auto steering installation manual.
#4 Go to guidance screen
1. Press VEHICLE VIEW GUIDANCE tab , FIELD VIEW
GUIDANCE tab or REALVIEW GUIDANCE tab .
2. Press NAVIGATION AND GUIDANCE OPTIONS tab to
display navigation options.
Choose a guidance mode
►Straight AB
►Curved AB
►Circle Pivot ►Last Pass
►NextRow
Mark A and B points A B
To establish a AB guideline.
#3
#2
10.0
km/h
27.00
ha
> 0.0 <
A
A A
#4
