Setting
Can be edited in Saved to exported profile in
Matrix Pro GS FieldWare Link Matrix Pro GS FieldWare Link
Lightbar    
GPS    
Video    
Sensors – Pressure:
Maximum pressure rating
Low pressure alarm
High pressure alarm


 

 

 


Droplet size
monitor
– Enabled/disabled
Nozzle selection

 
 
 

COnSOle
Console setup is used to configure the display and cultural
settings. Information about other devices attached to the system
can be found in the About section.
1. Press UNIT SETUP bottom tab
.
2. Press CONSOLE side tab .
3. Select from:
►Display – used to configure colour scheme and LCD
brightness, establish screenshot availability and calibrate
the touchscreen
►Cultural – used to configure units, language and time zone
settings
►Audio volume – used to adjust the volume level of the audio
speaker
►Demo mode – used to start playback of simulated GPS
data.
►About – used to display the system software version as well
as the software versions of modules connected to the CAN
bus and display QR code for direct link to user manuals

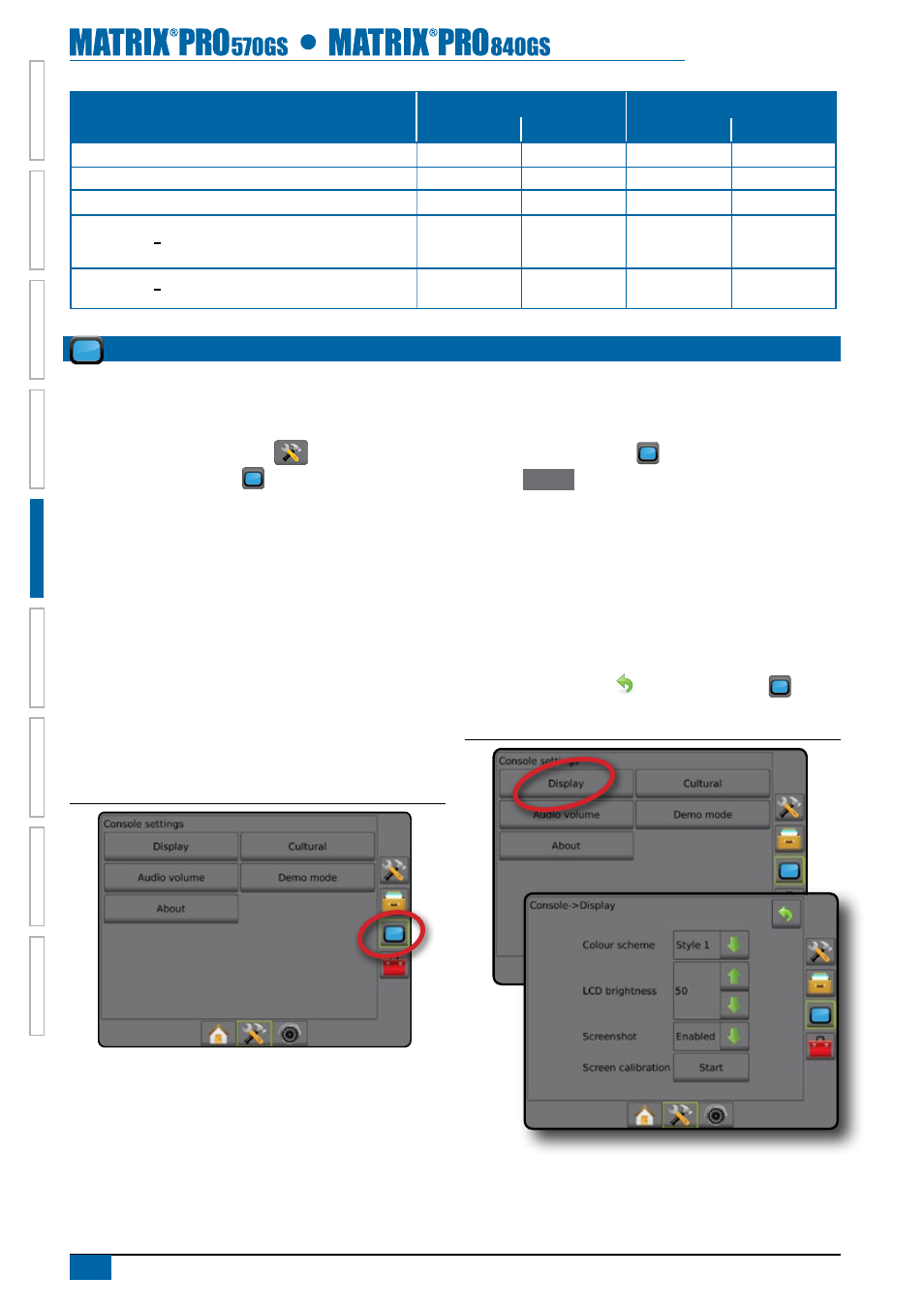

Figure 5-34: Console options
display
Display is used to configure colour scheme and LCD brightness,
establish screenshot availability and calibrate the touchscreen.
1. Press CONSOLE side tab
.
2. Press
Display
.
3. Select from:
►Colour scheme – used to change the background and text
colours on the display
►Brightness – used to adjust the brightness of the console
display
►Screenshot – used to allow screen images to be saved to a
USB drive
►Calibrate – used to force a touch screen calibration
4. Press RETURN arrow or CONSOLE side tab to
return to the main Console Settings screen.
Figure 5-35: Display options
