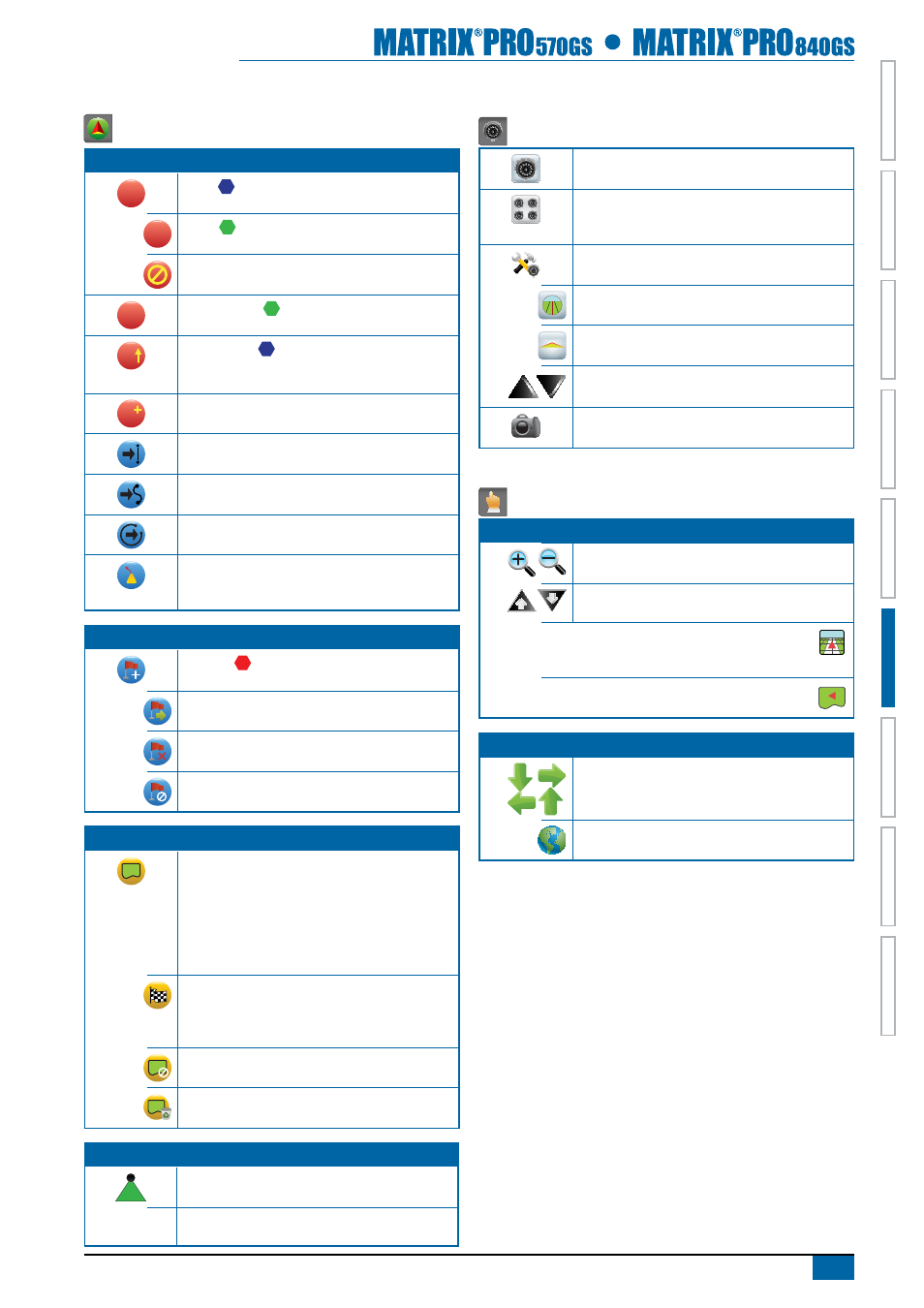

Navigation screens options
Navigation and guidance options
Guidelines
A Mark A – marks the first point of the guideline.
B Mark B – marks the end point of the guideline.
Greyed = minimum distance has not been travelled.
Cancel Mark A – cancels the Mark A process. Reverts to
previous AB guideline (when established).
B NextRow Mark B – marks the end point of the row.
A
Azimuth degree – establishes a straight guideline
measured by degrees clockwise from a north base line.
North = 0, East = 90, South = 180, West = 270.
A
A+ nudge – shifts the existing guideline to the vehicle’s
current position.
Next Straight AB or Azimuth degree guideline – shows the
next straight guideline saved in the current job.
Next Curved AB guideline – shows the next Curved AB
guideline saved in the current job.
Next Circle pivot guideline – shows the next Circle pivot AB
guideline saved in the current job.
Curved lookahead – provides an indication of where the
current steering will take the vehicle using a ‘pointer’ as
guidance.
Return to point
Mark point – establishes a point at the vehicle location.
Greyed = GPS is unavailable.
Return to point guidance – provides distance and guidance
back to an established point.
Delete point – deletes the marked point.
Cancel guidance – hides the distance and guidance back
to the marked point.
boundaries
Mark boundary – establishes application area and
determines no apply zones. While creating an external or
initial boundary, the boundary line will be to the exterior
of the outer most boom section. While creating an interior
or additional boundary, the boundary line will be to the
interior of the inner most boom section. Greyed = GPS is
unavailable.
Finish boundary – finalizes boundary process. Boundaries
can also be closed by travelling to within a swath width of the
starting point. Greyed = minimum distance has not been
travelled.
Cancel boundary – cancels the new mark boundary
process. Reverts to previous boundary (when established).
Delete boundary – deletes all established boundaries from
current job.
boompilot
Single section – turns all booms on or off . Greyed = GPS
is unavailable.
SmartCable/SDM – selects BoomPilot mode. Greyed =
GPS is unavailable.
RealView guidance options
Video camera select – selects one of up to eight camera
views if a Video Selection Module (VSM) is attached.
Split camera view – selects one of two sets of four camera
inputs (A/B/C/D or E/F/G/H) to divide the screen into four
separate video feeds.
Guidance over video setup – access to turn on Guidance
Over Video or Steering Angle and adjust guidelines.
Guidance over video – places three-dimensional guidelines
over the video feed for navigational assistance.
Steering angle – displays the direction in which the steering
wheel needs to be adjusted.
Up & down icons – used to adjust the guidance lines and
horizon line to match the camera’s view.
Camera image capture – saves a still photo of the current
view on the screen to a USB drive.
Screen options
zoom in/out
Icons – to be used on the Matrix Pro 570GS
Buttons – to be used on the Matrix Pro 840GS
Vehicle view – icons or buttons adjust the vehicle’s view
or perspective to the horizon from vehicle view to bird’s
eye view.
Field view – icons or buttons increase/decrease the area
displayed on the screen.
pan
Arrows – allows operator to focus on specific map
areas without moving the vehicle. Move the view in the
corresponding direction.
World View – extends screen view to the widest area
available.
