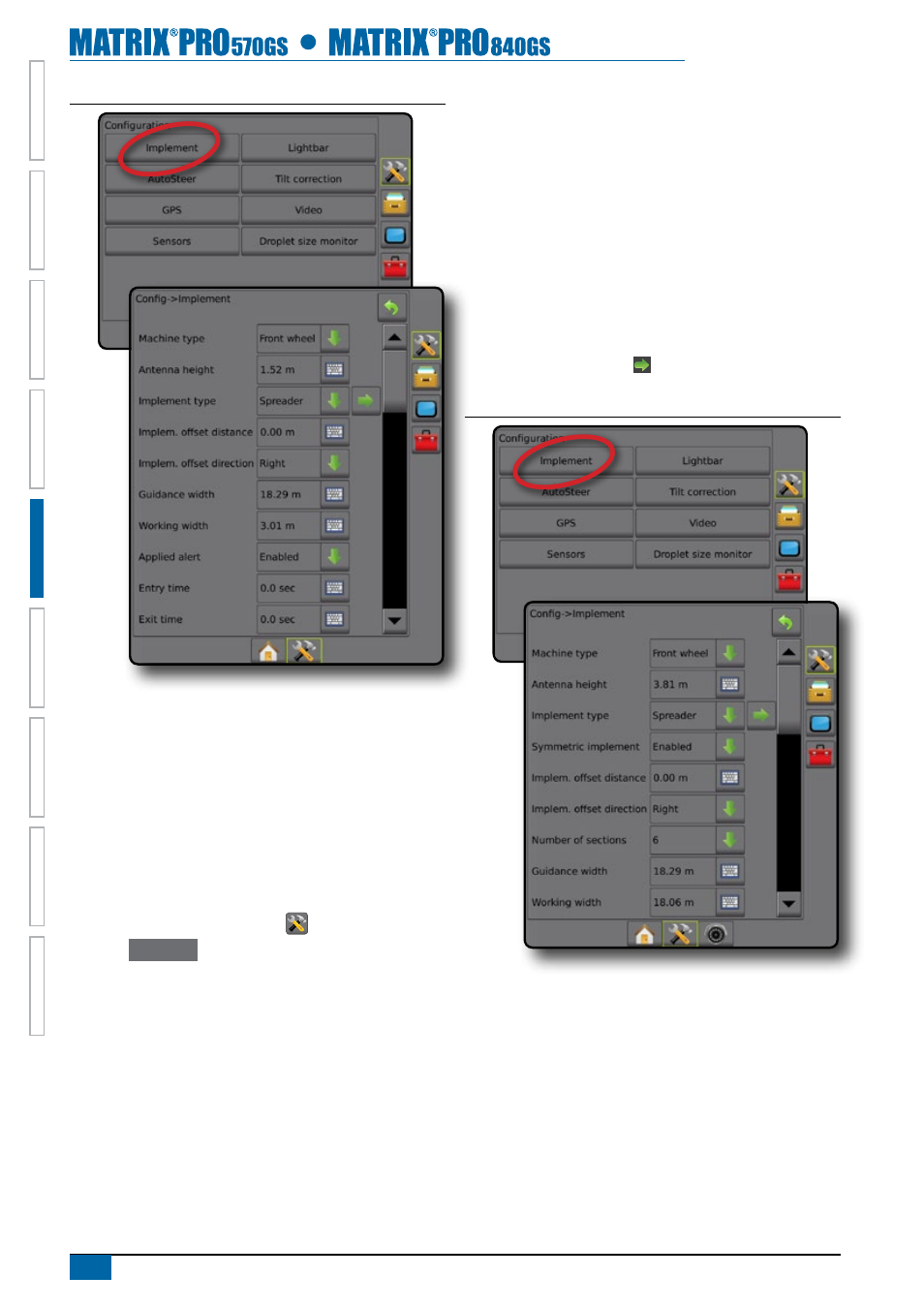

Figure 5-7: Implement
SmartCable or Section Driver Module setup
SmartCable or Section Driver Module setup is used when a
SmartCable or Section Driver Module (SDM) is on the system.
The boom or delivery area can be entered as up to 15 sections.
Each section can vary in width and in spreader mode, can vary in
length. Additional options available with a SDM include application
overlap, application delay and staggered mode.
NOTE: If a SmartCable or Section Driver Module (SDM) is not
present, refer to "Single section setup" to view setup
steps.
1. Press CONFIGURATION side tab .
2. Press
Implement
.
3. Select from:
►Machine type – used to select the type of machine that
most closely represents your machine.
►GPS antenna height – used to measure the height of the
antenna from the ground
►Implement type – used to select the layout of the sections
for the applied product location.
►Symmetric implement layout – used to establish if sections
are paired and therefore share the same width, offset and
length values
►Implement offset distance – used to enter the distance from
the centreline of the machine to the centre of the implement
►Implement offset direction – direction from the centreline of
the machine to the centre of the implement while facing in
the machine's forward direction
►Number of implement sections – used to select the number
of implement sections
►Guidance width – used to enter the distance between the
guidelines
►Application width [Straight implement type or Staggered
implement type] – used to enter the total width of all
sections of the implement
►Working width [Spreader implement type] – used to enter
the total width of all sections of the implement
4. Press NEXT PAGE arrow to set up the selected specific
implement type's options.
Figure 5-8: Implement
