droplet size monitor
When a pressure sensor interface kit is present, droplet size
monitor is used to enable/disable the droplet size monitor (DSM),
preset up to five (5) nozzles and select the current nozzle.
1. Press CONFIGURATION side tab
.
2. Press
Droplet size monitor
.
3. Select if droplet size monitor is enabled or disabled.
4. When enabled, select from:
►Nozzle presets – selects up to five (5) nozzles for quick
recall
►Current nozzle – selects the current nozzle for determining
droplet size information
5. Press RETURN arrow or CONFIGURATION side tab
to return to the main Configuration screen.

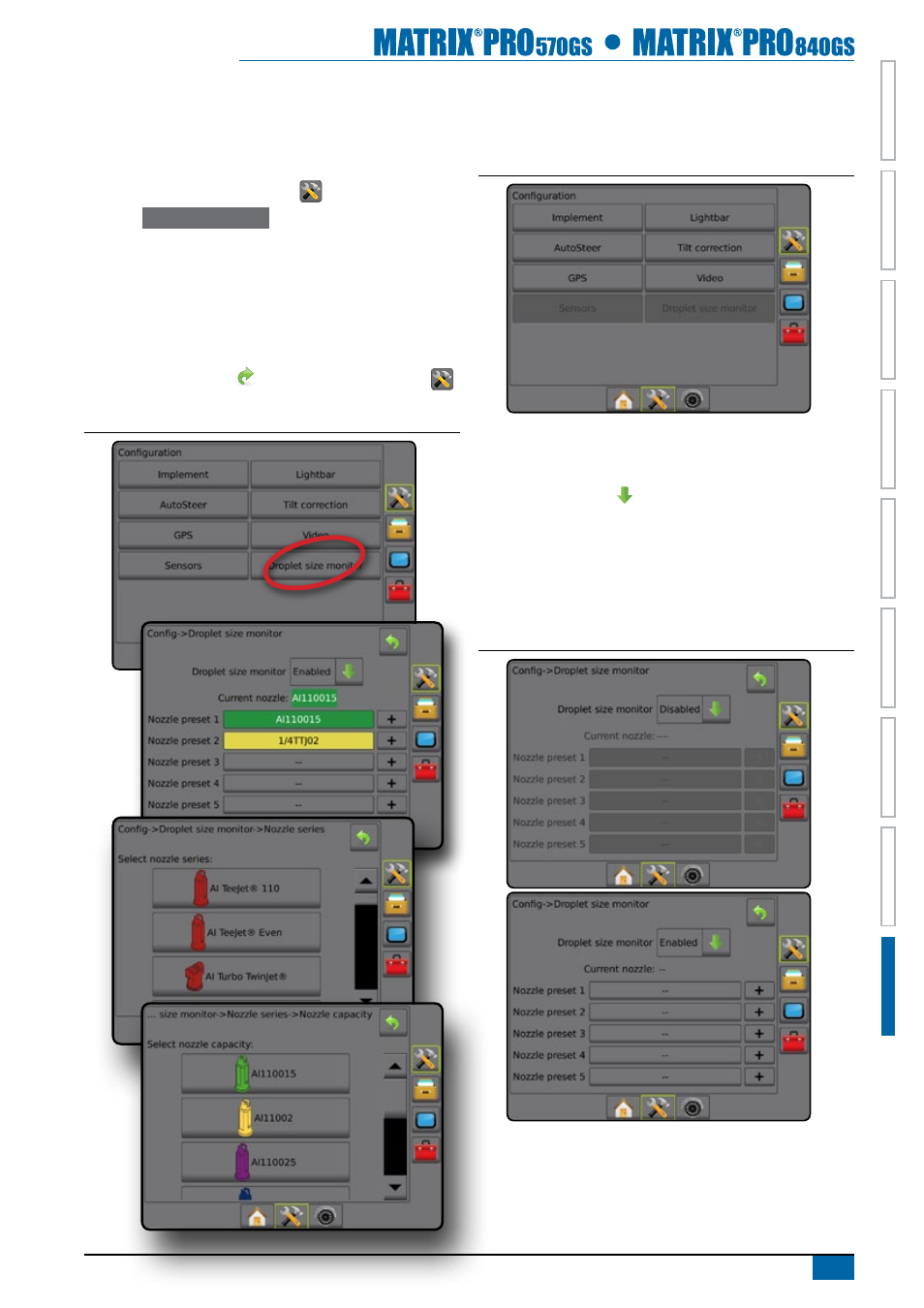

Figure 9-2: Droplet size monitor and nozzles
Droplet size monitor unavailable
If a pressure sensor interface kit is not installed, setup options will
not be available.
Figure 9-3: Pressure sensor interface kit not detected
Enable/disable droplet size monitor
Set droplet size monitor (DSM) to enabled or disabled.
1. Press DOWN arrow to access the list of options.
2. Select:
►Enabled
►Disabled
If DSM is set to “disabled”, all nozzle capabilities and setup
functions will be disabled (options will be grayed out).
Figure 9-4: Disabled and enabled DSM options
