►Delay on time – used to set the time when each section
will switch on when entering an area that has not been
applied. If the application turns on too soon when entering
an unapplied area, decrease the delay on time. If the
application turns on too late, increase the delay on time.
Range is 0 to 10 seconds.
►Delay off time – used to set the time when each section will
switch off when entering an area that has been applied. If
the application turns off too soon when entering an applied
area, decrease the delay off time. If the application turns
off too late, increase the delay off time. Range is 0 to
10 seconds.
►Section offsets  – used to set the offset distance from
Section 1 (the antenna to Section 1 distance line) to each
section. Positive offset value will move the section behind
Section 1. Negative offset value will move the section
in front of Section 1. Section 1 is always 0 metres. All
other sections can be a different distances. Sections are
numbered from left to right while facing in the machine's
forward direction. Range is -75.0 to 75.0 metres.
4. Press RETURN arrow to return to the implement screen
or CONFIGURATION side tab to return to the main
configuration screen.

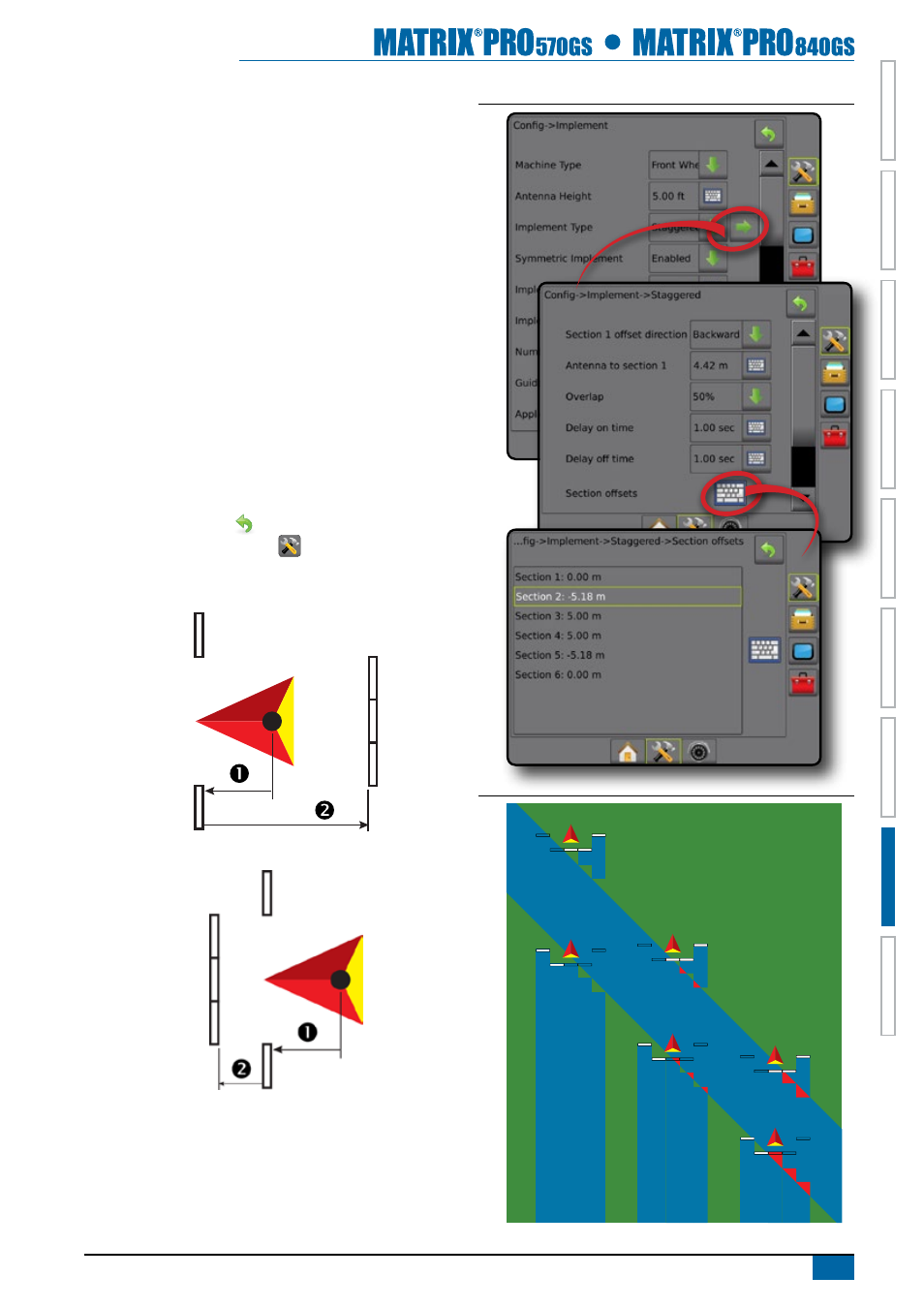

Figure 8-20: Implement setup options in staggered mode
Figure 8-21: Overlap
100% 50% 0%
