naViGatiOn SCreenS
Matrix Pro GS guidance and navigation can be accessed from the Vehicle view screen, Field view screen or RealView screen.
• Press NAVIGATION AND GUIDANCE OPTIONS tab to display navigation options
• Press REALVIEW OPTIONS tab to display camera setup and guidance options

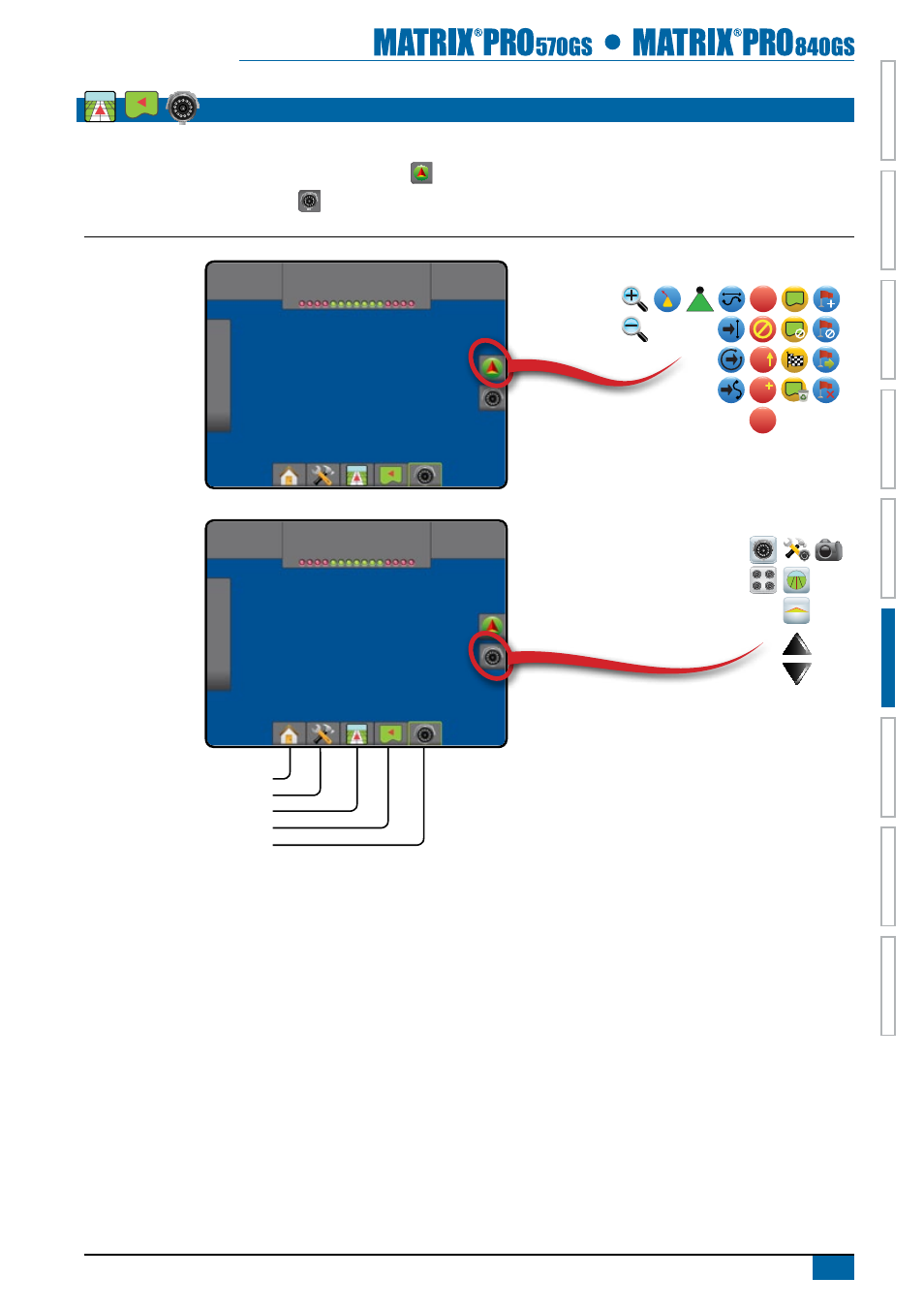

Figure 6-11: Guidance screen options
12
deg
-13 > 0.0 <
12
deg
-13 > 0.0 <
RealView guidance
Field view guidance
Vehicle view guidance
Unit setup
Home/job screen
(or press Home button)
A
A
A
B
Navigation and guidance options
RealView options
Zoom in/out icons are not available on Matrix Pro 840GS
or on RealView guidance screens
